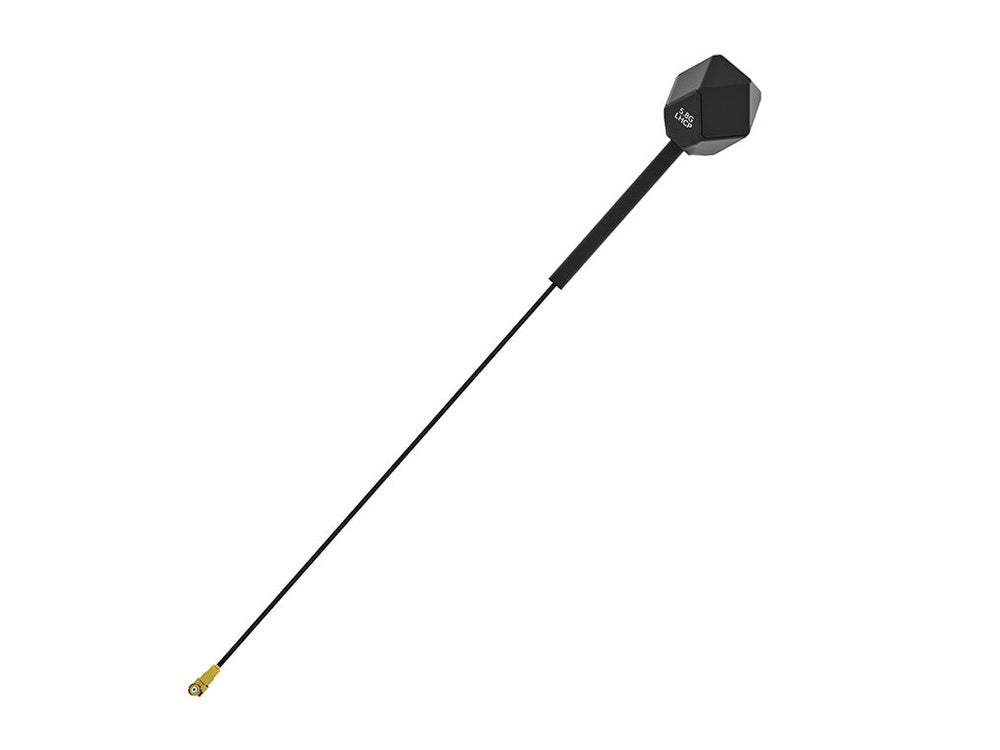

iFlight Albatross V2.1 5.8GHz Antenna UFL
Albatross 5.8GHz V2.1 Antenna for Analog or Digital FPV. The perfect upgrade part for your video transmitter and receiver to avoid buying fragile stock antennas again and again... Available in 170mm length and RHCP/LHCP with UFL connectors.
The antennas are upgraded to version 2.1, using LDS technology, and have more stable performance than V2.
Features:
- A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
- Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
- Achieves higher consistency in antenna gain, thereby improving device performance and stability.
Specifications:
- Model: Albatross 5.8GHz UFL Antenna V2.1
- Connector: ipex/UFL
- Frequency range: 5.3GHz-6GHz
- MAX Gain: 3.02dBi (5500MHz)
- MIN Gain: 2.85dBi (5700MHz)
- AVG Gain: 2.9dBi
- MAX VSWR: 1.76 (6000MHz)
- MIN VSWR: 1.20 (5300MHz)
- AVG VSWR: 1.48
- MAX radiation efficiency: 68.77%（5700MHz)
- MIN radiation efficiency: 65.17% (5300MHz)
- AVG radiation efficiency: 66.51%
- Polarization: RHCP
- Cross polarization suppression: -25dB
- Axial Ratio: ≤3
- Cable: RG141
- Weight: 3g/2.7g/3.4g±0.5g

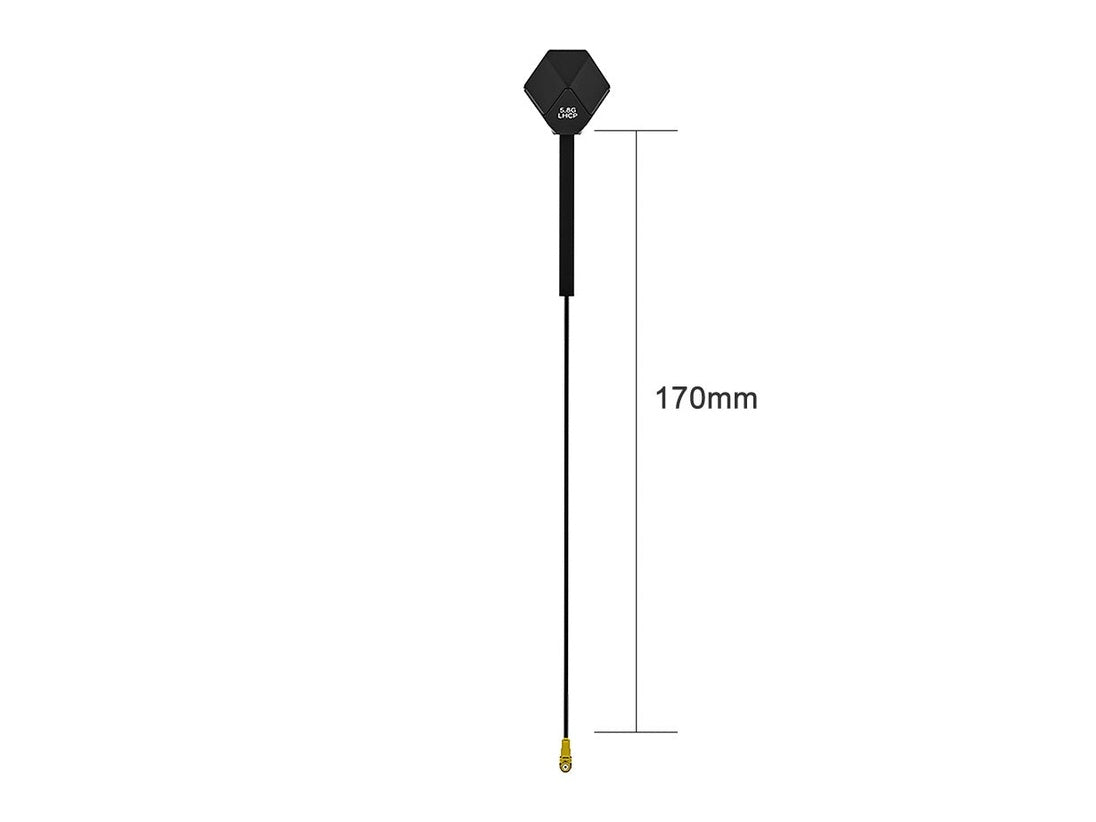

- Length: 195mm (+/- 5mm), Cable Length: 170mm
Includes:
1x iFlight Albatross V2.1 Antenna UFL
