iFlight Nazgul Evoque V2 Frame Kit

  • $89.99
    Unit price per


The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Available in two versions:

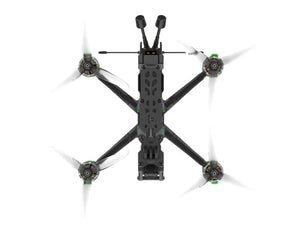

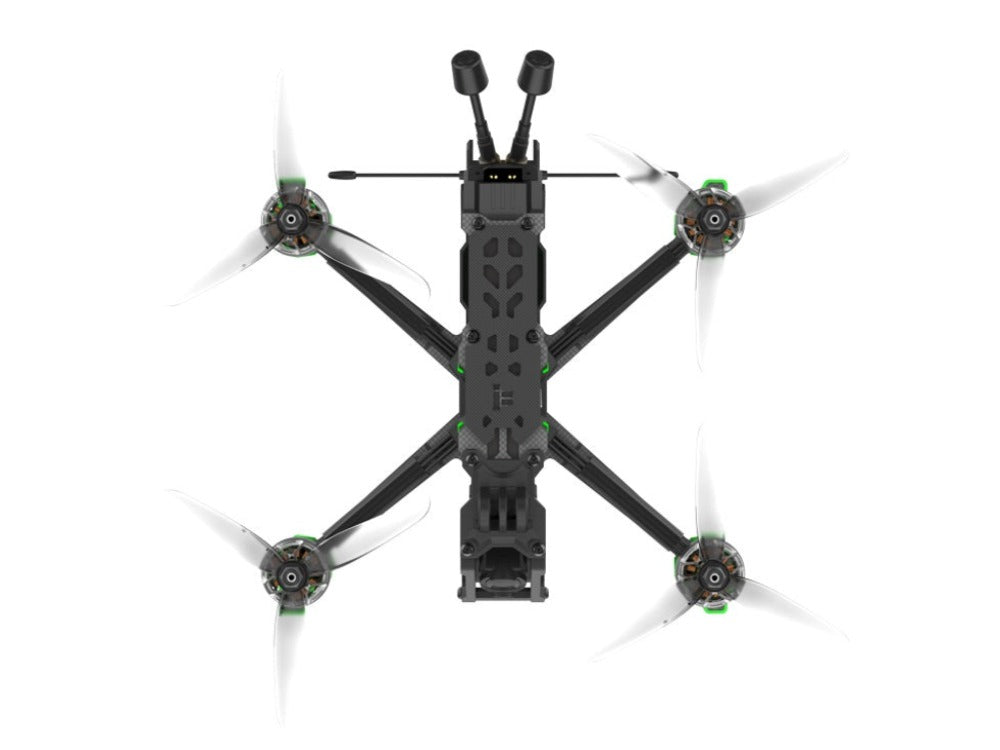

F5X - Squished X Configuration
F5D - Deadcat Configuration


  • V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission
  • Specially Designed Heatsink for DJI O3 Air Unit
  • New Camera Mount for a wider camera FOV with TPU damping inserts
  • New Side Panels to perfectly fit the O3 Air Unit in the back
  • New Dual 5.8G VTX Antenna TPU mount
  • Latest Nazgul Frame Upgrades for Maximum Protection


  • Product Name: Evoque F5 V2 Frame Kit
  • Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)
  • Frame Dimension: L258*W199*H25 mm (Squashed X) / L190*W136*H36 mm (DeadCat)
  • Frame Body Dimension: 36mm
  • Arm Thickness: 6mm
  • Bottom Plate Thickness: 3mm
  • Top Plate Thickness: 2mm
  • Upper Plate Thickness: 3mm
  • Camera Plate Thickness: 3mm
  • Motor Mounting: 16x16mm
  • VTX Mounting: 25.5*25.5/Φ1.6mm
  • Weight: 150grams (Included no TPU Parts)

1x iFlight Nazgul Evoque V2 Frame Kit
1x O3 air Unit Heatsink
2x O3 IPEX to RP-SMA Antenna Pigtails
1x O3 Dual Antenna TPU
1x GoPro TPU Base Mount
1x Screw Bag
4x TPU Armguard
1x Front Bumper TPU
1x Rear Bumper TPU
2x Anti-Slip Battery Pad
2x Battery Strap (20*250mm)
