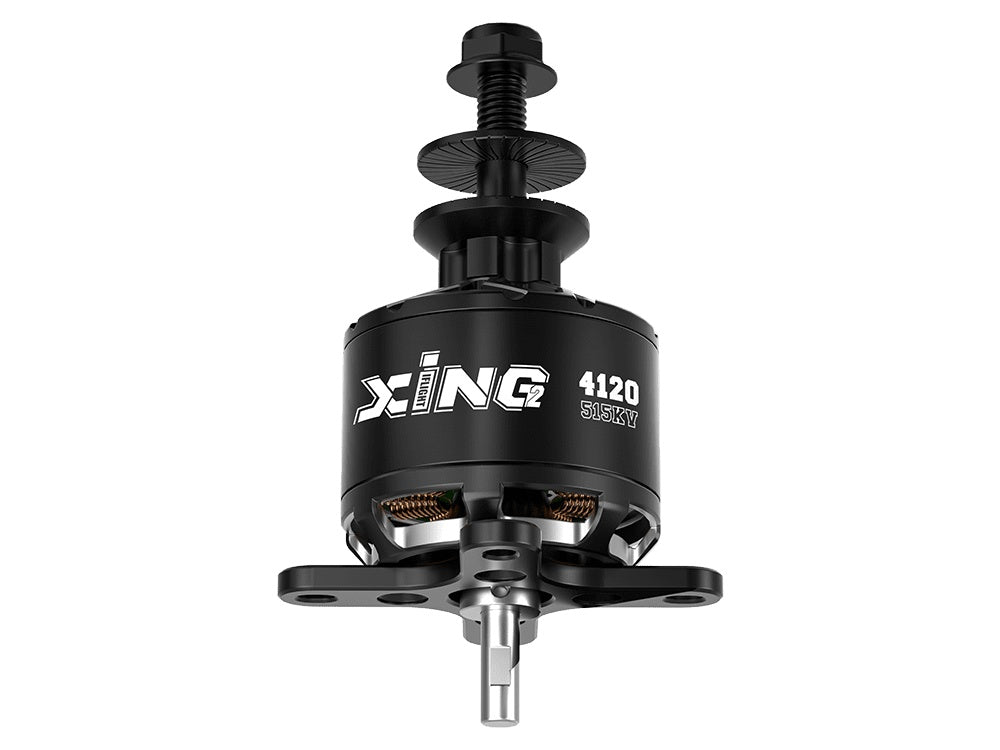

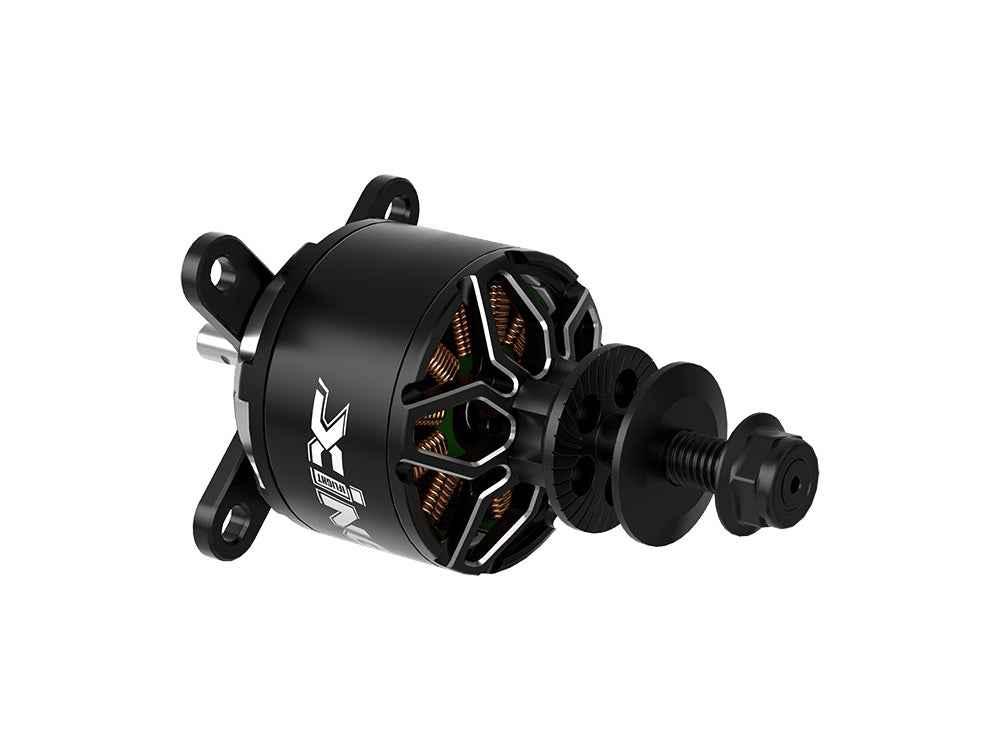

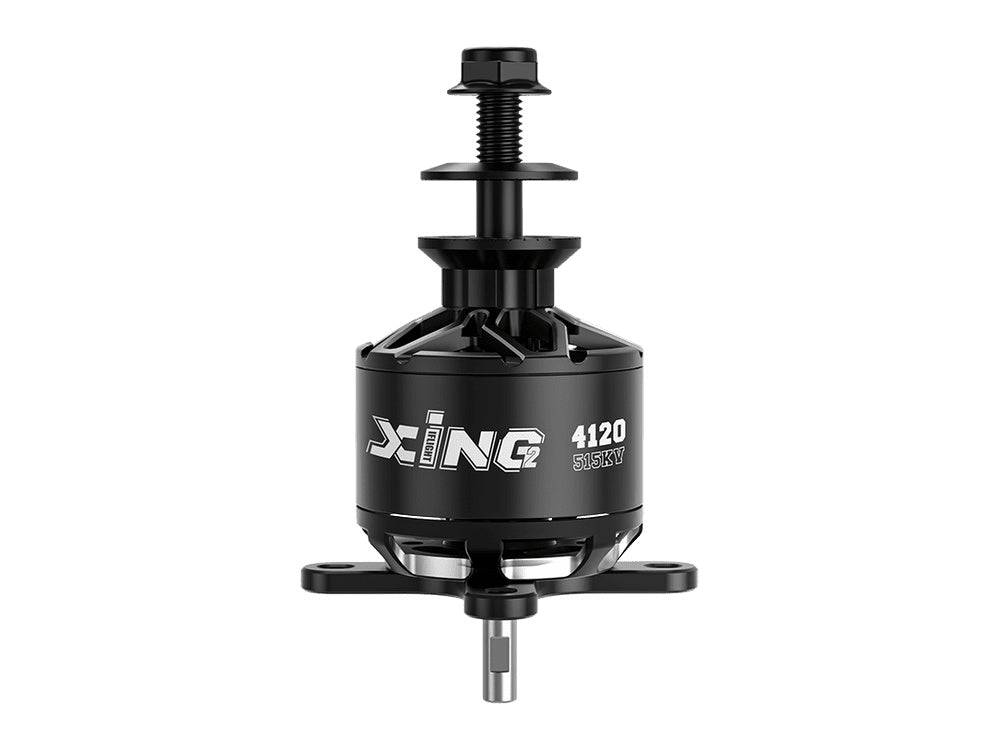

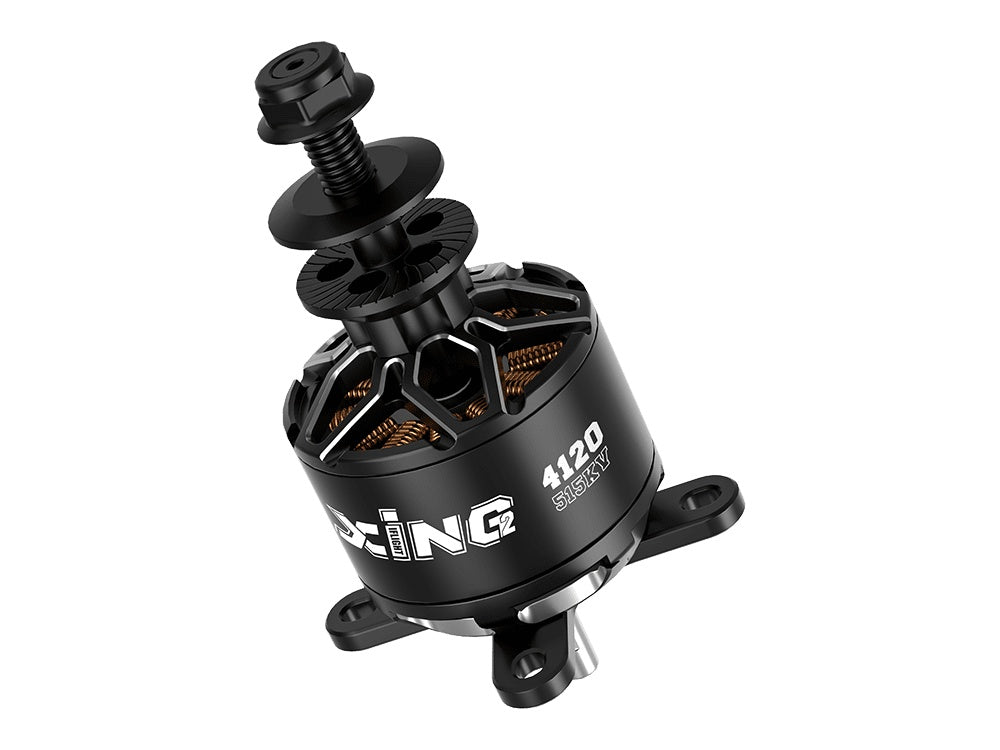

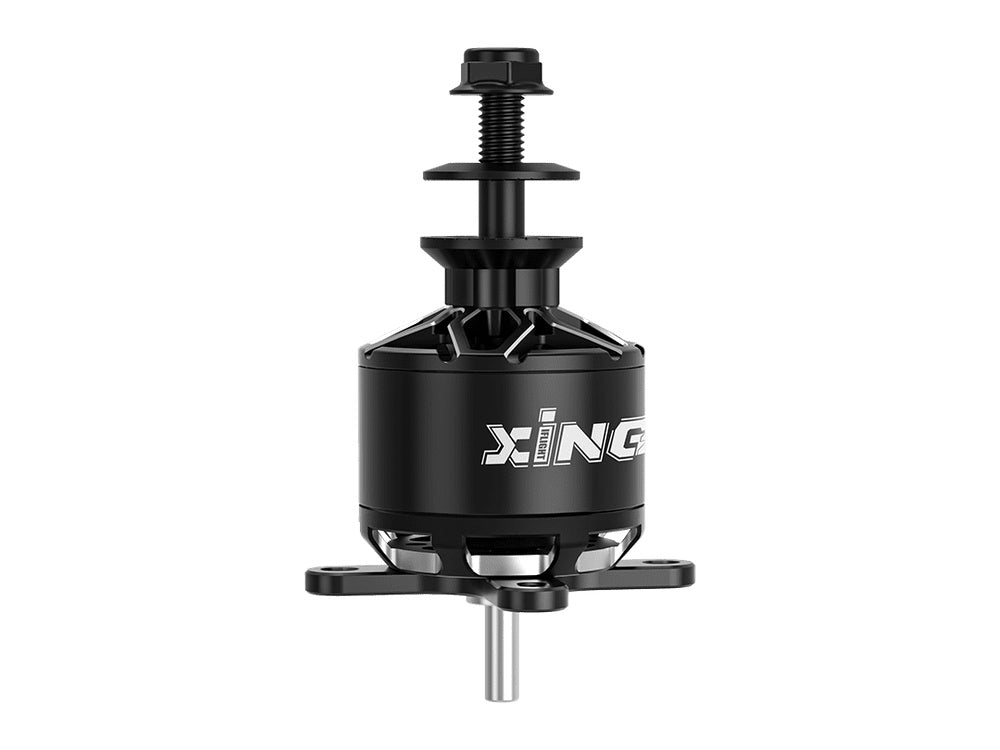

iFlight Xing 2 4120 515KV Wing Motor

The high-quality Xing 2 4120 515KV Wing Motor is designed specifically for fixed-wing drone enthusiasts. Tailored to meet the needs of passionate model aviation hobbyists, this motor provides reliable and efficient power for their drones.

Specifications:

• Model: Xing2 4120
• KV: 515KV
• Weight(included wire): 300g
• Dimension: φ49.5*45mm
• Interphase Resistance: 14.36Ω
• Input Volts: 24V
• Peak Current: 127.76A
• Max Watt: 2950W
• Mounting Holes: 30*30mm φ4mm
• Rotor Specifications: Segmented Bell
• Shaft Diameter: 6mm
• Shaft Protruding Length: 23.5mm
• Lead: 90mm/4.0 Gold Plug
• Magnet: 45SH
• Configuration: 12N14P
• Bearing Type: NSK/NMB
• Bearing Specification: φ12xφ6*4 2PC/φ15xφ6*5 1PC
• Winding: Multi-strand copper winding

Includes:
1x iFlight Xing 2 4120 515KV Wing Motor
1x Prop Adapter
1x Prop Washer
1x Locknut
4x M4 Hexagon Socket Screws
4x M*14 Cup Head Hexagon Socket Screws
1x Aluminum Washer
3x Gold-Plated Female Connectors
3x Heat Shrink Tube
1x Cross Style Motor Mount
