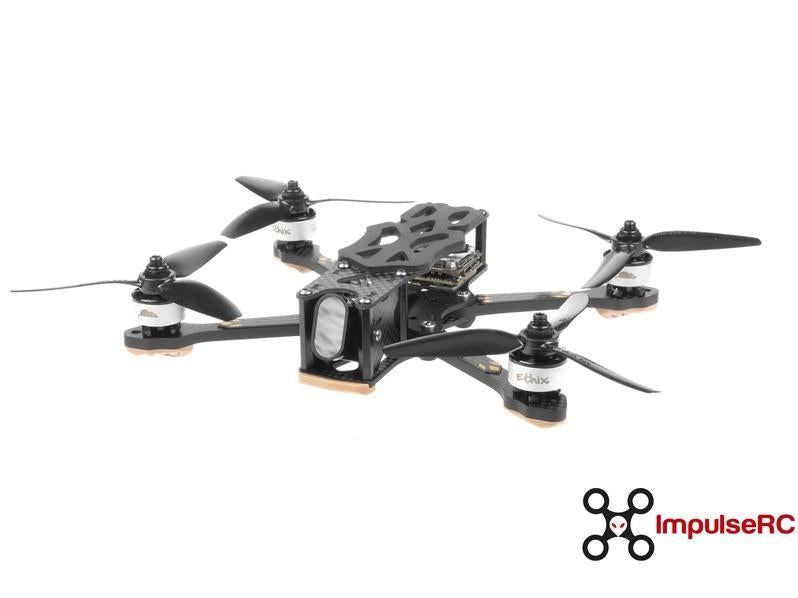

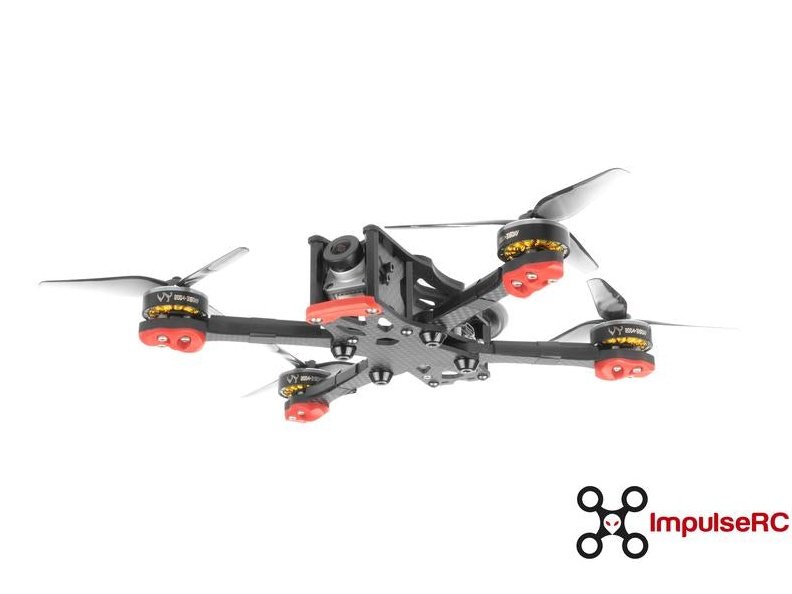

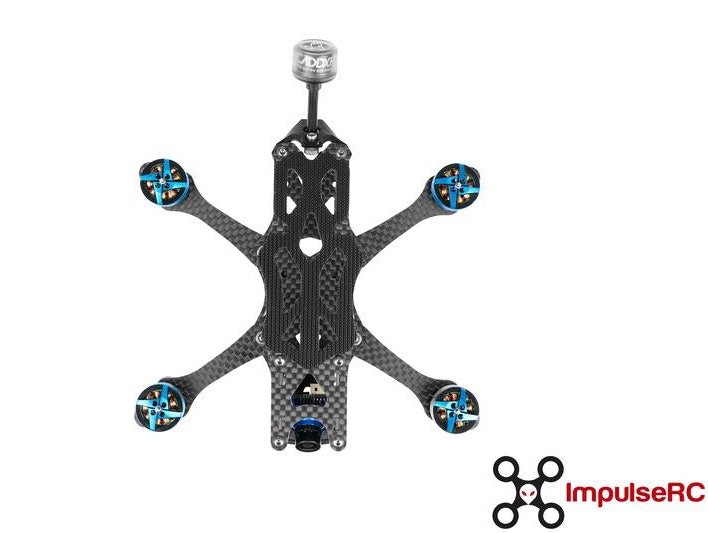

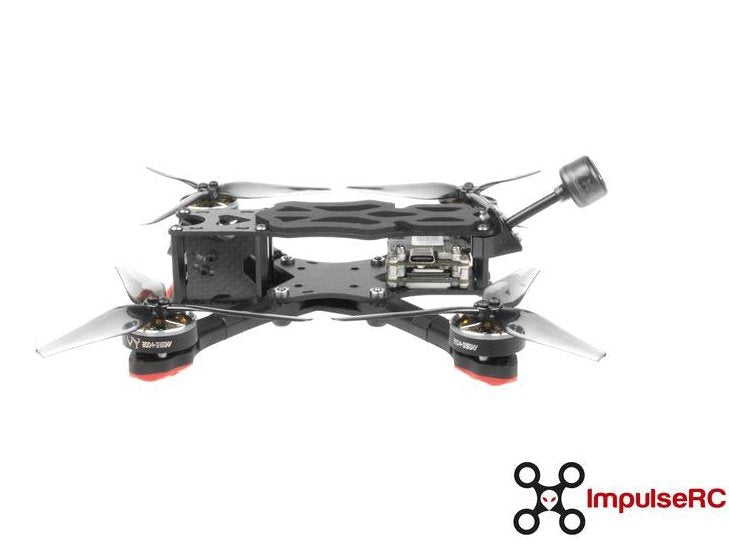

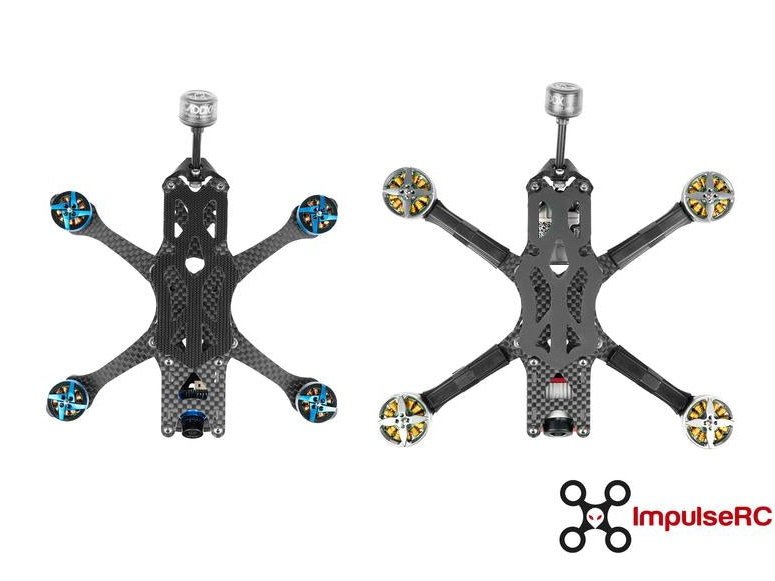

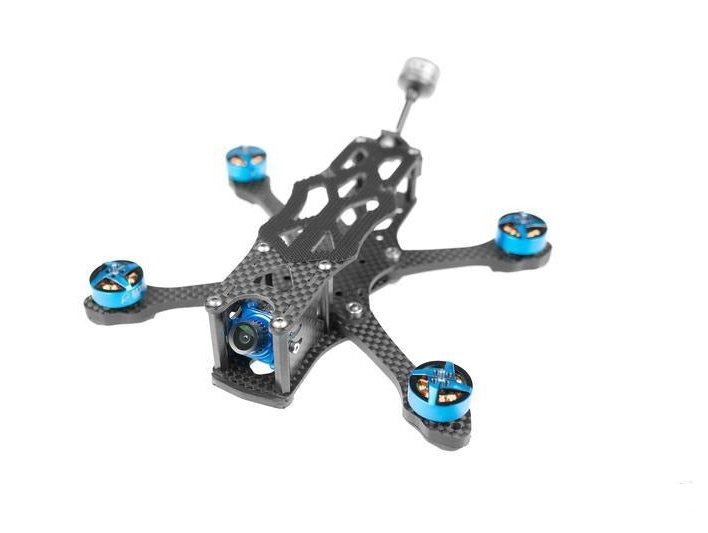

Impulse RC Micro Apex 3" Frame Kit

  • $52.99
    Unit price per



The Impulse RC Micro Apex takes everything you know and love from the wildly popular full-size Apex, then shrinks it down without compromise to deliver by far the biggest little frame on the market.

The meticulous transformation and extreme attention to detail have created a frame that incorporates years of design experience. Equally comfortable as a sub-250g long-range explorer, or a full-blooded freestyle machine capable of handling the harshest environments.

Impulse RC Apex 4 Inch Frame

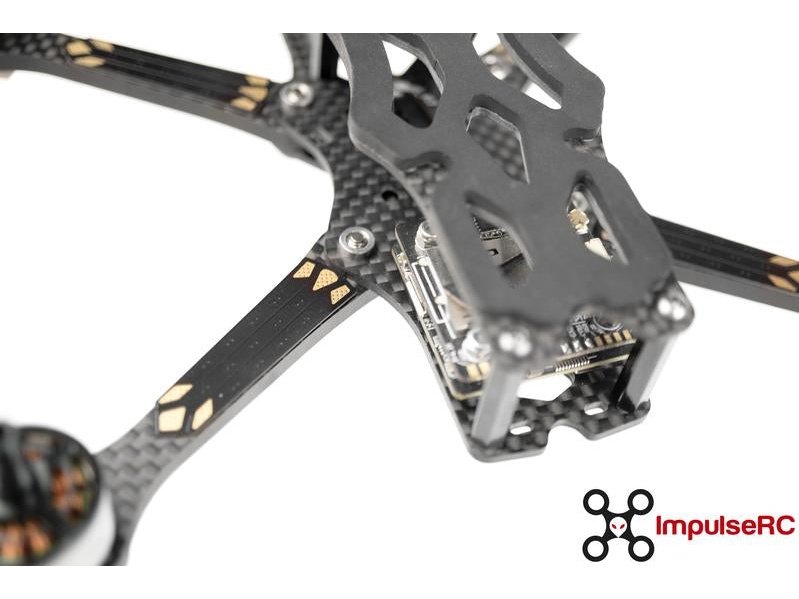

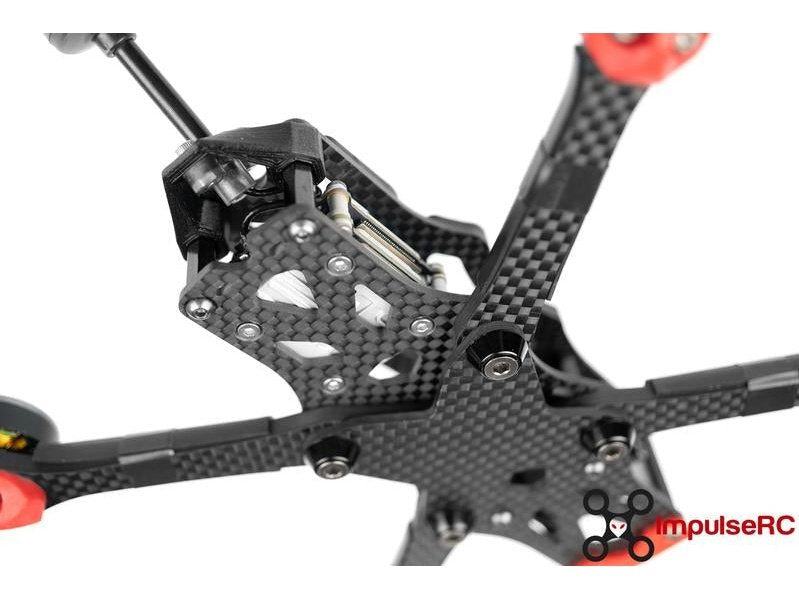

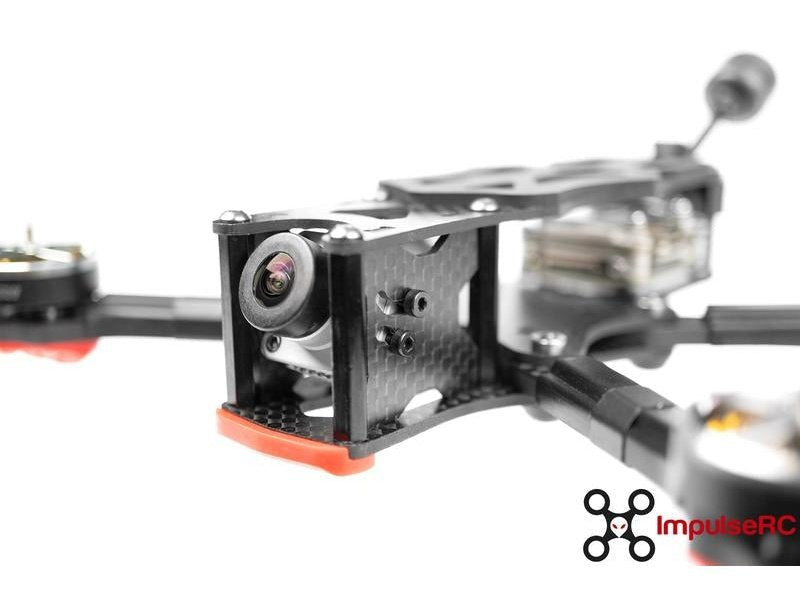

The Micro Apex incorporates all of the unique innovations pioneered by ImpulseRC and now widely imitated. From the compressed-X arm geometry, integrated camera tilt, front box-section, and split main plate design, to our custom shoulder bolts and arm locking key. At the center of mass where the arms meet there is a massive 8mm of carbon fiber, taking the stiffness of a micro-frame to a new dimension so you can enjoy unsurpassed flight characteristics at this prop size.

You can expect zero arm slop or movement, zero vibration or resonance, and of course that proven Impulse RC durability you can always trust. All backed up with our full crash damage warranty that covers all carbon fiber and metal parts for 1 year from the date of purchase.

Specifications:

  • Full crash damage warranty on all parts for 1 year

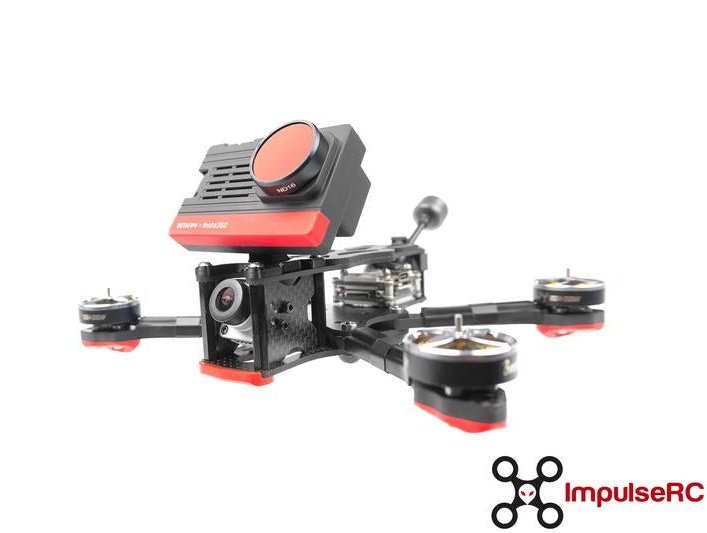

  • Perfect for Caddx Vista, 4K Tarsier, or classic analog setup
  • No props in shot of flight camera with 3” arms
  • Dual stack, 20x20 M3 and M2 center, 20x20 M2 rear
  • Injection molded arm skids and front bumper
  • Injection molded fitted wire guards to protect from prop strikes
  • Two battery pads included, 2mm rubber and ultra-light hook pad
  • Custom fitted Racewire available for 4” arms
  • 3” frame weight 58g, carbon fiber + hardware
  • 4” frame weight 61g, carbon fiber + hardware
  • 4mm thick arms, single shoulder bolt per arm
  • 2mm thick upper and lower main plates
  • 1.5mm thick top and camera plates

Impulse RC Micro Apex

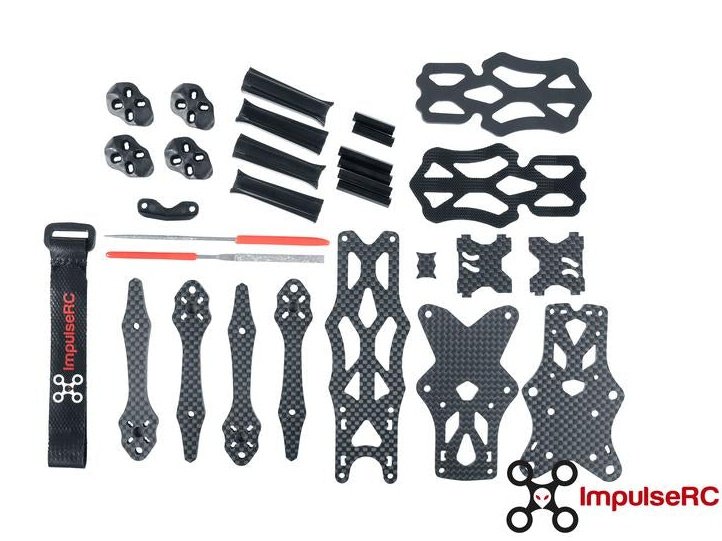

Includes:
Carbon:
1x Micro Apex Arm Key CF 3.5mm
1x Micro Apex Top Plate CF 1.5mm
1x Micro Apex Main Lower CF 2mm
1x Micro Apex Main Upper CF 2mm
2x Micro Apex Cam Side Plate CF 1.5mm
4x Micro Apex 3" Arm CF 4mm

Accessories:
1x Micro Apex Hook LIPO pad - BLACK
1x Micro Apex LIPO pad - 2mm BLACK
1x Diamond File - Flat Mini
1x Diamond File - Round Mini
1x Lipo Strap - Small - ImpulseRC
1x Micro Apex Plastics Kit - BLACK
1x Micro Apex Arm Covers - BLACK - 4 Pack

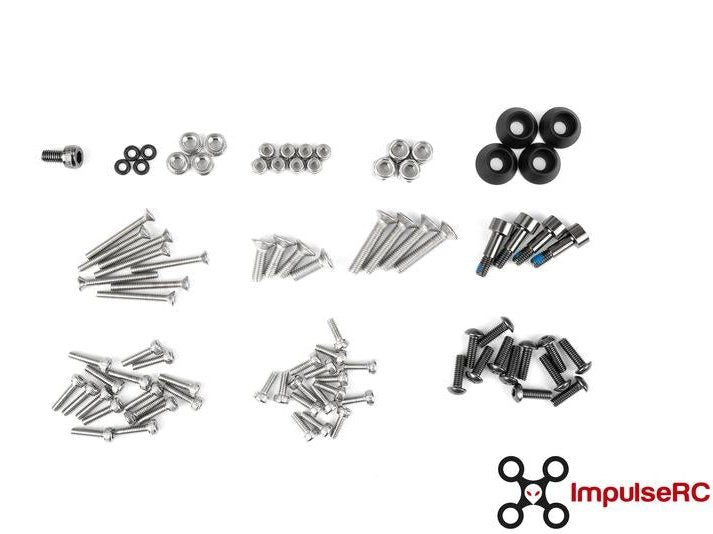

Hardware:
4x M2.5 26mm Standoff - Aluminium - Black
2x M2.5 20mm Standoff - Aluminium - Black
4x M3x11mm Shoulder bolt - High Tensile Carbon Steel - Gunmetal
4x 3x10mm Cone Washer - Aluminium - Black
4x M3 Press Nut - Stainless Steel
1x M3x6mm Cap - High Tensile Carbon Steel - Gunmetal
12x M2.5x8mm Button - High Tensile Carbon Steel - Gunmetal
16x M2x6mm Cap - Stainless Steel
16x M2x8mm Cap - Stainless Steel
4x M3x10mm Countersunk Screw - Stainless Steel
4x M3x16mm Countersunk Screw - Stainless Steel
8x M3x18mm Countersunk Screw - Stainless Steel
8x M2 Lock Nut - Stainless Steel
4x M3 Lock Nut - Stainless Steel
4x 1.8x1mm O-ring

Impulse RC Micro Apex Nylon Parts
