Radiomaster ExpressLRS RP2 2.4GHz TCXO Nano Receiver V2

  • $18.99
    Unit price per


The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.

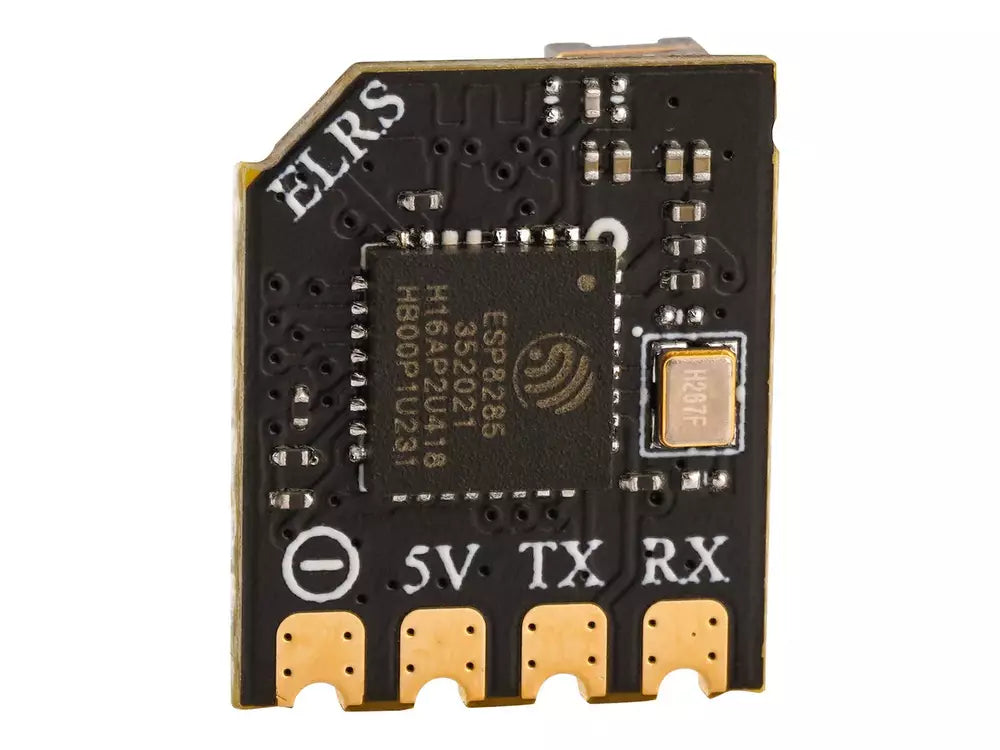

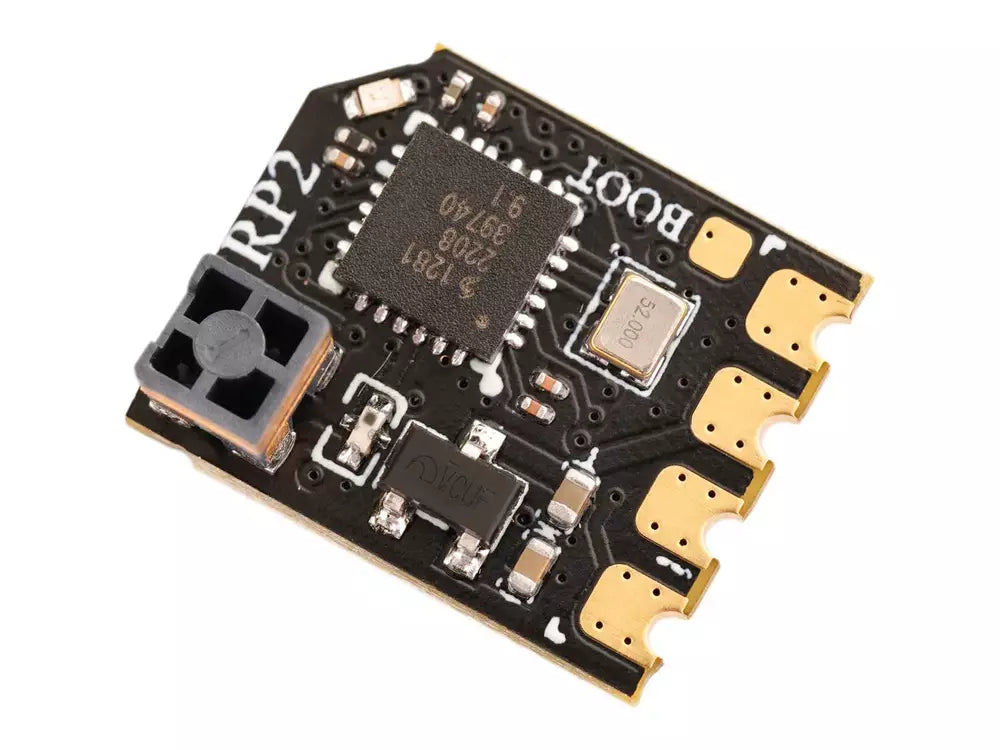

The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.

The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.

Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for many models due to the ultra-light and Nano size, these receivers can fit just about anywhere!

What’s new on the RP2

  • Improved PCB design is better for heat dissipation.
  • Solder pads are improved and easier to solder to.
  • LED on top side of PCB.
  • Upgraded with TCXO Oscillator


  • Item Name: RP2 Nano Receiver
  • Type: ISM
  • ESP8285 MCU
  • SX1280IMLTRT RF Module
  • Antenna: On Board SMT Antenna
  • Frequency Range: 2400 MHz to 2480 MHz
  • Maximum receive refresh rate: 500Hz /F1000Hz
  • Minimum receiver refresh rate: 25Hz
  • TCXO: Yes
  • Working voltage: 5v
  • Weight: 0.55g
  • Dimension: 13mm*11mm*7mm

Radiomaster RP2 ELRS 2.4GHz Receiver V2 TCXO
Radiomaster RP2 ELRS 2.4GHz Receiver V2

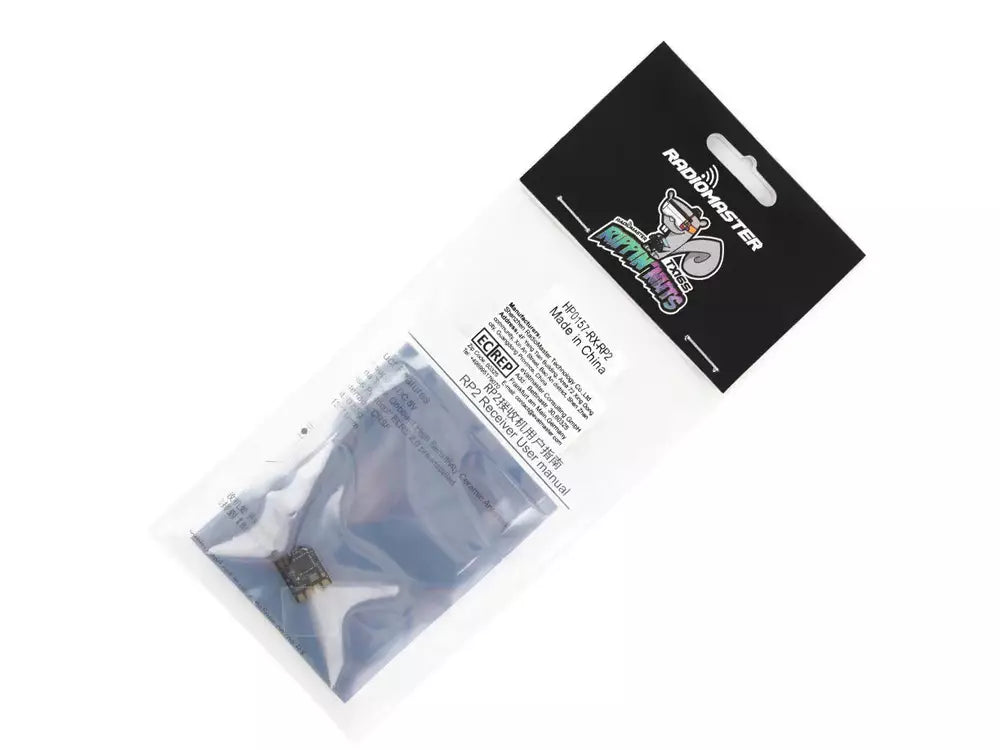

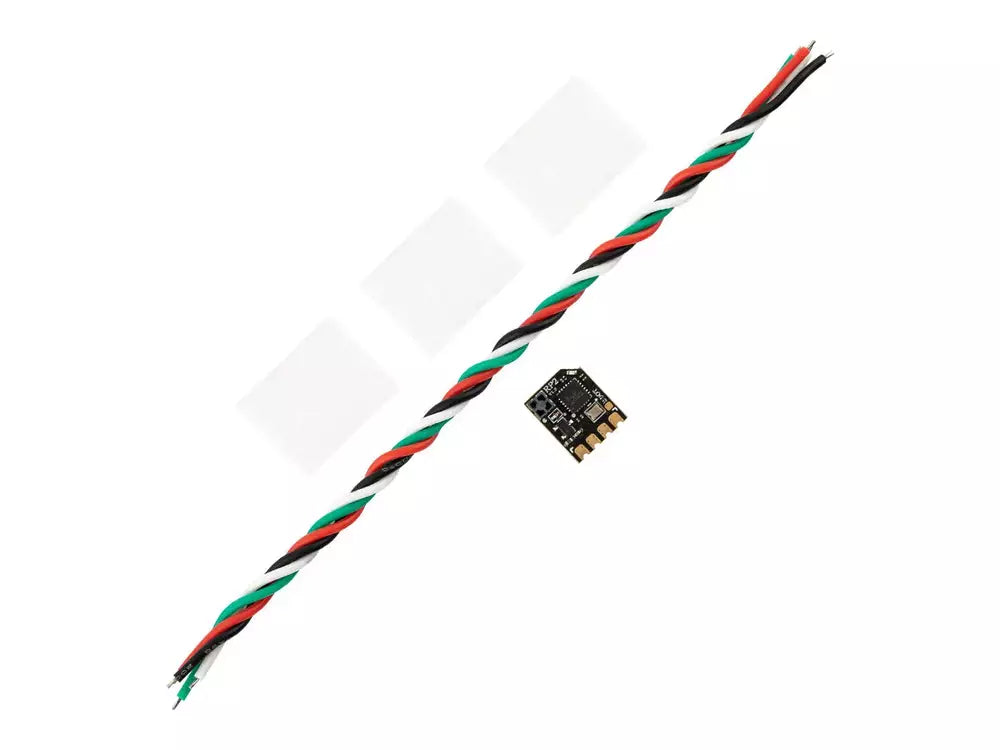

1x Radiomaster RP2 ExpressLRS 2.4GHz TCXO Nano Receiver V2

Download Manual
