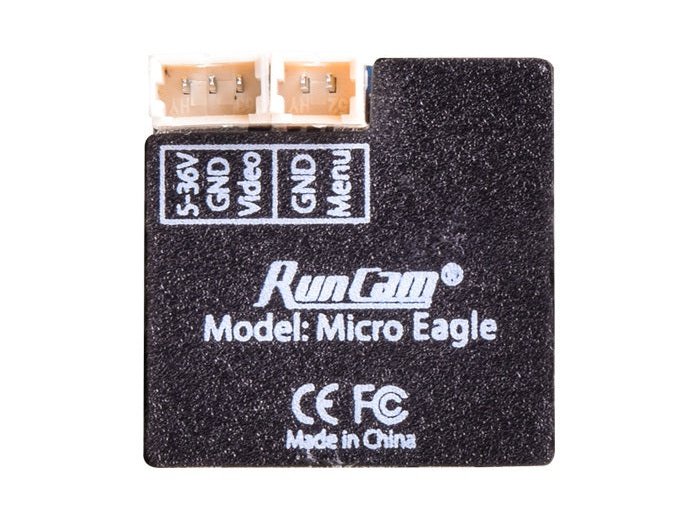

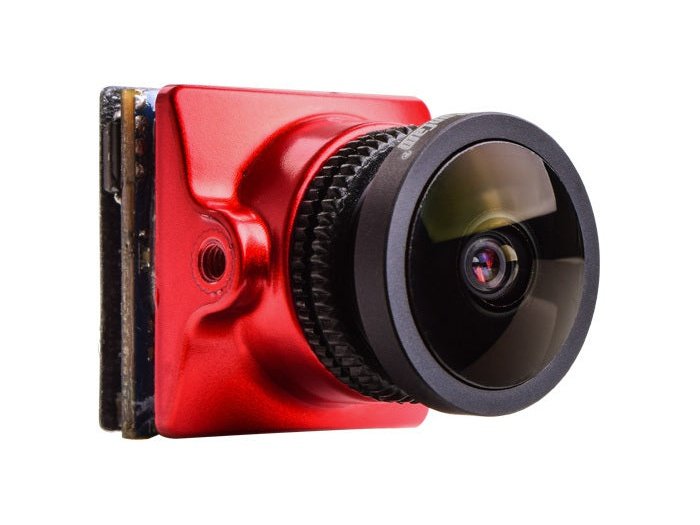

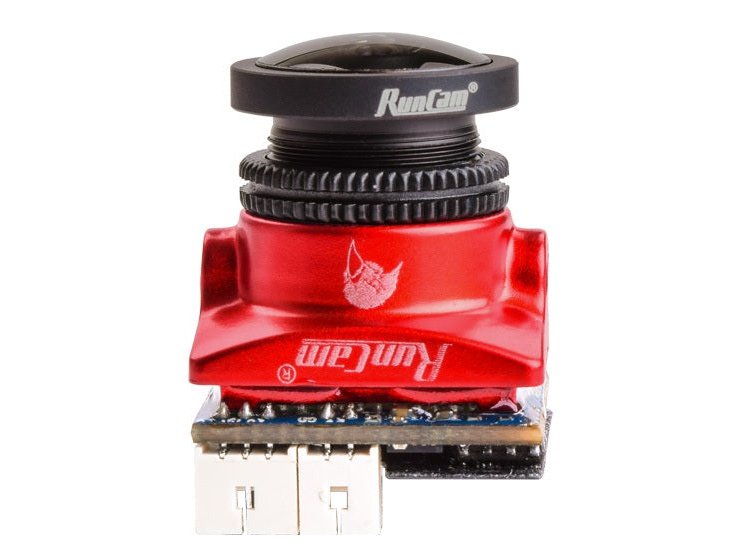

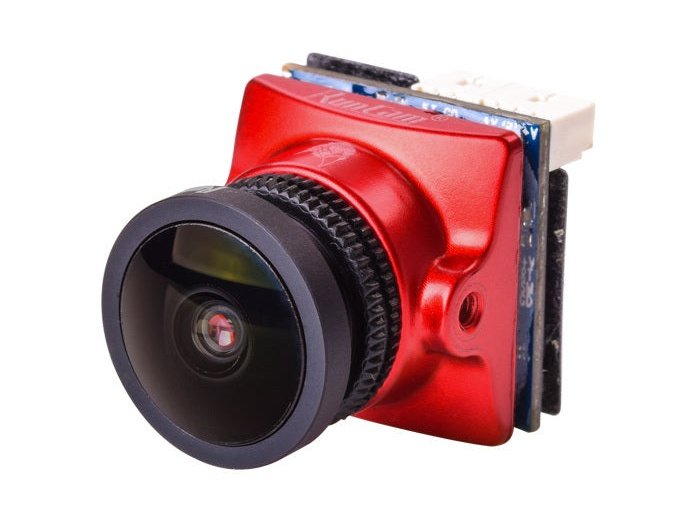

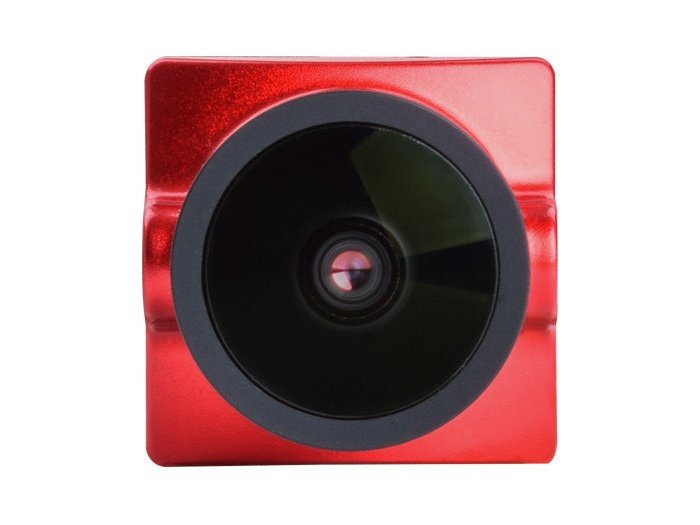

RunCam Micro Eagle

  • $44.99
    Unit price per


The ultra-popular Eagle line of fpv cameras has been shrunk down to micro size.  RunCam's latest Eagle features a 1/1.8" CMOS Sensor image sensor for 800TVL, 16:9 to 4:3 switchable aspect ratio, and the lowest latency in the Eagle line.  It also supports both NTSC and PAL, a wide voltage range, and WDR.  Almost like the perfect camera.

RunCam Micro Eagle


Model RunCam Micro Eagle
Image Sensor 1/1.8" CMOS Sensor
Horizontal Resolution 800TVL
FOV 170 @ 16:9 FOV 140 @ 4:3
Screen Format 16:9 / 4:3 Switchable on OSD menu
Signal System NTSC / PAL Switchable on OSD menu
Mirror/Flip Yes
S/N Ratio >50dB
Electronic Shutter Speed Auto
Max Gain 1-9 Level
Min. Illumination 0.001Lux@1.2F
WDR Level 1-6 available
Day/Night Auto/External/Color/B&W
Power DC 5-36V
Current 200mA@5V / 90mA@12V
Housing Material ABS
Net Weight 8.5g
Dimensions L19mm*W19mm*H22mm


RunCam Micro EagleIncludes:
1x RunCam Micro Eagle
1x Aluminum Bracket
1x Screw Set
1x OSD Control Board
1x 3 Pin Silicone Cable
1x Manual

Download Manual
