RunCam Split Mini

$79.99   In Stock

RunCam Split Mini
RunCam's popular Split camera has been updated with the new RunCam Split Mini.  This even smaller design will finally allow you to have high quality HD video even on your smaller 3" and maybe even 2" quads.

Features:

  • 1080P/60fps HD recording & WDR FPV camera
  • Power-off protection for video files
  • Ultra light weight (15g)
  • Low latency TV-OUT
  • Wide voltage (5-17V)
  • Anti-drop SD card

RunCam Split Mini - Defiance RC

  • Instruction DiagramRunCam Split Mini - Defiance RC
  • Lens Module Connection DiagramRunCam Split Mini - Defiance RCWarning: Please press the Metal Cover(showed above) to make sure the Sensor Connector fixed steadily.
  • Micro SD Card
    Capacity up to 64GB; Please use high speed cards(Class10/UHS-I/UHS-II)RunCam Split Mini - Defiance RCPlease push the metal piece a little bit up with one hand like showed in above step 1 and then press the SD card(step 2) with another hand to let the card pop out.

Specifications:

  • FOV Angle of Field: FPV FOV 130° / Recording FOV 165°
  • Video Resolution: 1080@60fps / 1080@30fps / 720@60fps
  • Video Files: MOV
  • Image Resolution: 2 MP
  • TV Output: NTSC (720*480) / PAL (720*576) Switchable
  • Interface: Micro USB / UART
  • Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)
  • Hole Distance of Installation: 20*20mm

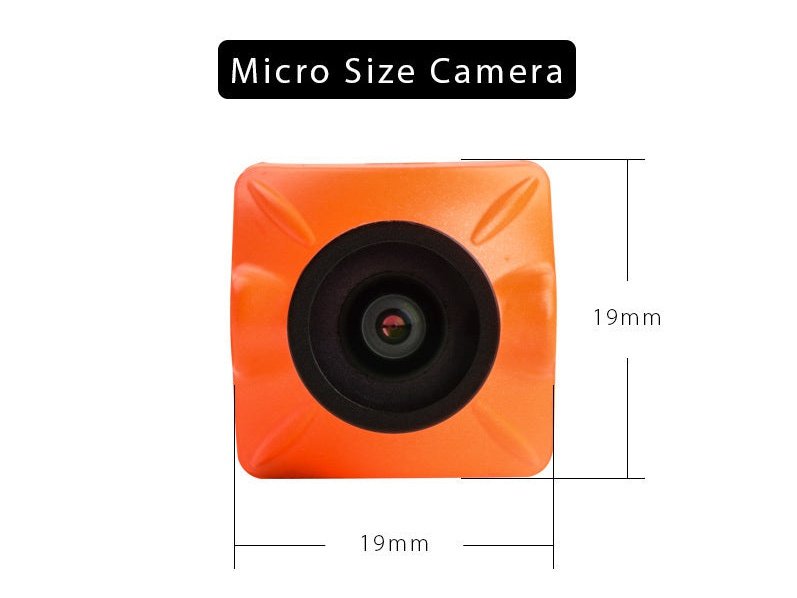

  • Dimensions: PCB 27*29mm / Lens Module 19*19mm
  • Power Input: DC 5-17V/DC 5V(USB)
  • Working Current: 650mA @5V / 270mA @12V
  • Weight: 15g

Download RunCam Split Mini Manual (PDF)

Includes:

1x RunCam Split Mini FPV Camera
1x Metal Cover
1x SD card protector
1x Bracket
1x TV-out and power cable
1x 3pin FPV Silicone Cable(male)
1x 3pin FPV Silicone Cable(female)
1x Set of screws
