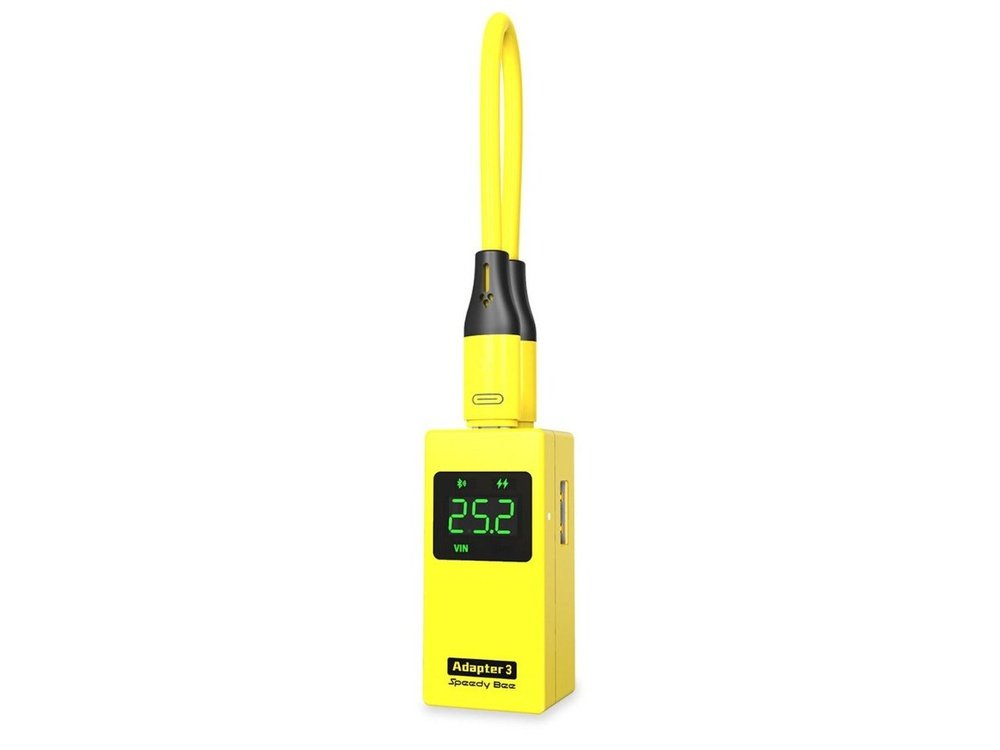

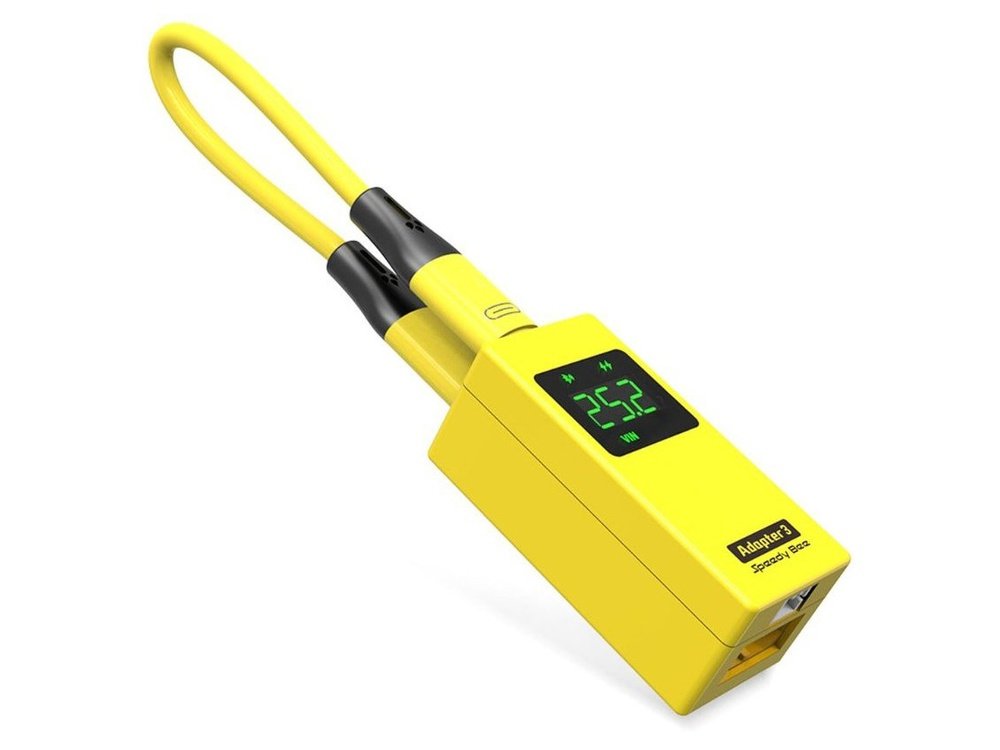

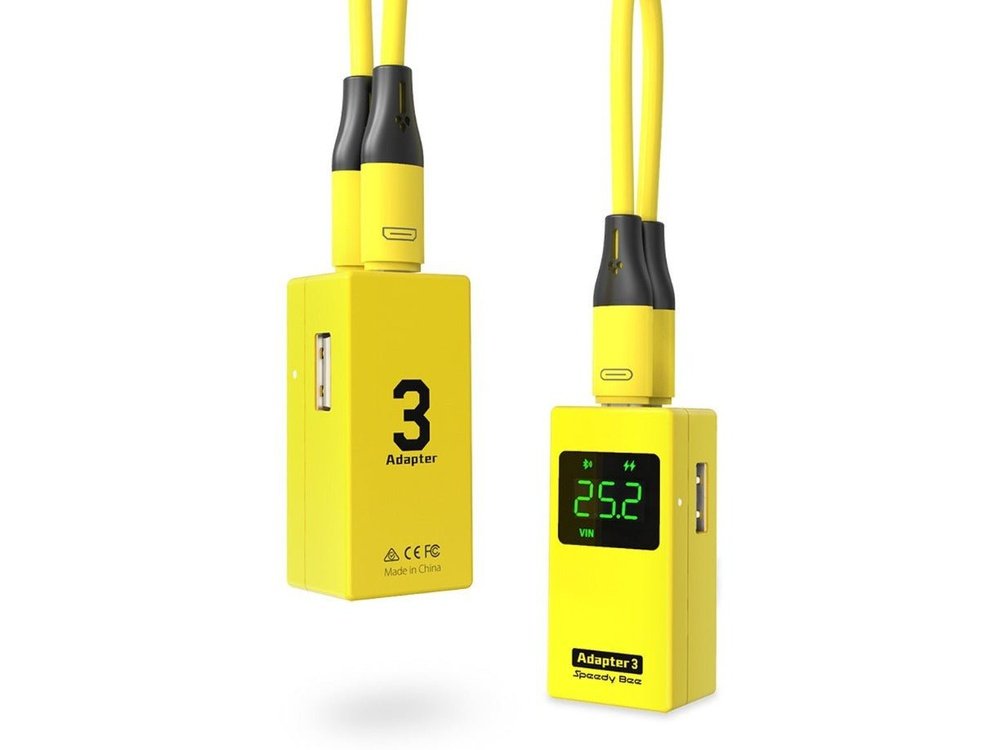

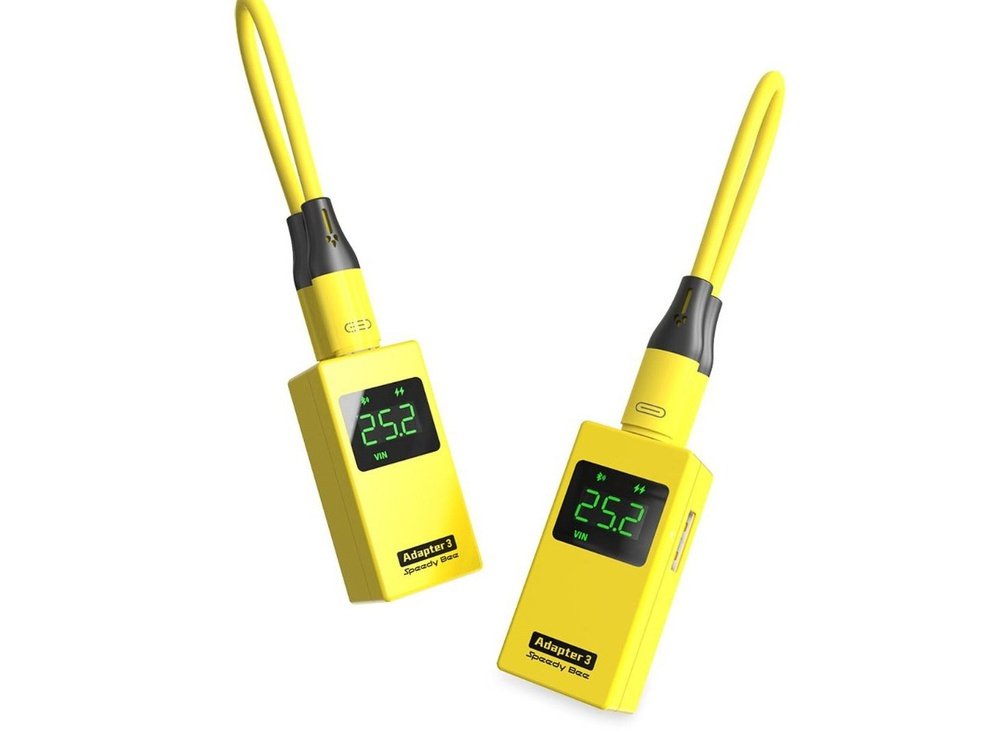

Speedy Bee Adapter 3
Turn your smartphone into your mobile FPV companion with the Speedy Bee Adapter V 3. Building upon the success of the 2 previous versions, Speedy Bee has once again upped the ante with more features and support, along with improved quality and speed. Free yourself from your laptop and enjoy your flight!
V3 vs V2 vs Original
| Item | SpeedyBee Adapter 3 | SpeedyBee Adapter 2 | OTG |
| Support 1-6S LiPo input | ✔ | ✔ | N/A |
| XT60 and PH2.0 connectors | ✔ | ✔ | N/A |
| BF/INAV/EMU configuration | ✔ | ✔ | ✔ |
| Flight control firmware upgrade | ✔ | ✔ | ✘ |
| Built-in WiFi | ✔ | ✔ | ✘ |
| Built-in Bluetooth | ✔ | ✘ | ✘ |
| Blackbox downloader and analyzer | ✔ | ✘ | ✘ |
| 8-bit BLHeli_S ESC firmware updater | ✔ | ✘ | ✘ |
| Built-in MicroUSB and Type C connector | ✔ | ✘ | ✘ |
| Fast charging output up to 30W | ✔ | ✘ | ✘ |
| Built-In LiPo Voltage Checker | ✔ | ✘ | ✘ |
Specifications:
- Power Input Voltage Range: 1-6S ( 3.8V + for 1S )
- Power Input Connector: XT60-Male, PH2.0 Male
- Required Mobile Device System Version: Android 7.0+ | iOS 12.0+
- Supported Speedy Bee App Version: V1.6.1+ for iOS | V1.5.6+ for Android
- Maximum Output Current for Flight Controllers: 700mA @ 5V
- Fast Charging Output Interface: USB A Port
- Minimum Input Voltage for Charging Output: 7.4V (2S LiPo)
- Supported Fast Charging Protocol:
- QC3.0/QC2.0
- AFC
- FCP
- SCP/High SCP
- PE2.0/PE1.1
- SFCP
- Max Fast Charging Current: 3.5A
- Max Fast Charging Power: 30W
- Case Material: ABS + PC
- Liquid Silicone Cable Length: 12.4cm
- Dimensions: 24.8 x 21.8 x 53.6mm
- Net Weight: 35g

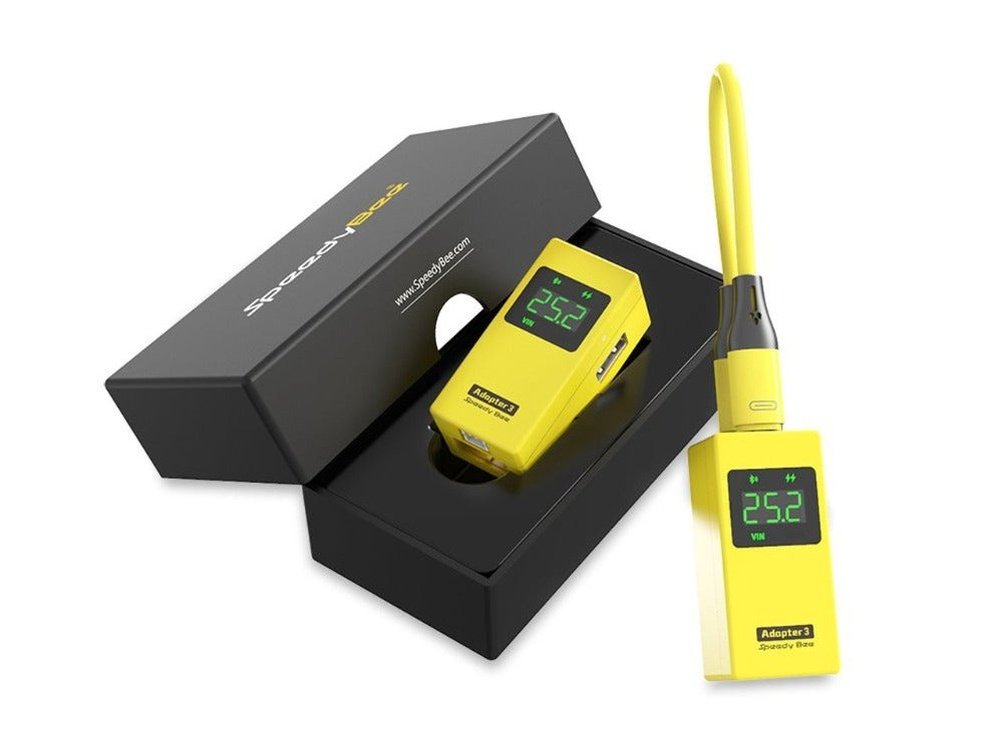

Includes:
1x Speedy Bee Adapter V3
1x Manual Card
