Speedy Bee Mario 5 DC Advanced Frame Kit

  • $39.99
    Unit price per

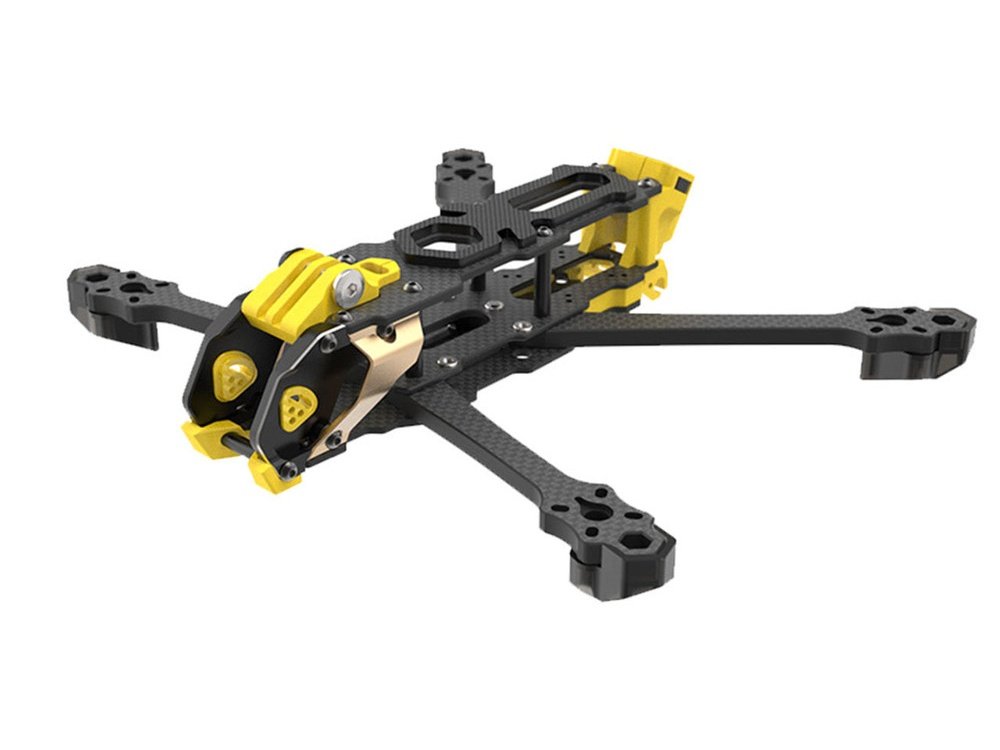

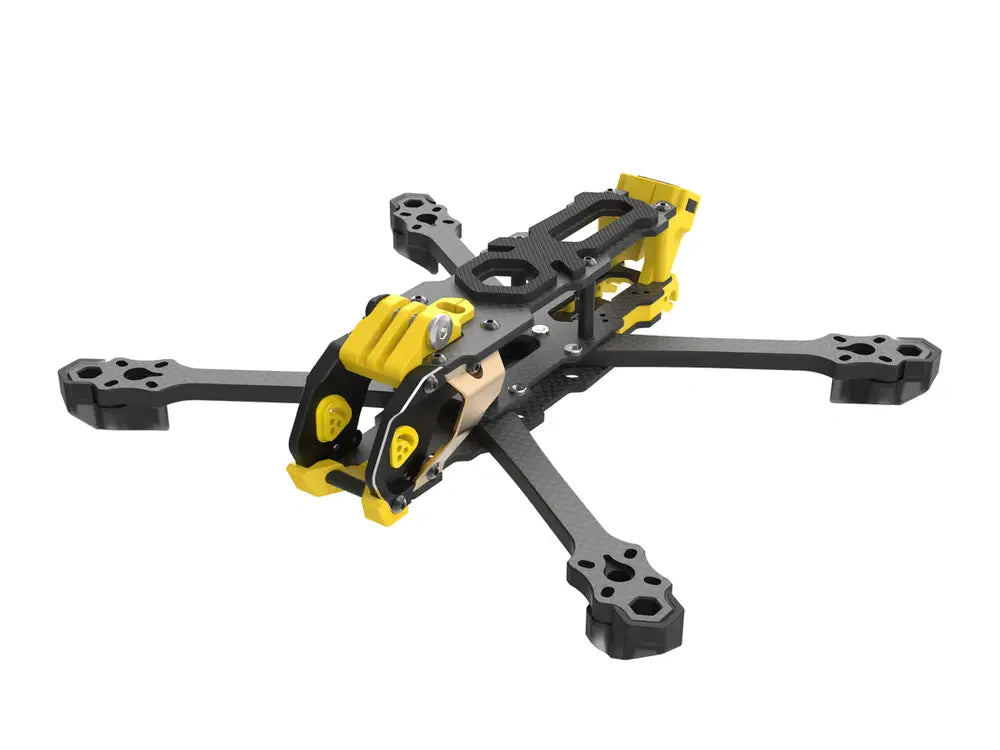

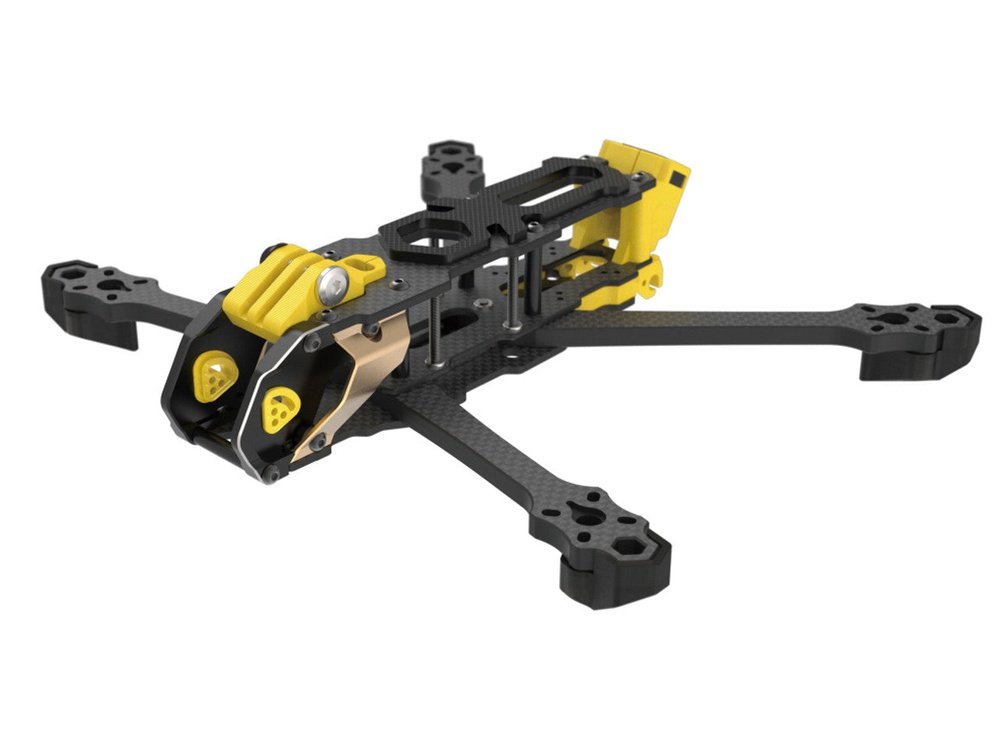

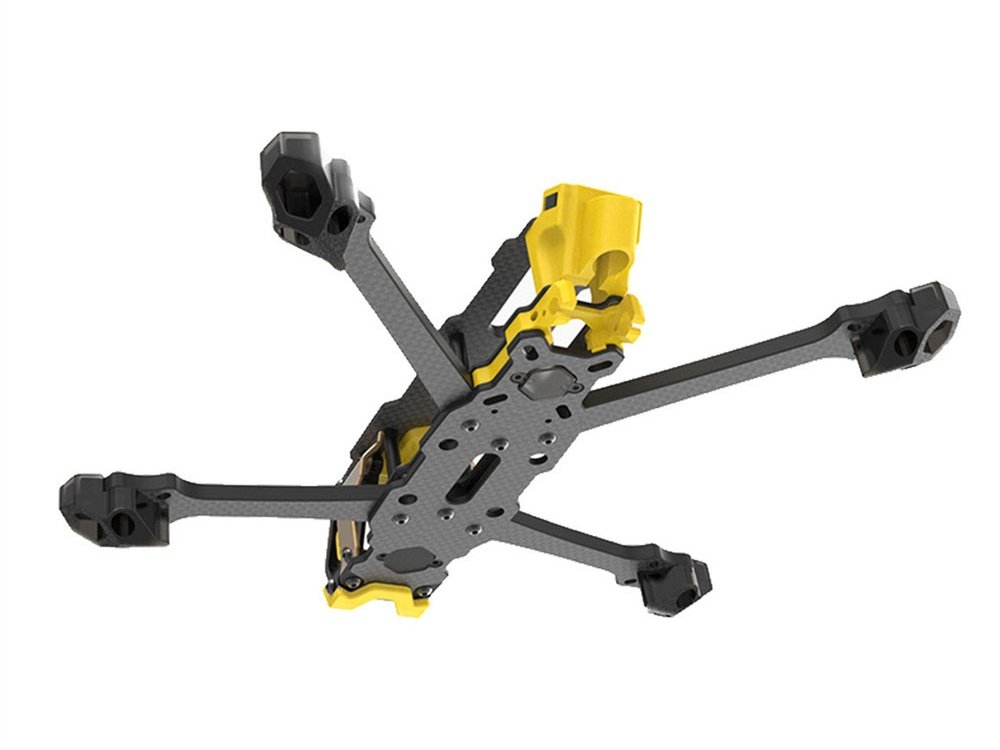

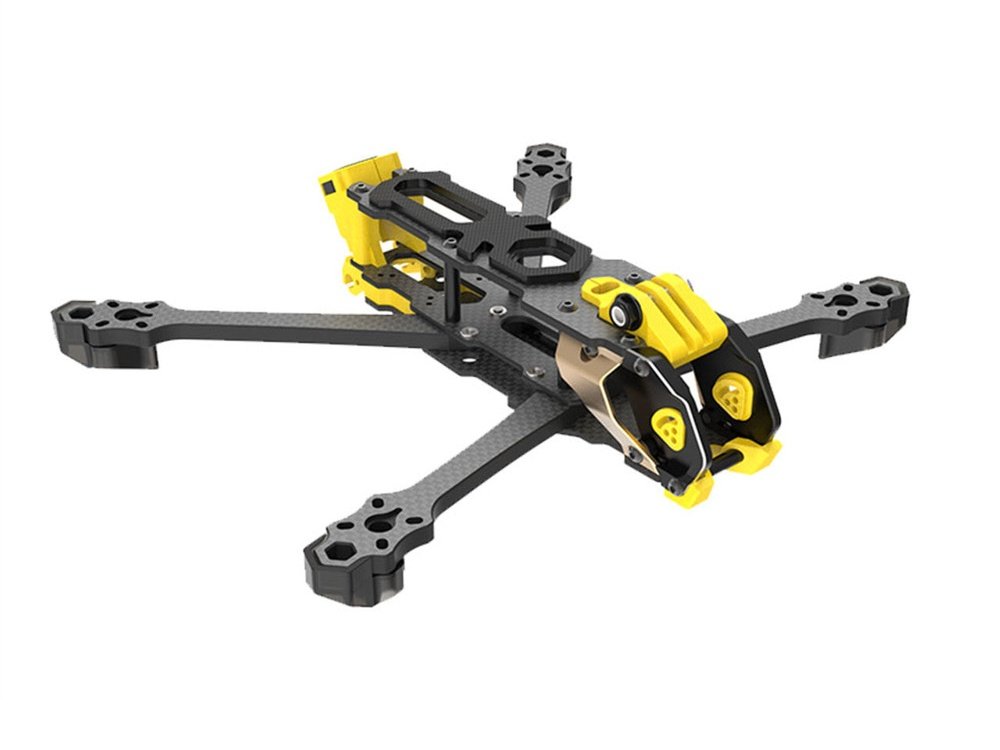

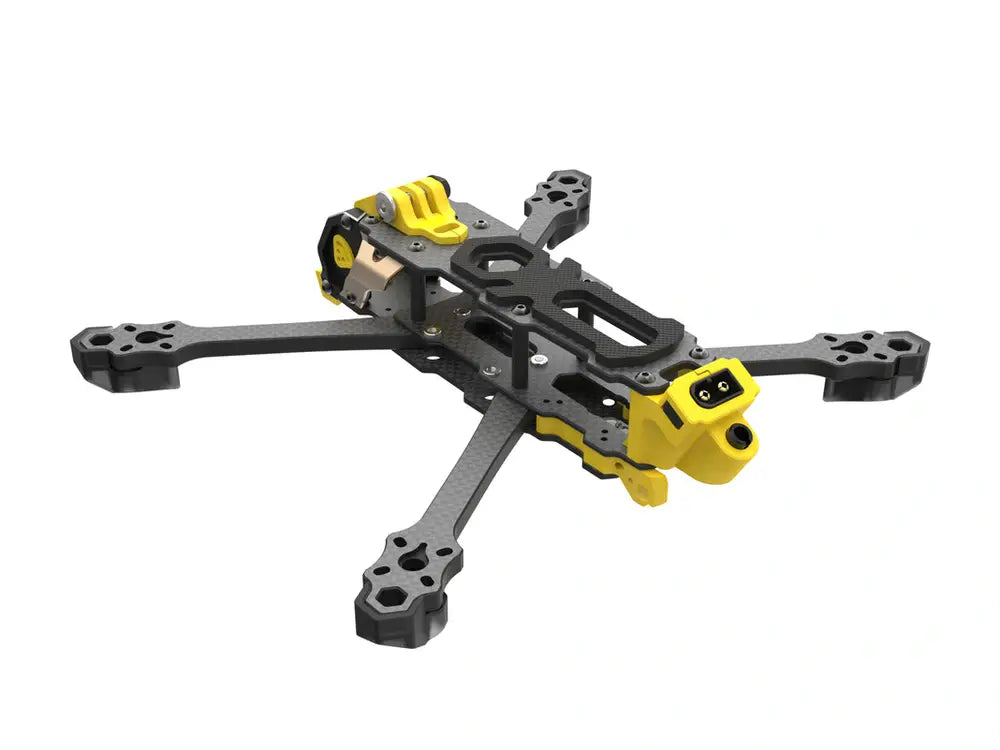

The Speedy Bee Mario 5 DC Advanced Frame Kit boasts high-quality and durable T300 4K carbon fiber and aviation aluminum alloy construction. With a well-thought-out and purposeful design, this frame offers superior performance and reliability for your drone, with a place for all your gear. Upgrade your flying experience with this advanced kit.

The DC is a "Dead Cat" configuration with front arms angled back, allowing for flight without the propellers in view of the camera.

Specifications:

  • Wheelbase:  227mm
  • Weight:  170 +/- 5g (3D printed parts included)
  • Top Plate Thickness:  2.5mm
  • Middle Plate Thickness:  2.0mm
  • Bottom Plate Thickness:  2.5mm
  • Arm Thickness:  6mm
  • Camera Mounting Screw:  7mm
  • 3D Printed Parts:  Yellow TPU
  • Battery Anti-Slip Pad:  Silicone 3mm
  • Motor Hole Position:  Φ8mm
  • Propeller Size:  Max 5.1 Inch
  • Motor Mounting:  16-19mm
  • FC Mounting:  30.5x30.5(M3)
  • VTX Mounting:  20x20(M2) / 25.5x25.5(M2)
  • Head Material:  Aviation Aluminum Alloy
  • Aluminum Column Material:  7075 D5*23mm/D46*22mm
  • Internal Mounting Height:  23-31mm
  • Receiver Installation Space:  25*13*6mm
  • Suitable Capacitor Size:  Φ10mm*20mm
  • GPS Installation Size:  18*18*7mm

Speedy Bee Mario 5 DC Advanced Frame Kit

Speedy Bee Mario 5 DC Frame Kit

Speedybee Mario 5 DC Frame Kit

Includes:
1x Speedy Bee Mario 5 DC Advanced Frame Kit

Download Manual

Download 3D Printed Files
