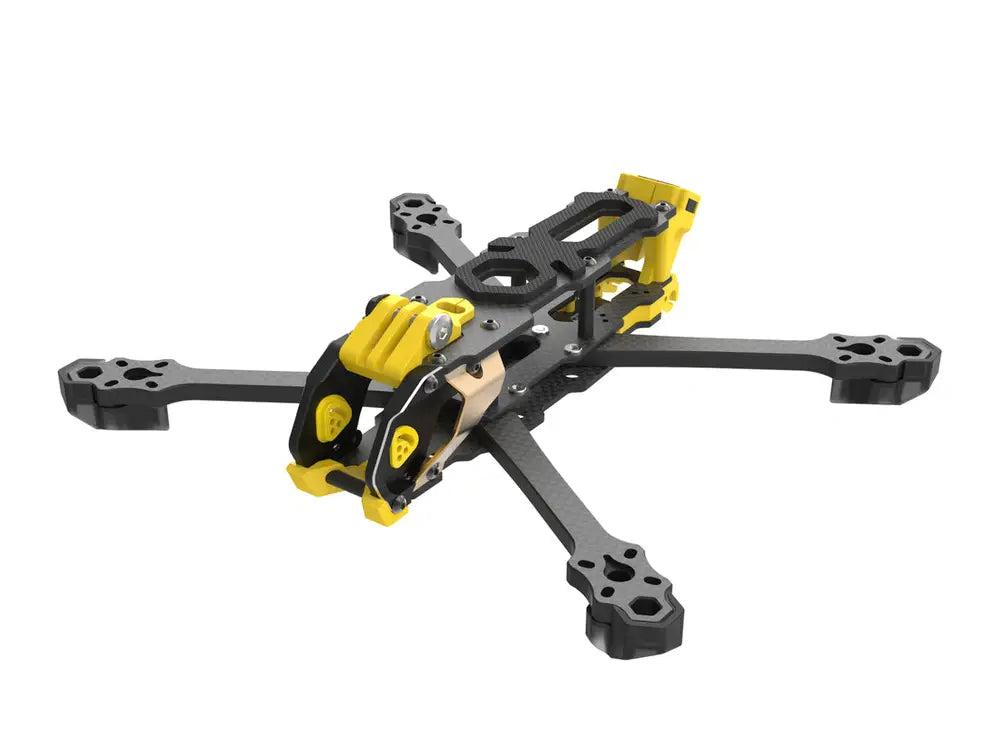

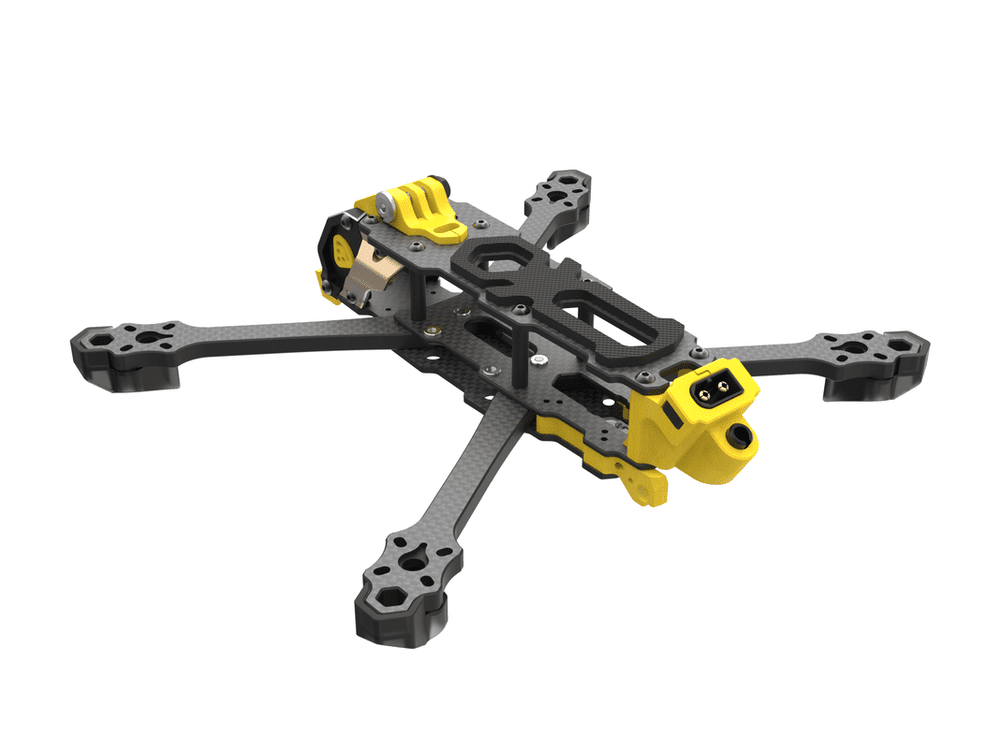

Speedy Bee Mario 5 XH Advanced Frame Kit

  • $39.99
    Unit price per



The Speedy Bee Mario 5 XH Advanced Frame Kit boasts high-quality and durable T300 4K carbon fiber and aviation aluminum alloy construction. With a well-thought-out and purposeful design, this frame offers superior performance and reliability for your drone, with a place for all your gear. Upgrade your flying experience with this advanced kit.

The XH is a symmetrical configuration with arms that form an X. This allows better performance and more consistent flips, rolls, and yaw. You will most likely see props in your FPV view though.

Specifications:

  • Wheelbase:  226mm
  • Weight:  167 +/- 5g (3D printed parts included)
  • Top Plate Thickness:  2.5mm
  • Middle Plate Thickness:  2.0mm
  • Bottom Plate Thickness:  2.5mm
  • Arm Thickness:  6mm
  • Camera Mounting Screw:  7mm
  • 3D Printed Parts:  Yellow TPU
  • Battery Anti-Slip Pad:  Silicone 3mm
  • Motor Hole Position:  Φ8mm
  • Propeller Size:  Max 5.1 Inch
  • Motor Mounting:  16-19mm
  • FC Mounting:  30.5x30.5(M3)
  • VTX Mounting:  20x20(M2) / 25.5x25.5(M2)
  • Head Material:  Aviation Aluminum Alloy
  • Aluminum Column Material:  7075 D5*23mm/D46*22mm
  • Internal Mounting Height:  23-31mm
  • Receiver Installation Space:  25*13*6mm
  • Suitable Capacitor Size:  Φ10mm*20mm
  • GPS Installation Size:  18*18*7mm

Speedy Bee Mario 5 DC Advanced Frame Kit

SpeedyBee Mario 5 XH Frame Kit

Speedybee Mario 5 XH Frame Kit

Includes:
1x Speedy Bee Mario 5 XH Advanced Frame Kit
