TBS Crossfire Sixty9

  • $49.95
    Unit price per



What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

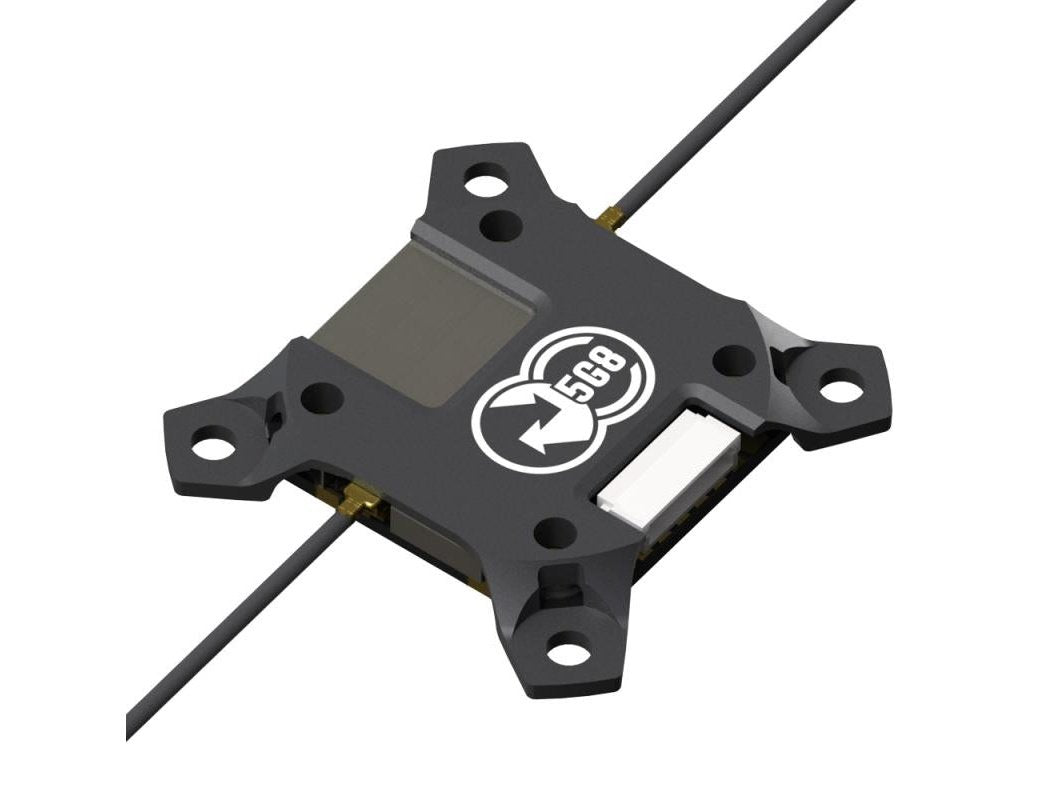

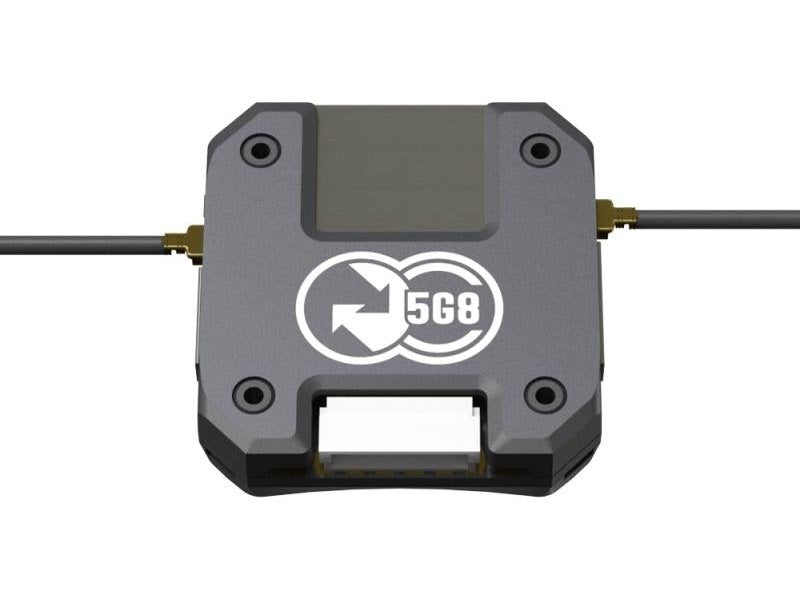

Introducing the TBS Crossfire Sixty9, a VTx and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20, but we do include adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

Features:

  • Integrated video transmitter control with long-range and (team-)race functions
  • Dedicated low-noise power supply for receiver and video transmitter
  • Sleek 20x20 mounting form factor
  • Plug&play connection and solder pads connectivity

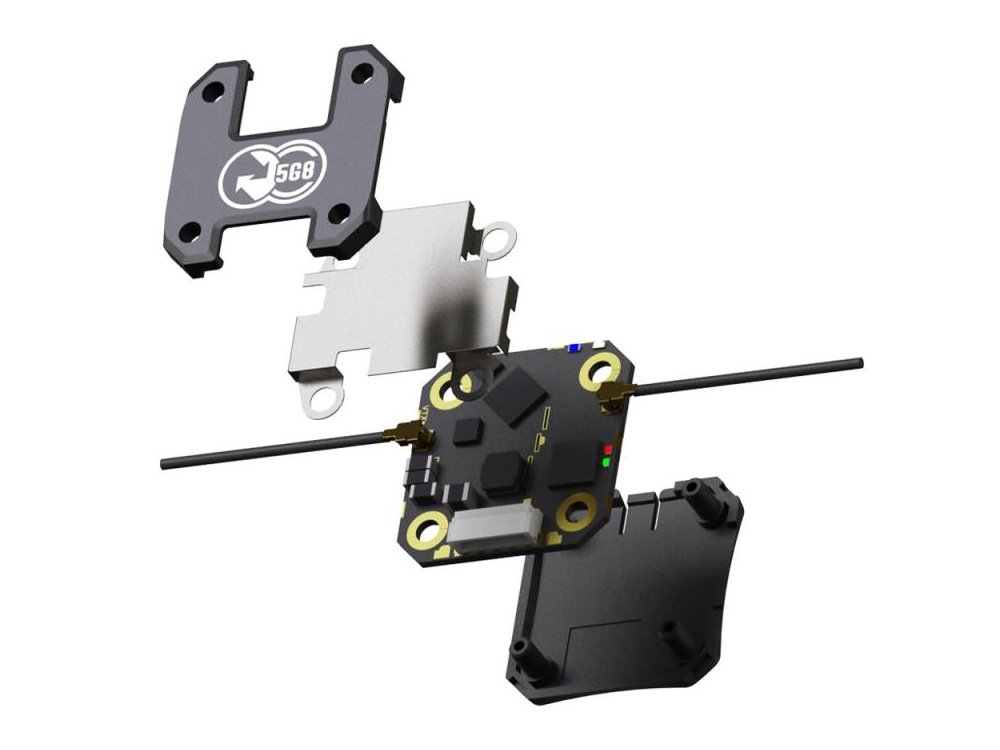

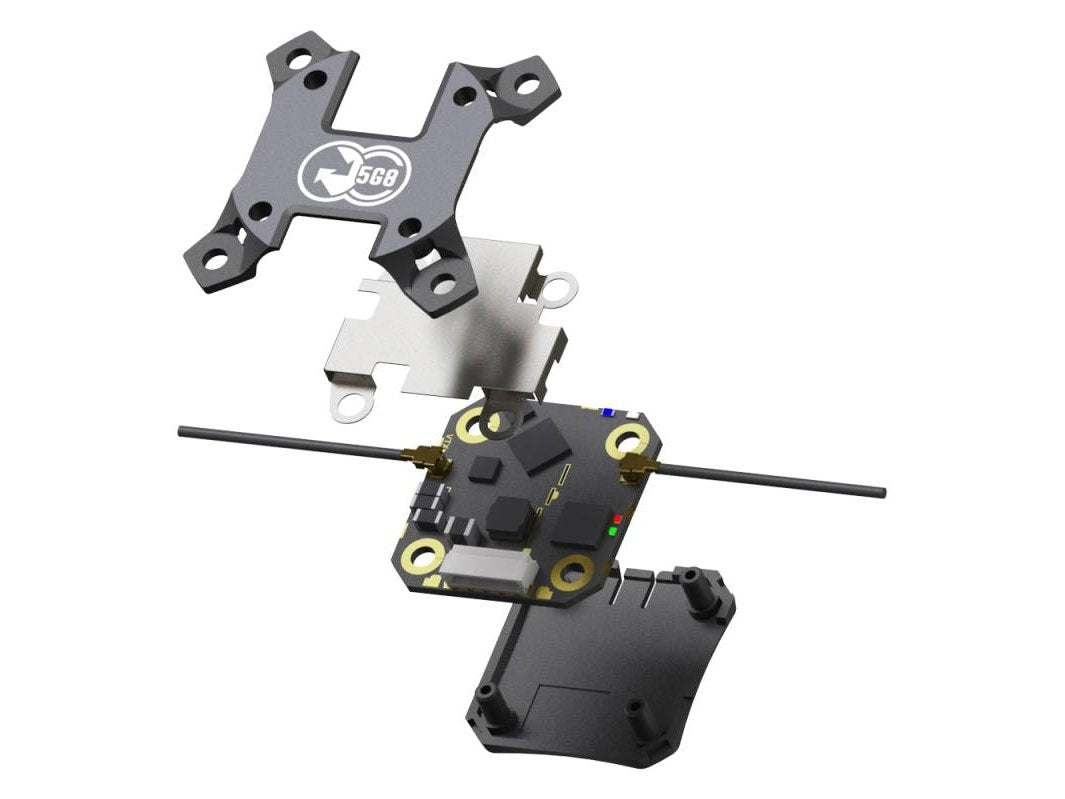

  • 3 different mounting flavors, RF tin shields, and other accessories included
  • High power analog adjustable video transmitter (up to 1W with perfect cooling)

Specifications:

  • Weight: 4.1g (board only)
  • Antenna ports: 1x video transmitter, 1x R/C receiver
  • Size: 24mm x 24mm
  • Requires: Firmware V4.62 and above
  • CRSF V3 ready

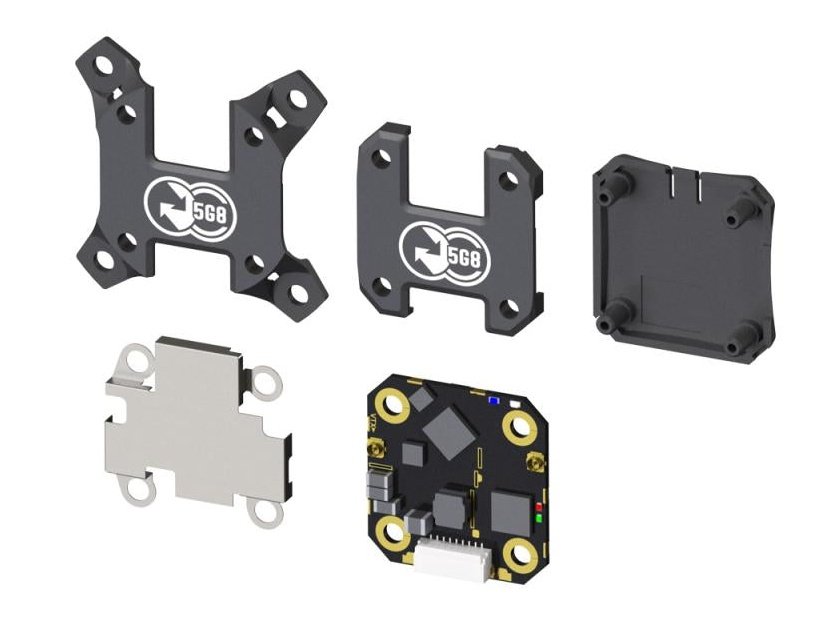

Includes:
1x TBS Crossfire Sixty9
1x TBS Crossfire Immortal-T Antenna
1x u.FL to SMA Mount (for VTx)

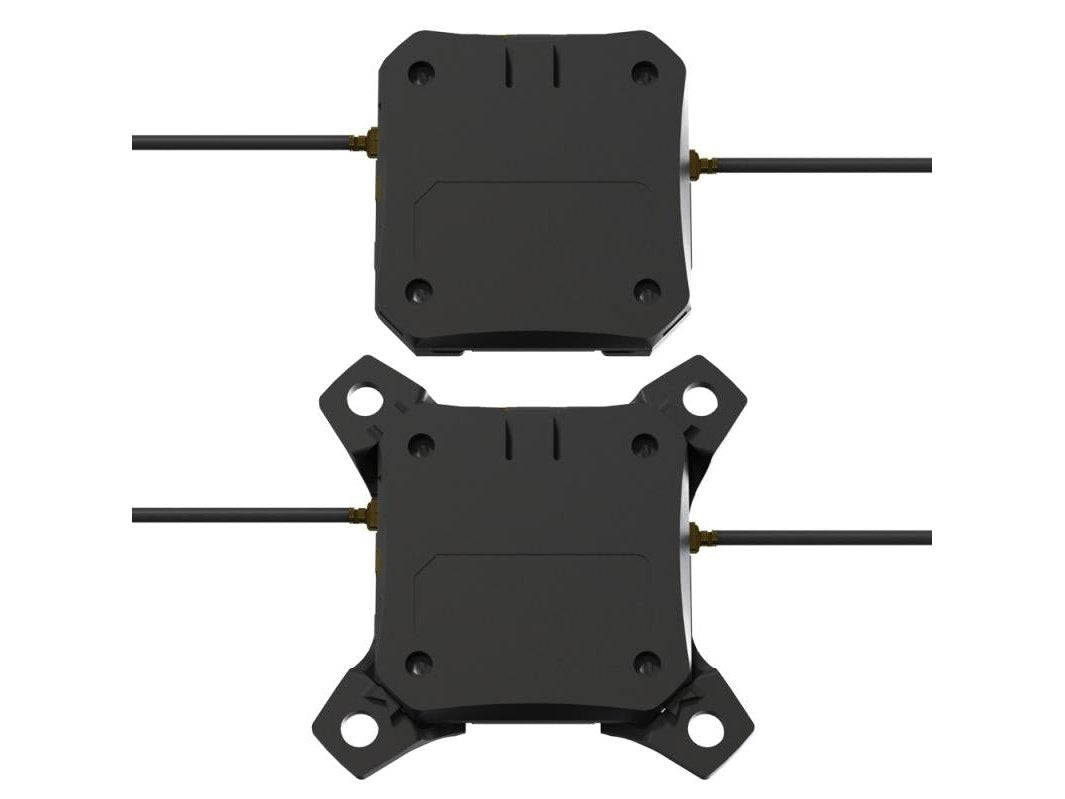

1x 30x30 Heatsink / Case
1x 20x20 Heatsink / Case
1x Optional Tin-Shield (for added low-noise tolerance)
1x JST-SH x 9 Connector

Download Manual
