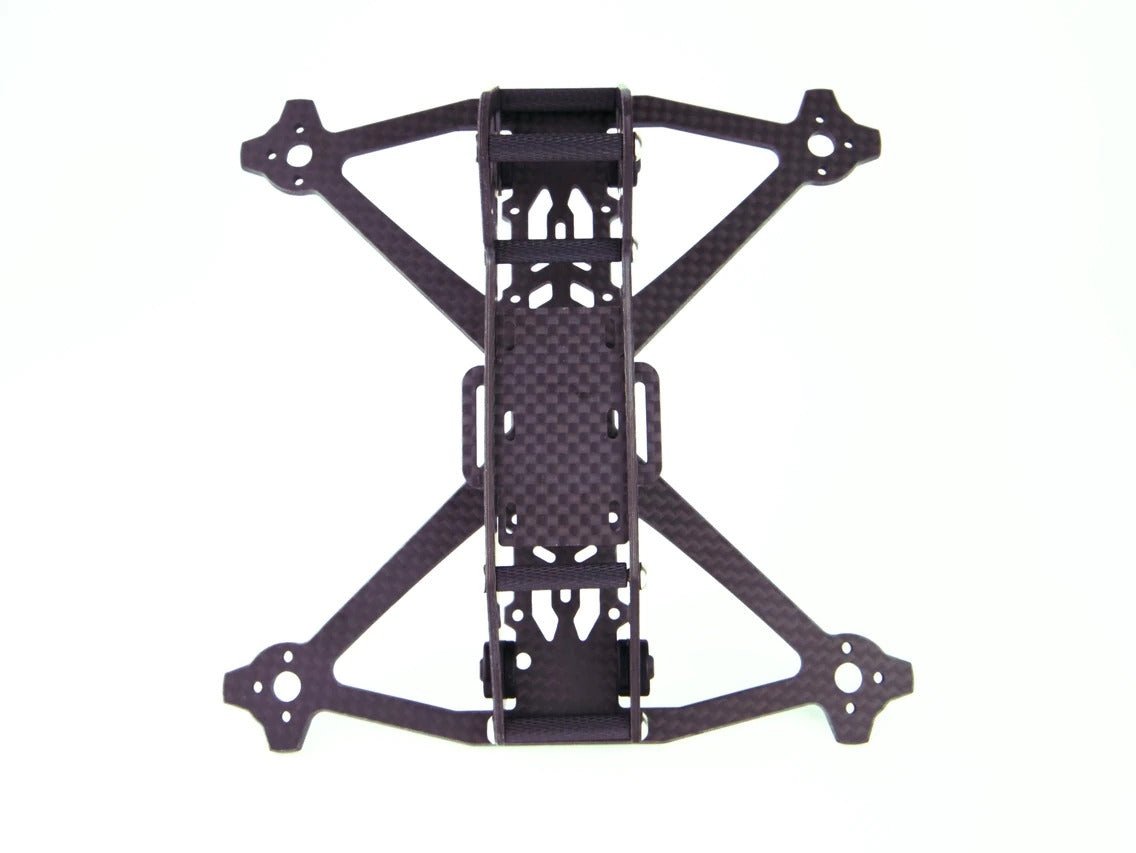

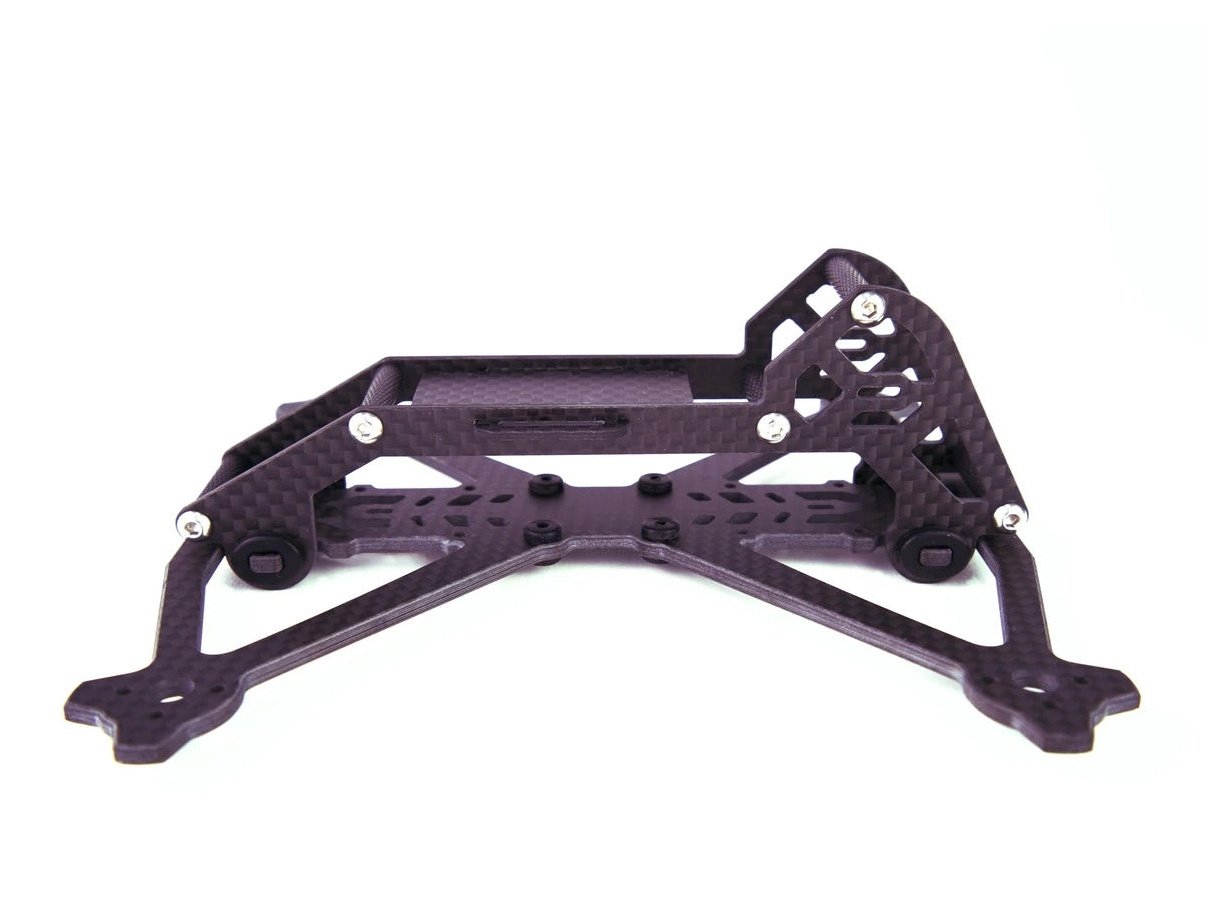

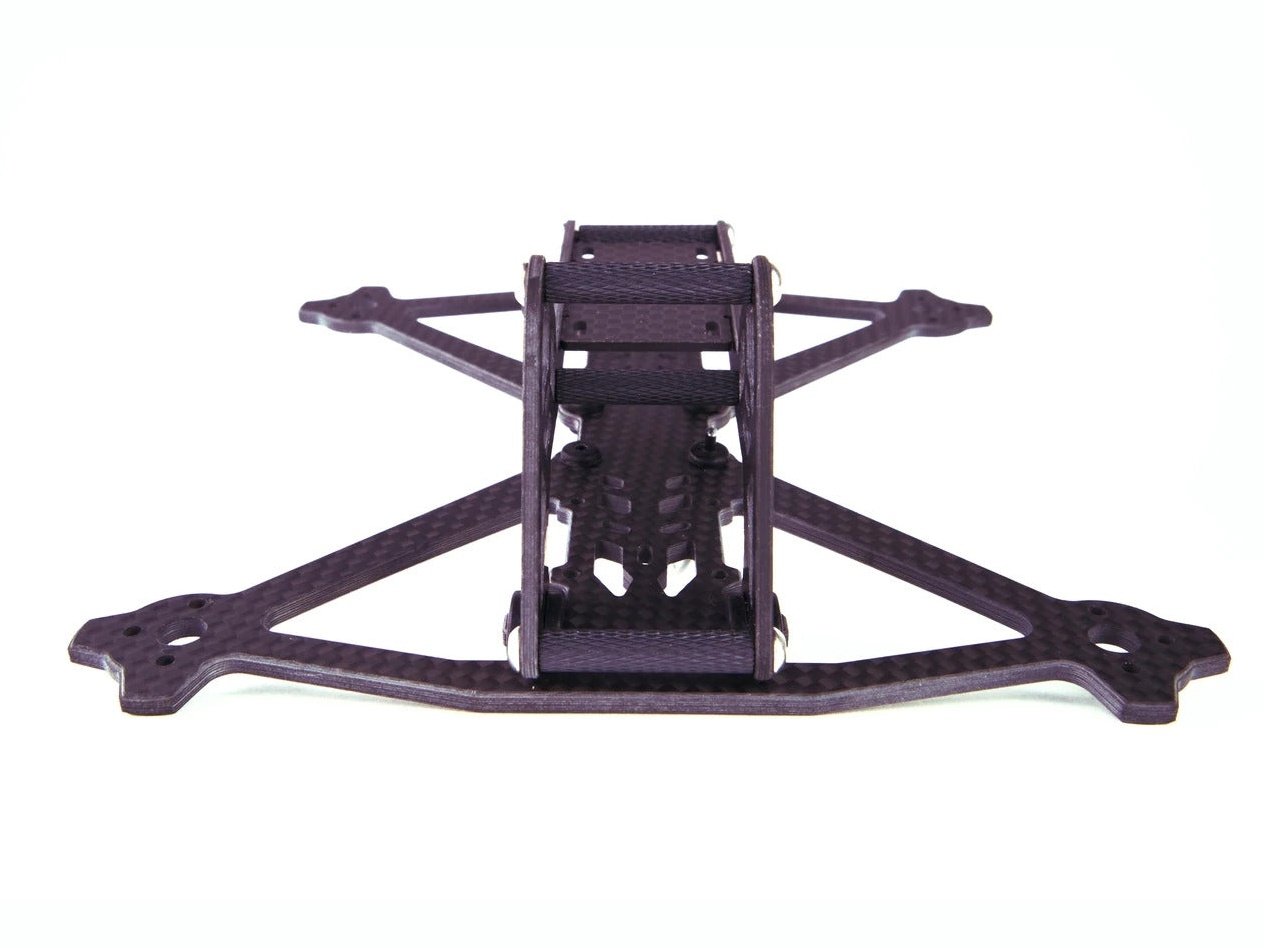

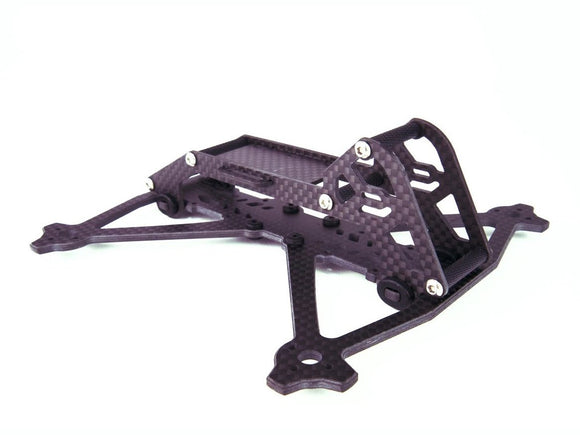

The Acrobat by Ummagawd 3" Frame

  • $44.99
    Unit price per


Ummagawd created a miniquad that doesn’t intimidate newcomers, and doesn’t disappoint seasoned FPV pilots. A balance of size, budget and fun-factor, that encourages anyone to create awesome HD FPV videos, without risking expensive equipment, breaking laws, or scaring spectators.

Design Goals:

  • Deliver an HD freestyle quad for less than the price of a gopro session 5 (at the time $299)
  • A 3” quad that feels and flies like a 5”
  • Uses the runcam split mini, but mitigates the jello issues that the split is prone to
  • all in a package that is fairly durable and not intimidating for the pilot or spectators


  • Unibody Main plate = 3mm bi-axial Toray Carbon Fiber
  • Side plates (w/adjustable FPV cam placement) = 2mm bi-axial Toray Carbon Fiber
  • Battery plate (w/optional top mount FC holes) = 1.5mm bi-axial Toray Carbon Fiber
  • Hardware = Stainless Steel
  • Frame Dampeners = Custom Poly-urethane
  • Motor to Motor (diagonal) = 163mm
  • Motor to Motor (front to back/side to side) = 115mm
  • Overall Frame size = 141x141mm
  • Frame height = 55.5mm
  • Dry Frame Weight = 54g
  • Motor bolt pattern = 12x12mm
  • Motor c-clip hole = 6mm

1x Frame Hardware set
1x Camera Hardware set
1x Camera Board Hardware set
1x FC/ESC Stack Hardware set
1x FC grommets set
1x Bushings set
1x Battery Pad
2x Side Plates
1x Battery Plate with velcro strap
1x Base Plate

Recommended Motors:
The Hypetrain Brat 14078 4140kv motors were designed specifically for this frame.  Highly recommended
