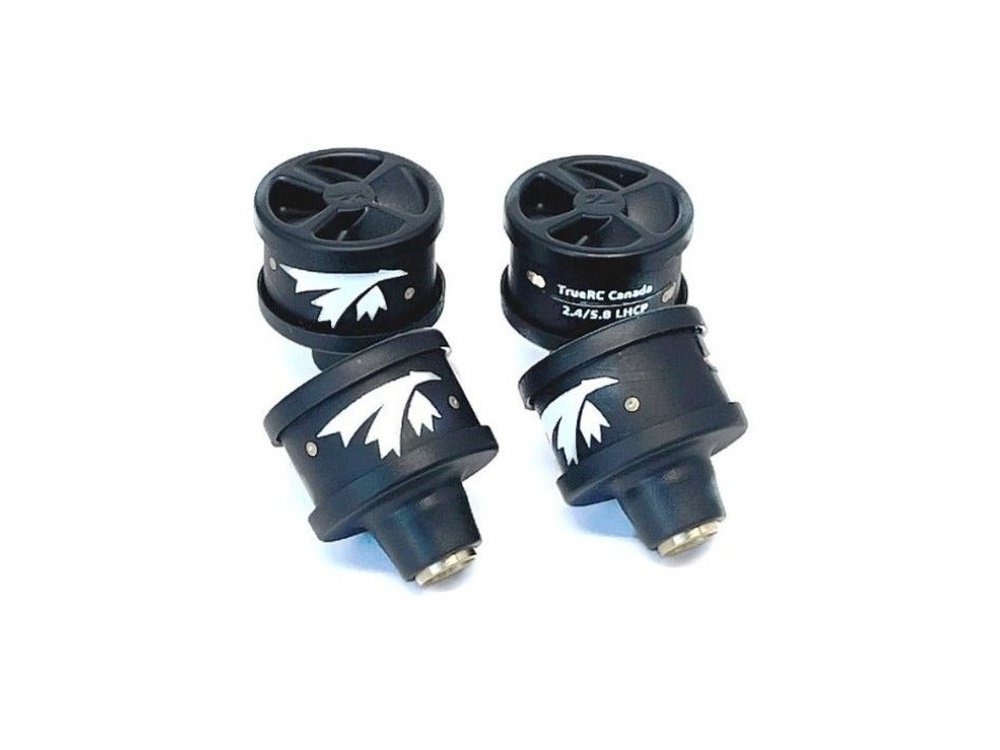

TrueRC Duality 2.4/5.8 Stubby Antennas for DJI

  • $24.99
    Unit price per

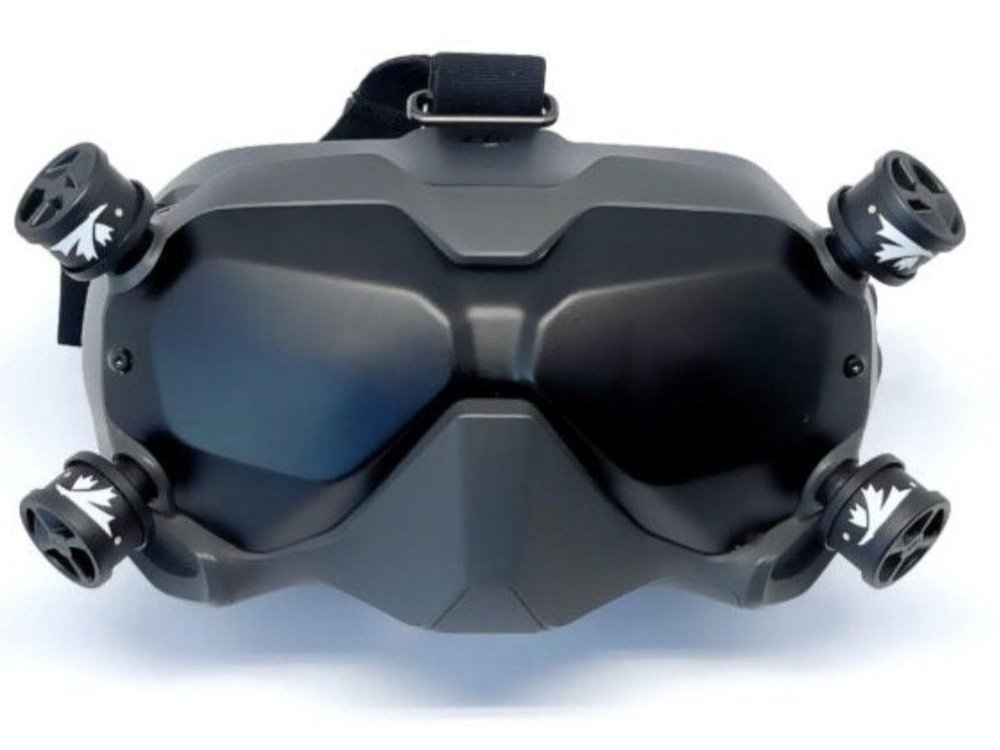

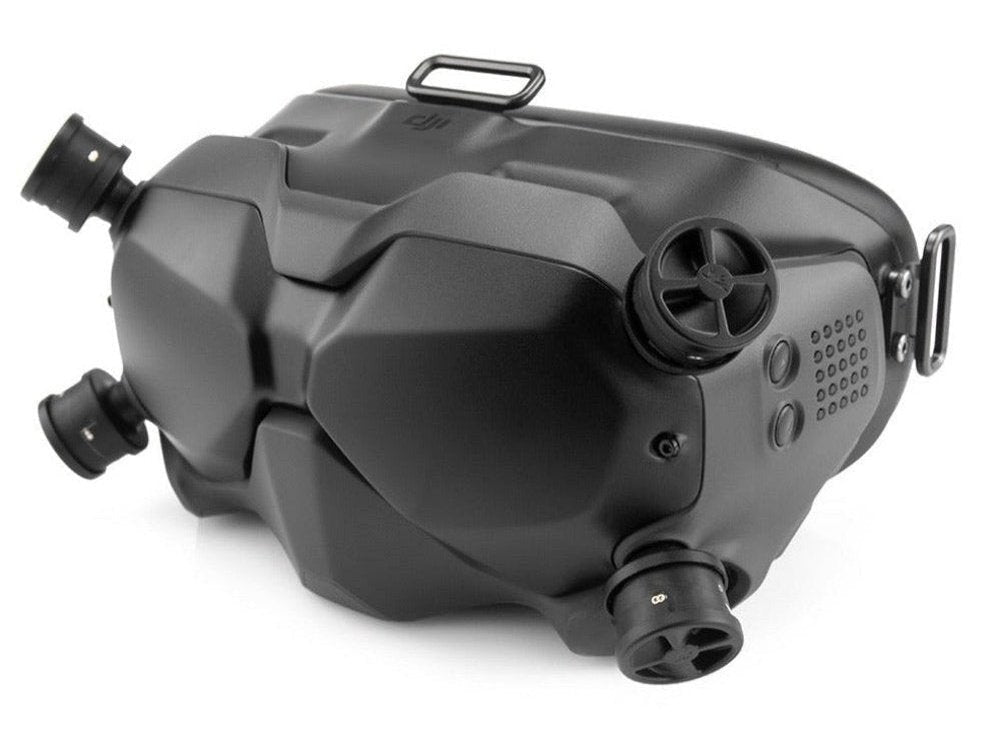

TrueRC never stop! The duality is a dual-band circularly polarized omni antenna covering both 2.4 and 5.8GHz bands in a single compact stubby package. Drop-in fit on the DJI FPV Goggles V2* allows the user to leave them on at all times, thanks to a much lower profile than the stock linear antennas.

Specifications:

  • Gain: 1.7dBic @2.4GHz, 2.8dBic @5.8GHz
  • Polarization: LHCP
  • Cross-Polar Rejection: -15 to -30dB, (2.2%)
  • Bandwidth: 2.39GHz-2.52GHz & 5.6GHz-6.1GHz
  • Radiation Efficiency: 99%
  • SWR: <=1.5:1
  • Weight: 5.25g
  • Dimensions: 23.3mm dia. X 22.0mm height
  • Connector: RP-SMA

**The Duality can be used on the DJI FPV goggles V1, however, they won’t make use of the 2.4Ghz band

***Goggles not included

Includes:
TrueRC Duality 2.4/5.8 Stubby Antennas for DJI
