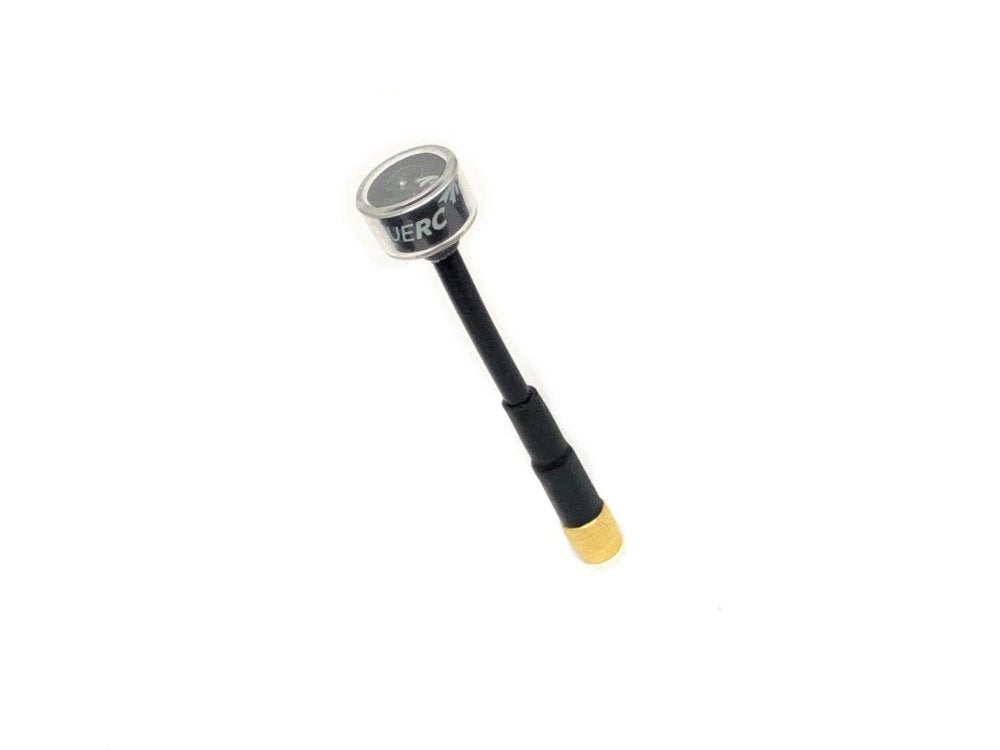

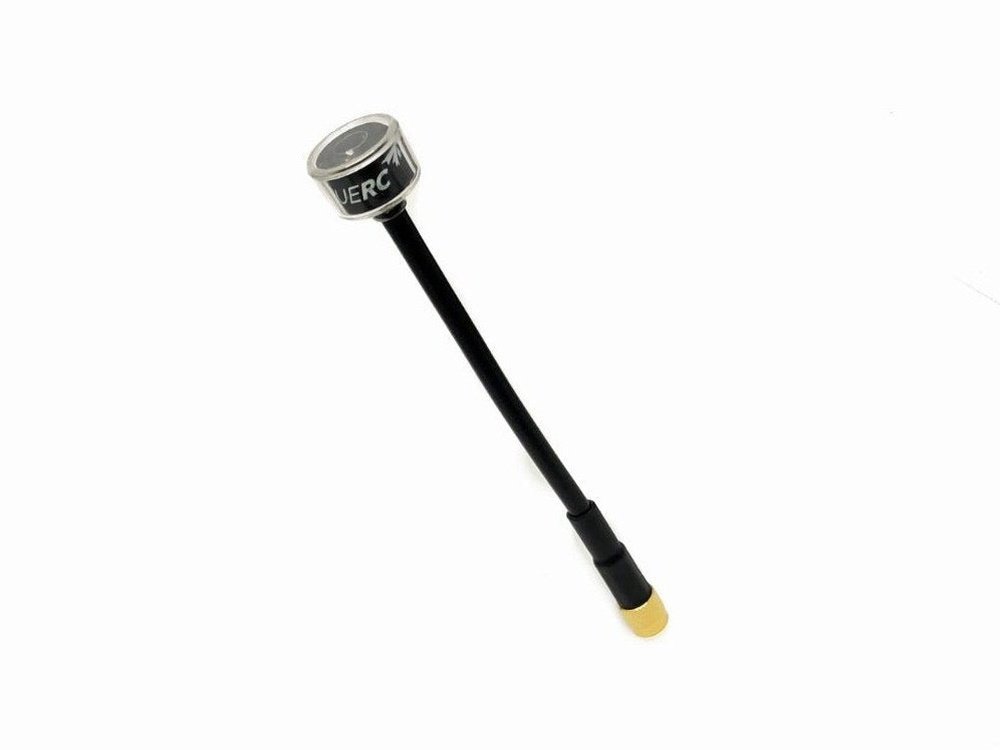

TrueRC OCP 5.8GHz SMA Antenna

  • $12.99
    Unit price per


The OCP 5.8 is TrueRC's new everyday omni antenna. Proven design, great signal, durable and looks amazing. Available in 2 different lengths.


  • Durable polycarbonate, Injection Molded, ultra-sonically welded Housing
  • A clear indication of polarization direction
  • Excellent axial ratio and efficiency
  • Flexible coax cable option that deflects impacts
  • Knurled True-SMA for easy tightening


  • Gain: 1.6dBic
  • Polarization: RHCP
  • Cross-Polar Rejection: -10 to -20dB, (3.2%)
  • Bandwidth: 5.6GHz-6.0GHz
  • Radiation Efficiency: 98%
  • SWR: <=1.2:1
  • Weight: Vary with connector/cable option
  • Dimensions(head): 16.5mm dia. x 10.7mm height.
  • Length: Vary with cable option
  • Cable: TrueRC RG316S/RG402/RG178 coax
  • Connector: Reinforced True-SMA

1x TrueRC OCP 5.8GHz SMA Antenna
