TrueRC X-Air MK II 5.8GHz LHCP Antenna for DJI

  • $59.99
    Unit price per

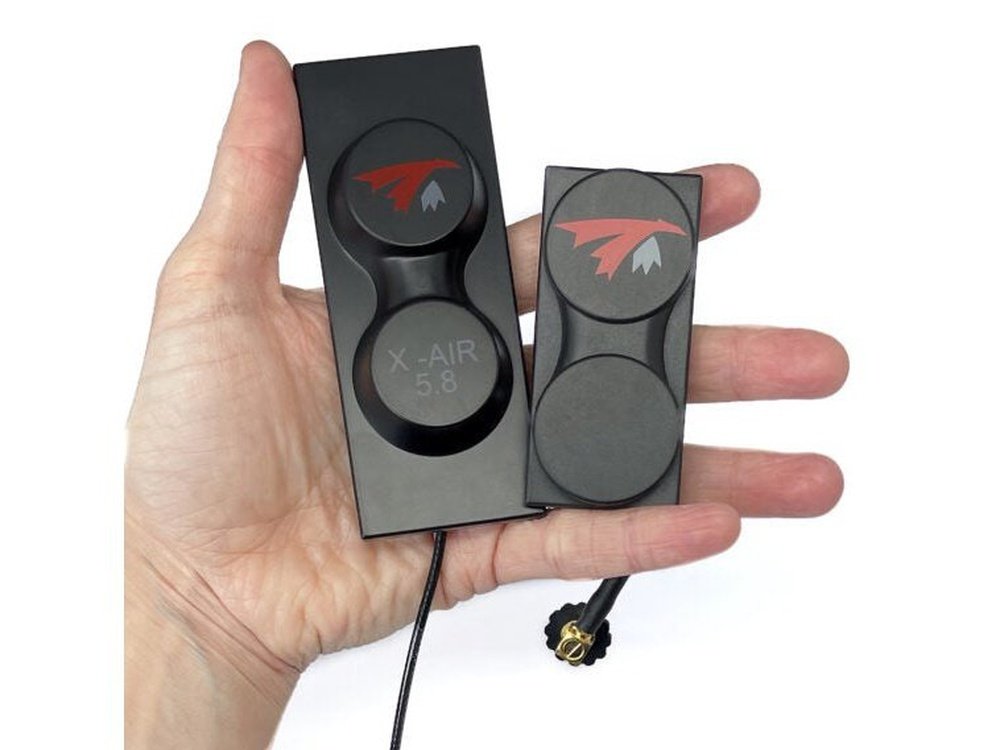

The immensely popular X-AIR for DJI FPV is redesigned in this new, more compact, version. Same great performances with much less footprint. Easier to pack-up when mounted and allowing more uptilt angle.

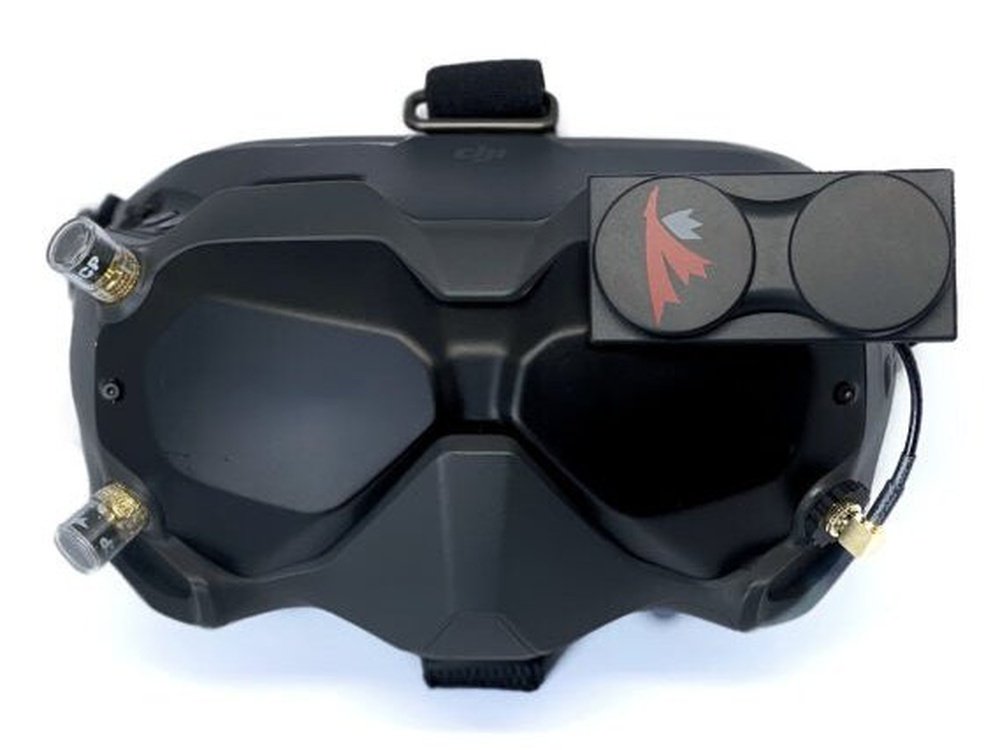

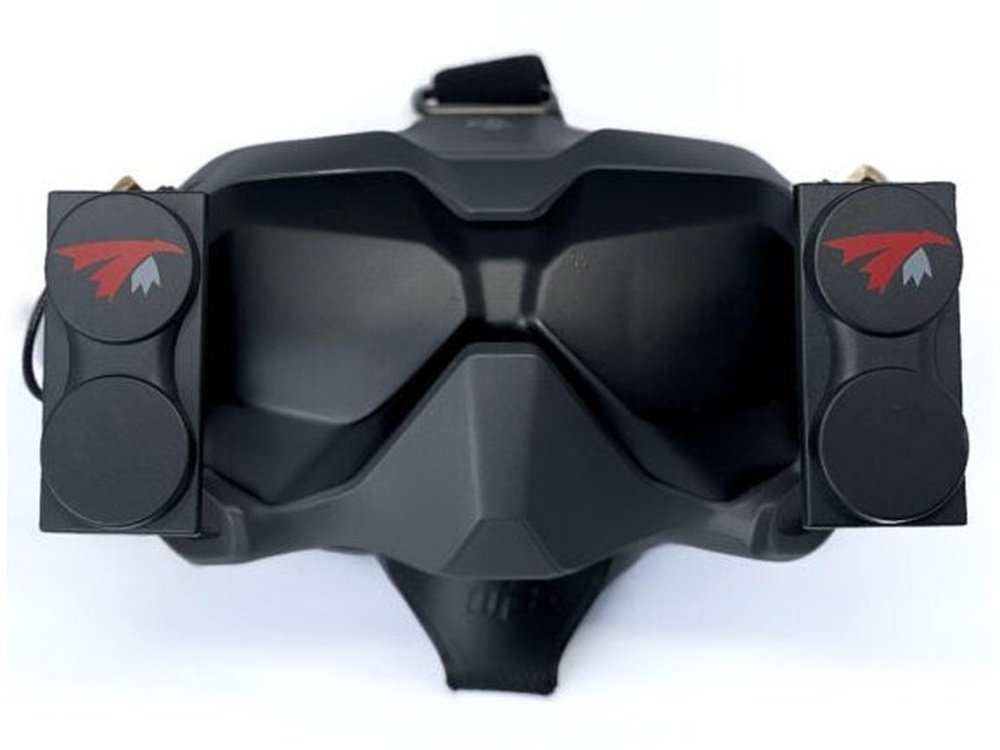

The X-AIR MK II for DJI installs on the two left or right antenna ports in either vertical or horizontal positions. The horizontal position allows up to 80deg up tilt so even if you tend to look at the ground while flying, you can keep the antenna aiming forward.


  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 9.5-10.5 dBic
  • Polarization: RHCP or LHCP
  • Beam-width*: 120deg 1
  • Beam-width @-3dB**: 68deg. ‘
  • Connector: SMA male
  • Dimension: 32 x 72 x 16mm
  • Weight:
  • Include all hardware to mount on DJI FPV goggles.

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
***Goggle not included

1x TrueRC X-Air MK II 5.8GHz LHCP Antenna for DJI
