TrueRC X-Air MK II 5.8GHZ RHCP SMA Antennas

  • $29.99
    Unit price per

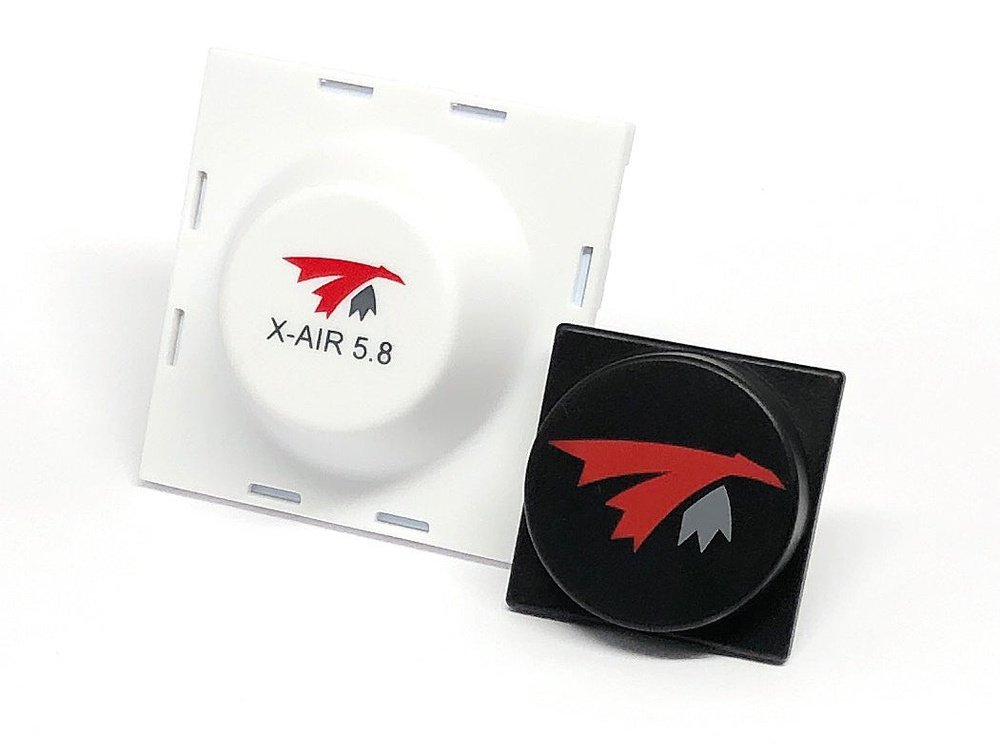

The X-AIR 5.8 Mk. II is TrueRC's latest redesign of the X-AIR 5.8 antenna. Featuring aerospace-grade PCB material and the latest computer-aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage, and high axial ratio make it perfect for far-off ventures without antenna aiming adjustments.  Mount it right on any goggles with the included low loss 45deg adapter.

Specifications:

  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 9.5-10.5 dBic
  • Polarization: RHCP
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg. ‘
  • Connector: SMA male
  • Dimension: 32 x 32 x 16mm
  • Includes low loss 45deg SMA adapter

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Includes:
1x TrueRC X-Air MK II 5.8GHZ RHCP SMA Antennas
