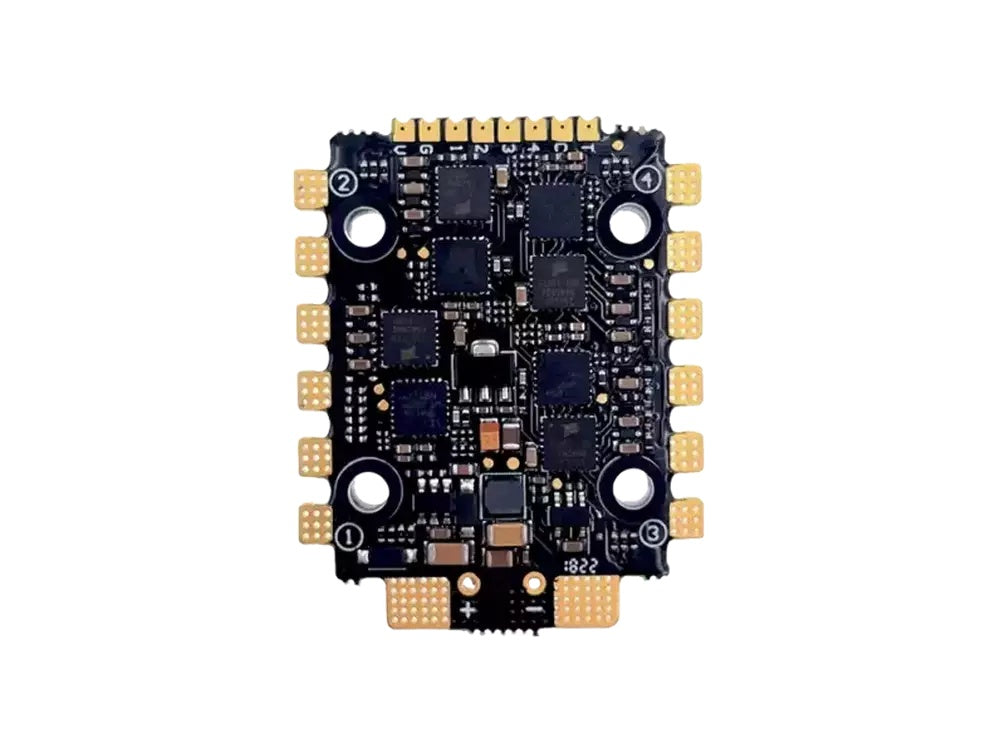

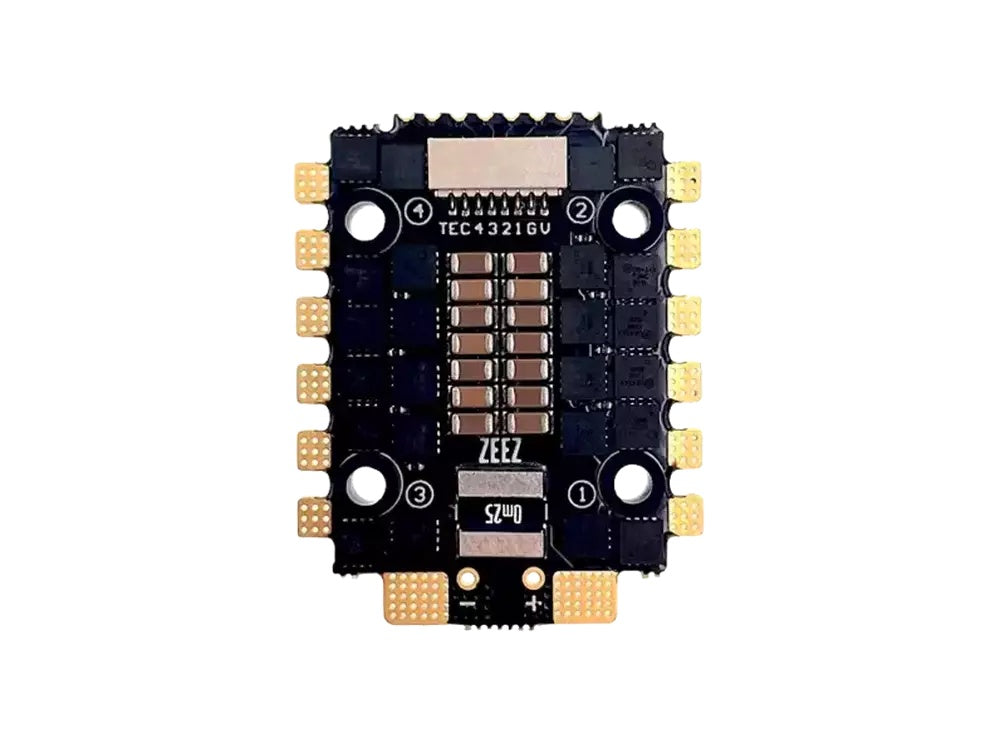

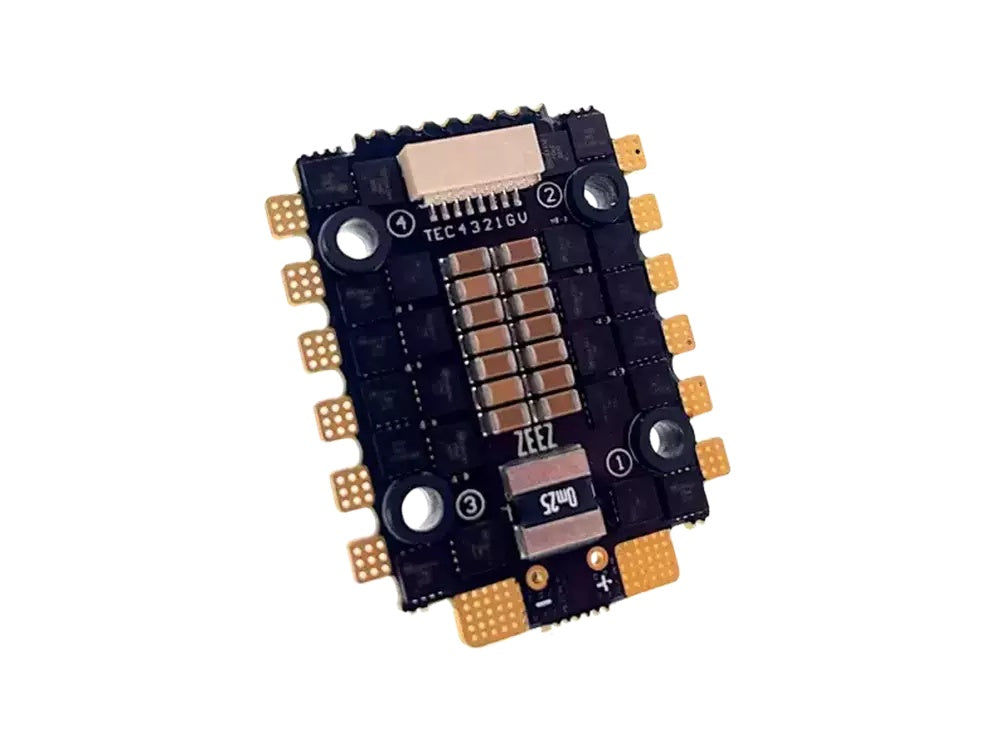

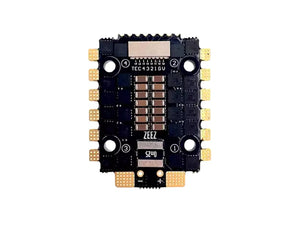

Zeez RC 45A BLHeli_32 2020 4-In-1 ESC V3

  • $69.99
    Unit price per
  • Save $10.00



The ZEEZ 45A 4-in-1 ESC is an improved version of last year’s 2020 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.

The ZEEZ 45A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32G0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).

We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance.

Specifications:

  • LiPo Power input: 3S-6S
  • Continuous Current: 45Ax4
  • Burst Current: 55Ax4
  • Input wires: 14AWG-130mm* (Red/Black)
  • Output Wire: solder pads and 8P connector
  • High-Quality MOSFET 30V rated with RDS(on) 1.3 mΩ
  • Mounting holes: 20x20mm
  • ESC Firmware: BLHeliSuite32
  • Firmware: BLHeli_32
  • Current Sensor Scale:  250

Zeez RC 45A BLHeli_32 4-In-1 ESC V3

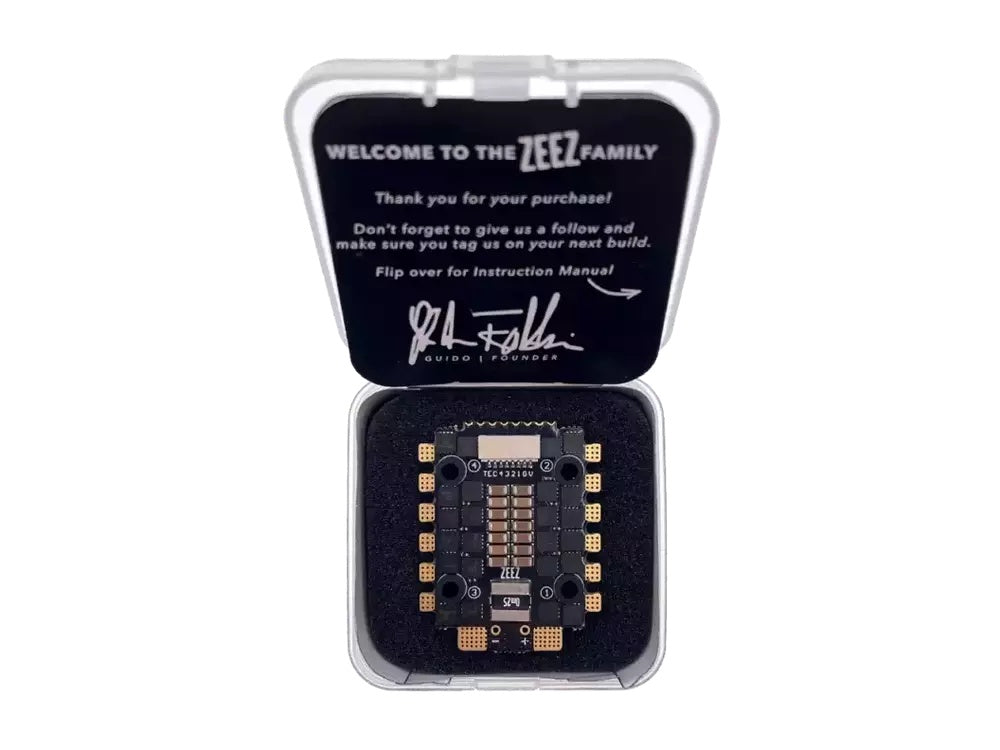

Includes:
1x Zeez RC 45A BLHeli_32 2020 4-In-1 ESC V3
4x Aluminum Standoff
1x ESC to Flight Controller 8 Pin to Servo Connector JST SH 1mm Connector
2x 470uF 35V Low ESR Capacitor
1x XT60 with 12AWG Silicon Cable for Battery Connection
