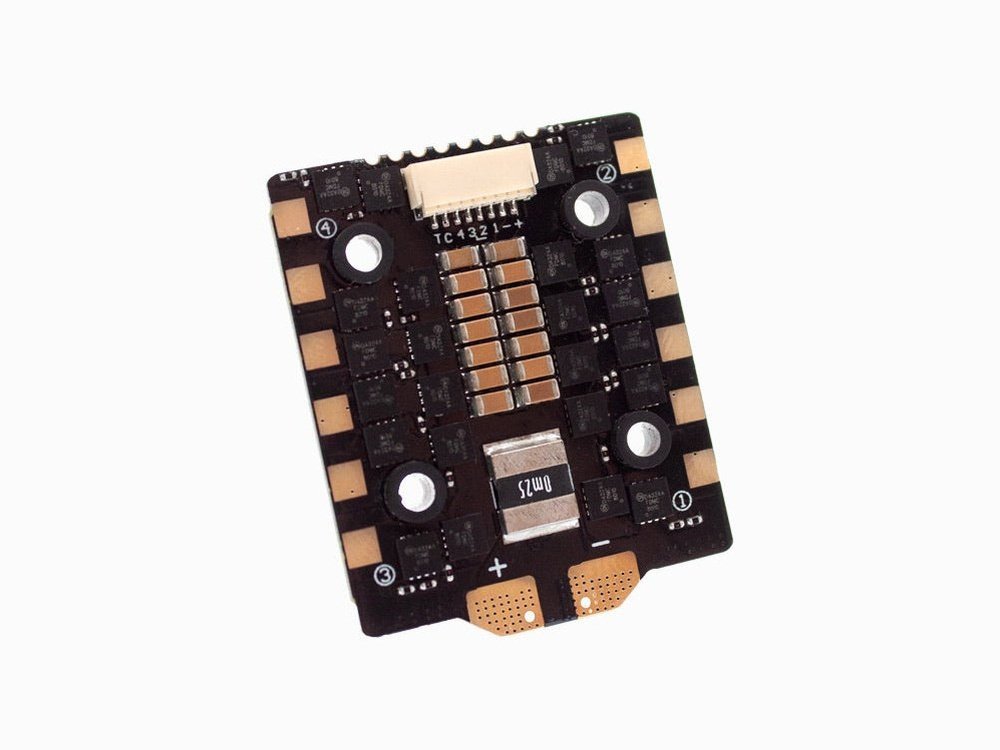

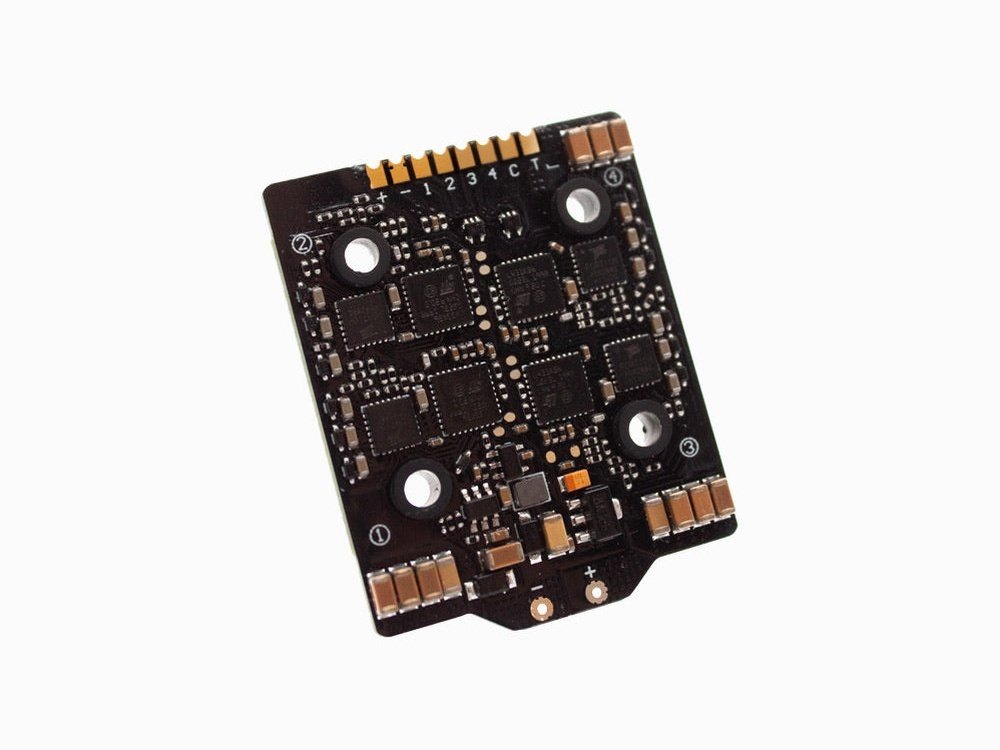

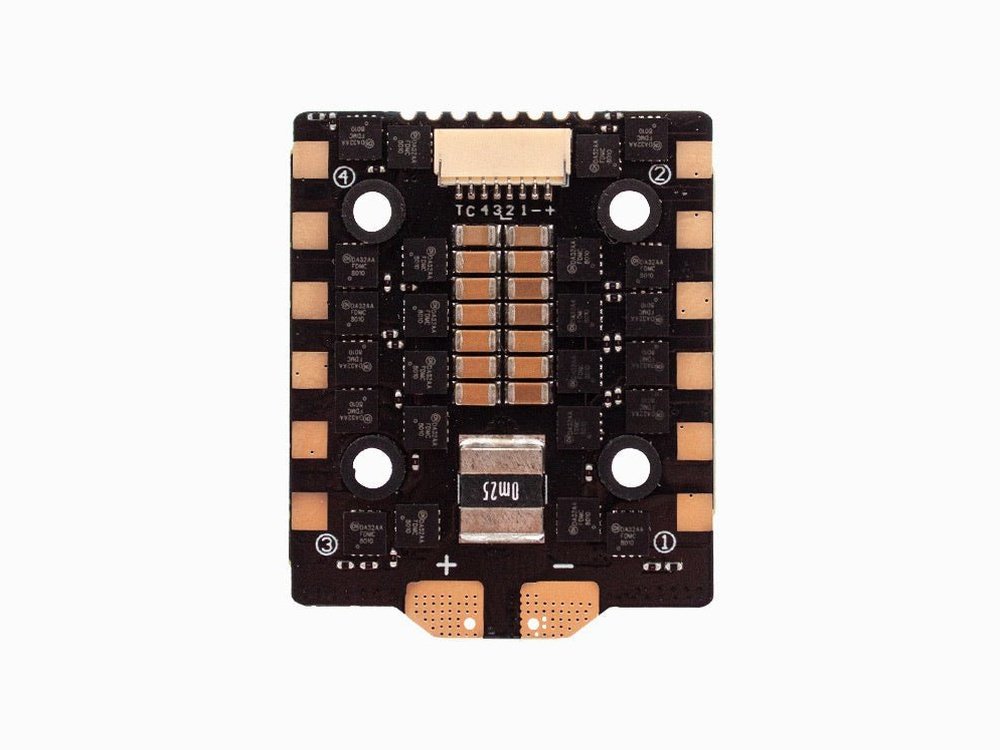

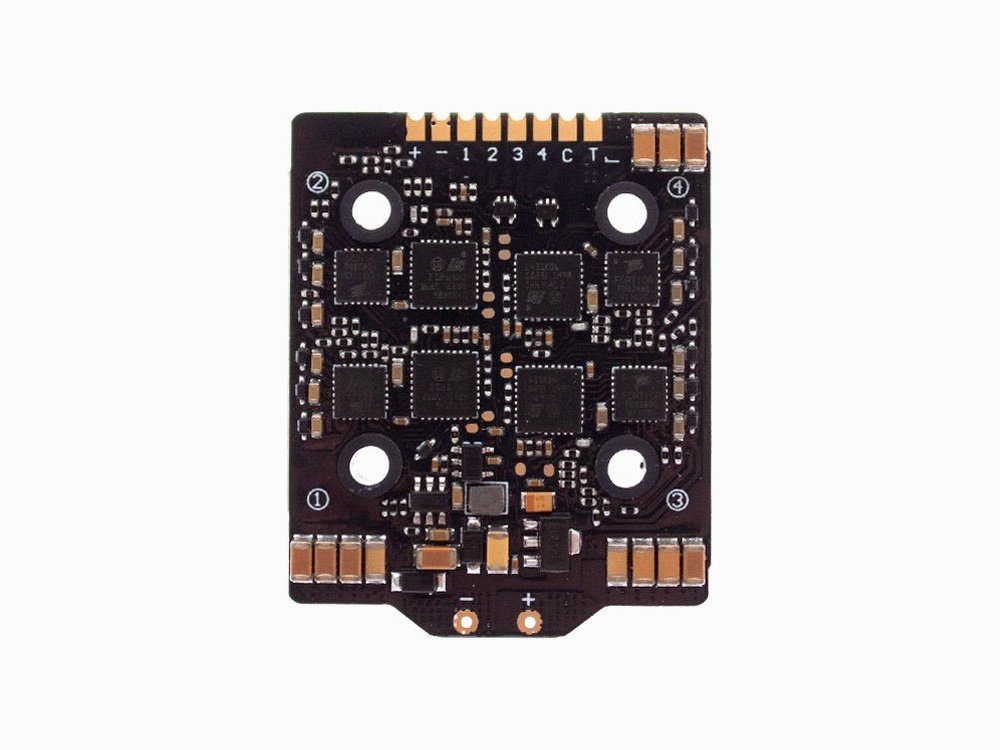

The Zeez 45A 4-In-1 ESC is an improved version of last year's 2020 ESC. All the positive feedback from users around the world along with new advancements in technology has allowed Zeez RC to truly raise the bar.
The Zeez 45A 4-In-1 ESC comes with the fastest MCU available at this time. It is fully supported by BLHeli_32 firmare. The STM32L4 is 12% faster than the older STM32F3 found in many other ESCs and is 67% faster than the STM32f0. It supports bi-directional DSHOT and all digital protocols (Dshot150, Dshot300, Dshot600) out of the box. It supports 96KHz PWM driver frequency to the MOSFETs whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).
Zeez has taken advice from both veterans and newer pilots and have improved the solder pads by giving them more clearance.
- LiPo Power input: 3S-6S
- Cont.Current: 45Ax4
- Burst Current: 55Ax4
- Input wires: 14AWG-130mm* (Red/Black)
- Output Wire: solder pads and 8P connector
- High Quality MOSFET 30V rated with RDS(on) 1.3 mΩ
- Mounting holes: 20x20mm
- ESC Firmware: BLHeliSuite32

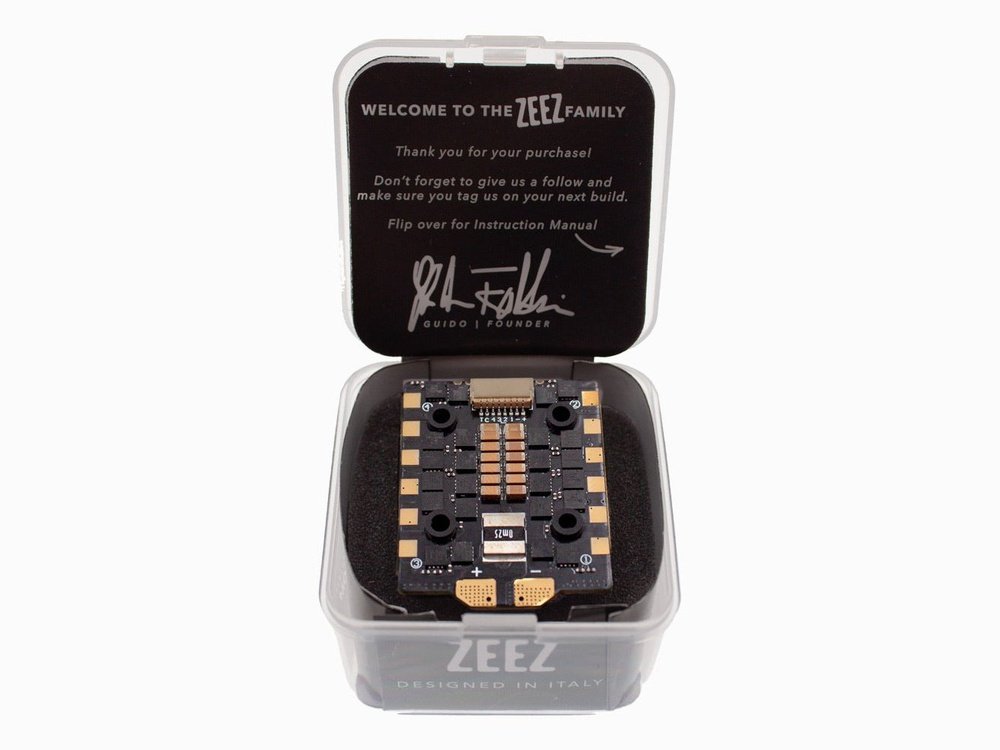

1x Zeez RC 45A BLHeli_32 4-In-1 ESC V2
4x Aluminum Standoff
1x ESC to Flight Controller Connector JST SH 1.00mm

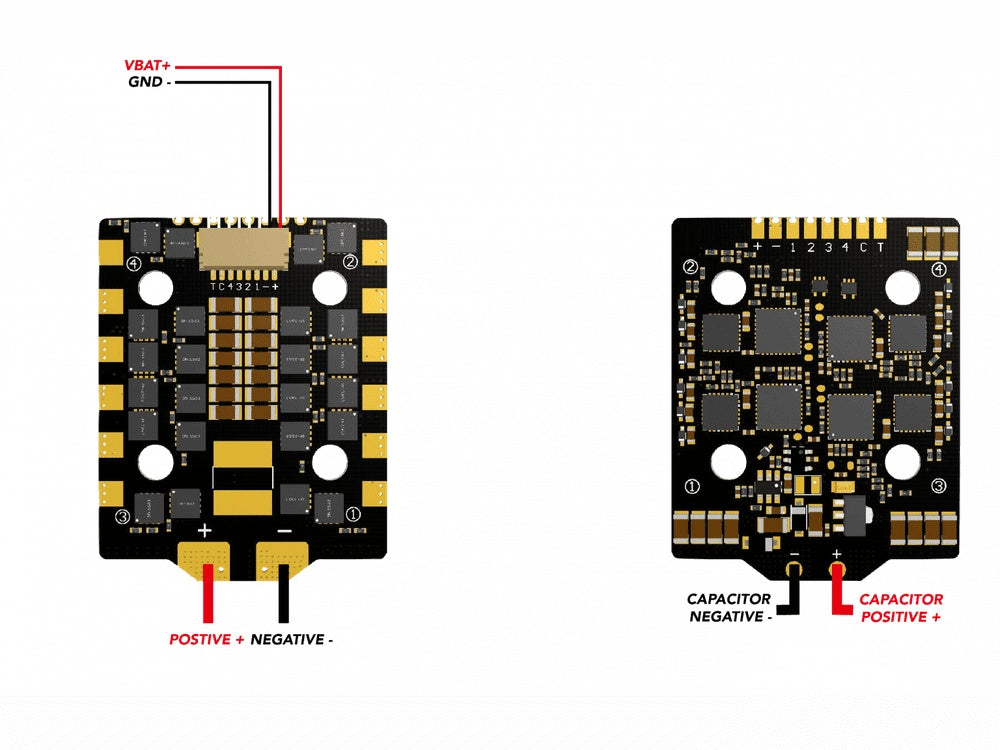

2x 470uF 35V Low ESR Capacitor
1x XT60 with 12AWG Silicon Cable
