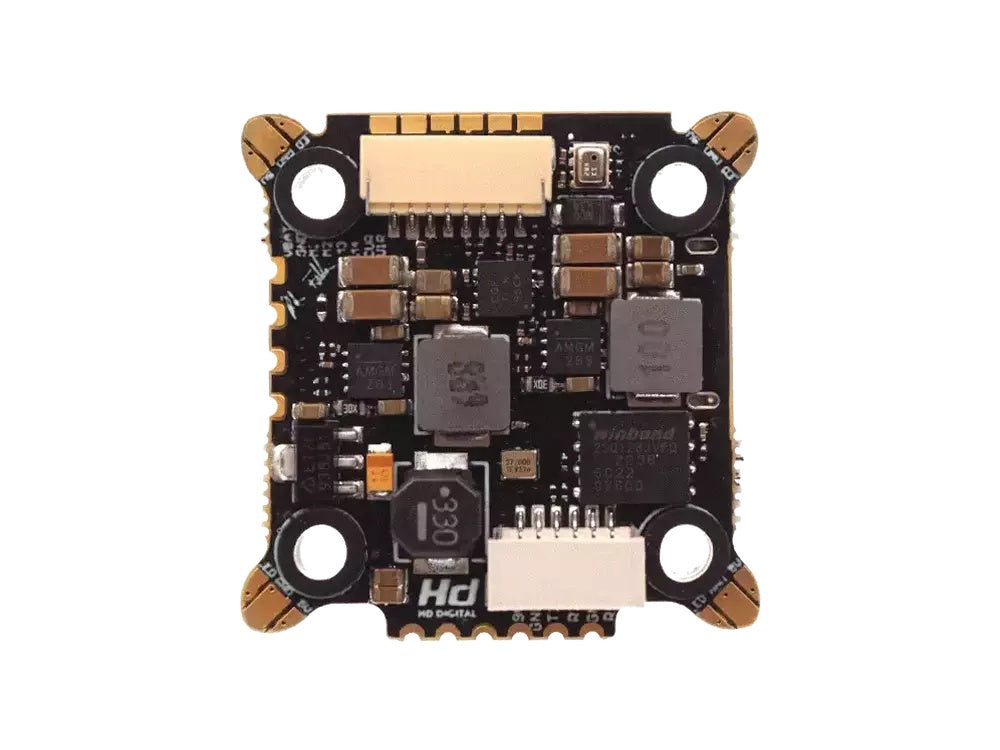

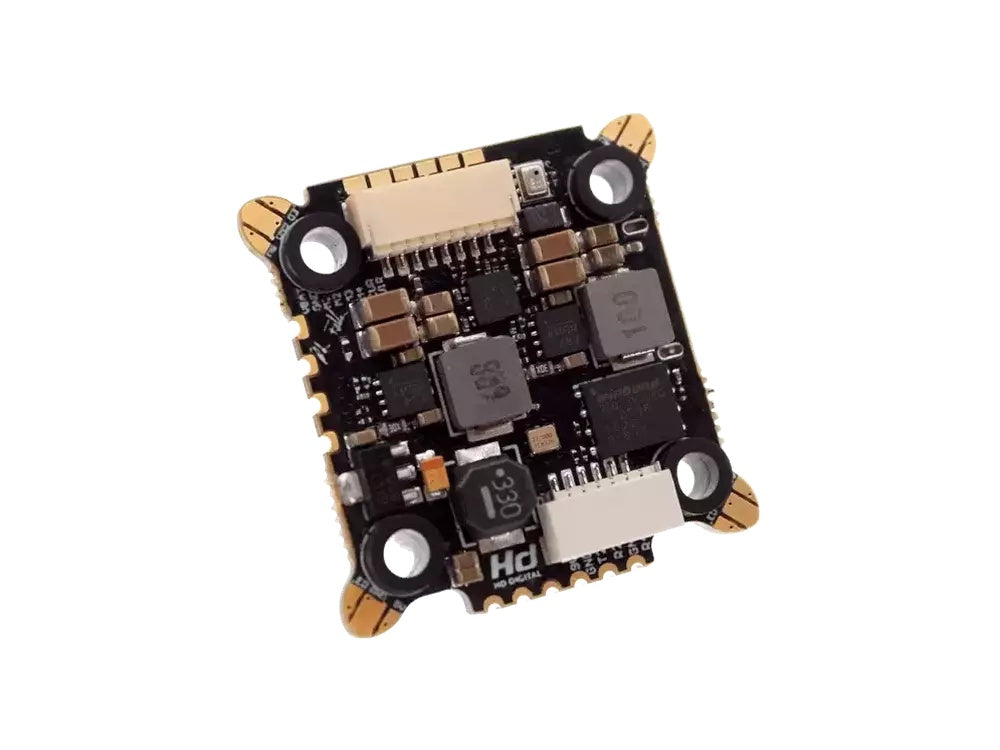

The ZEEZ F7 V2-Lite 2020 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit and a 5V@3A regulator to power all the peripheral. It has almost the same specs and features of its big brother, the 3030 version, but without a barometer and in a more compact format.
It uses a powerful F7 processor along with top-of-the-line hardware with an MPU6000 Gyro. ZEEZ F7 V2-Lite 2020 comes in a standard 20×20 form factor. It comes with spaces and pads for TBS Crossfire and TBS Unify Nano32 for a very clean and low-profile assembly. It has 4 onboard RGB LEDs and easy-to-solder LED pads on each corner. There are 5 UARTS available as well as an I2C port, 16MB Flash memory for Blackbox data record, an OSD chip for analog video, and LC Filter to power the Analog camera and VTX
We took all the feedback given to us from the previous version and have improved the overall stability and power supply cleaning. We were able to reduce the size of the FC, thanks to its 6 layers design. Along with easier to solder pads and improved the strength of all the solder pads, adding additional copper around the pads.
- Mounting holes: 20x20mm
- LiPo Power input: 3S-6S
- BEC 5V-3A / 9V-3A

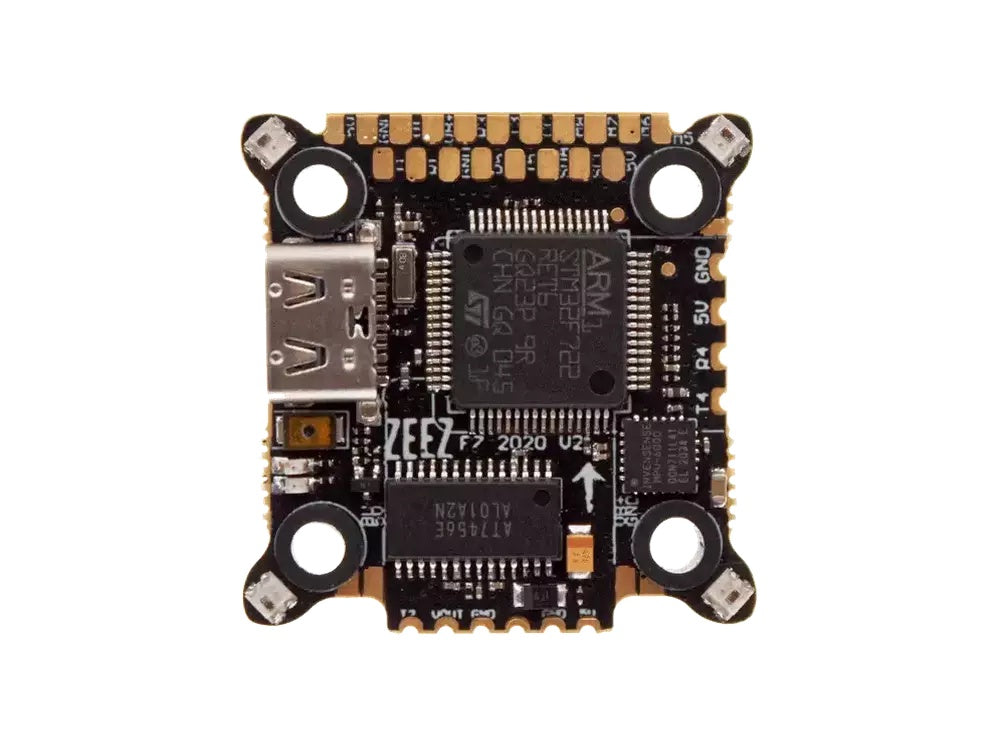

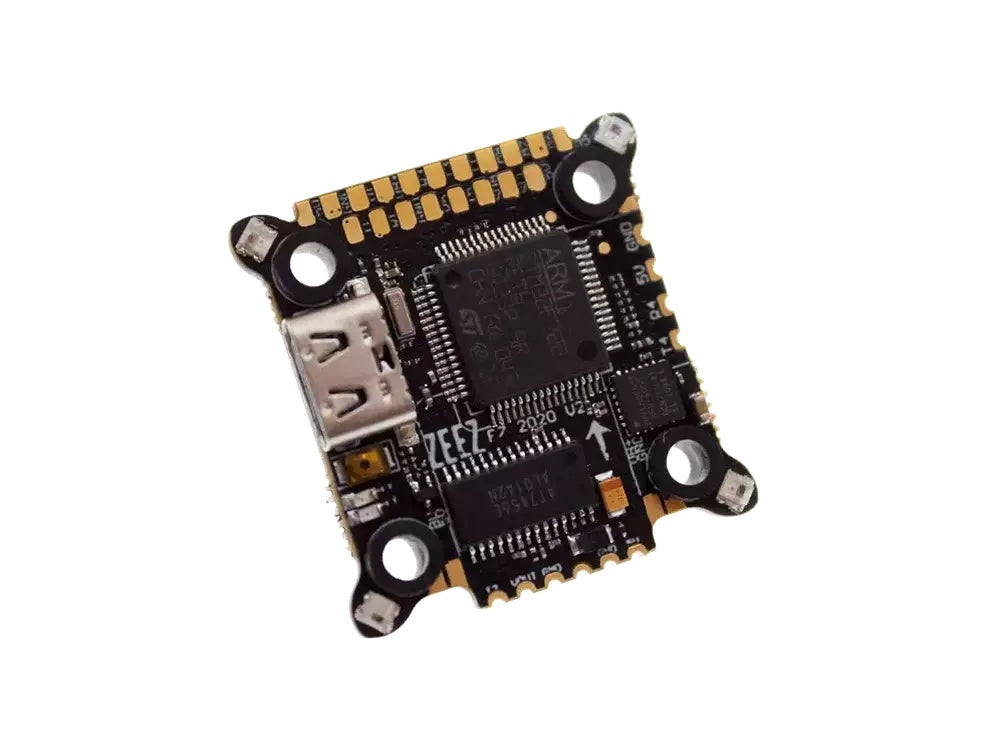

- STM32F722 MCU (216MHz max frequency)
- MPU6000 Gyro/ACC for smooth performance
- OSD chip Onboard
- 5 x UARTs
- 1 x I2C bus
- 16MB Onboard flash
- LC Filter for 5V VTX and CAM
- HD Plug for DJI AirUnit or CaddxVista
- USB Type C connector
- Onboard RGB LED distribution for clean wiring to the LED on the arm of the quad.
- Onboard 4 WS2812B RBG LED
- 8 Motor output
- Direct solder connection and board space for TBS Nano RX and TBS Unify Pro32 Nano providing the ultimate in clean stack installation.
- Logic Side and USB current protection

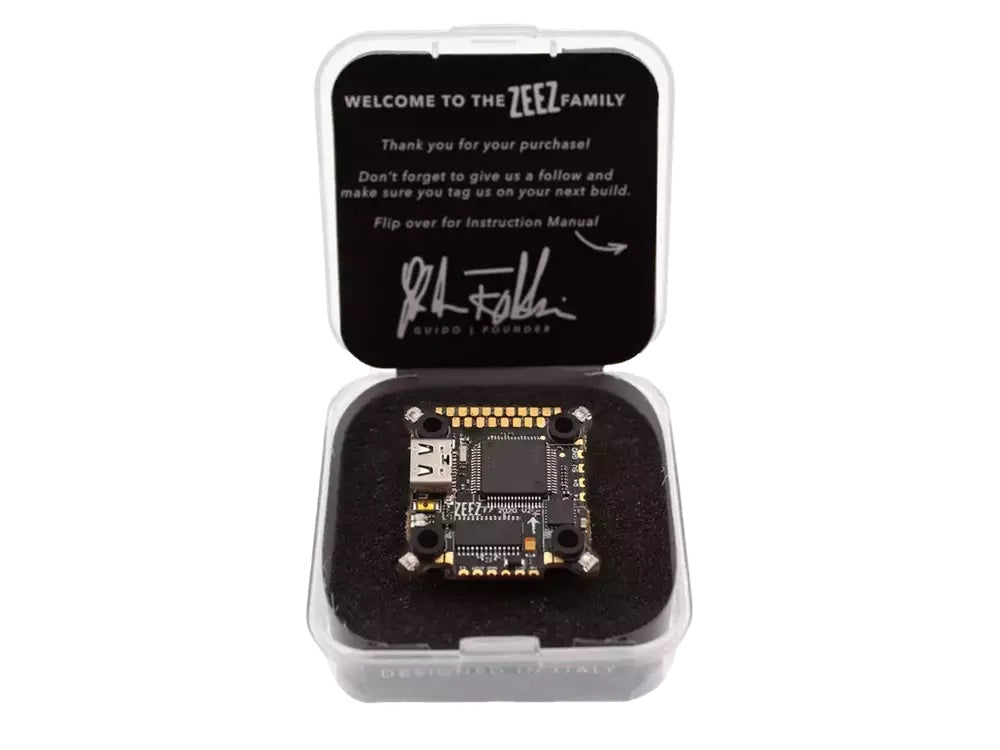

1x Zeez RC F7 2020 Flight Controller V2 Lite
4x Aluminum Standoff
4x Aluminum Nut
1x ESC to Flight Controller 8pin to 8pin JST SH 1mm Connector
1x ESC to Flight Controller 8pin to Free Wires (with JST SH Crimp) JST SH 1mm Connector
1x JST SH 8 Pin Plastic Housing
1x JST SH 10 Pin Plastic Housing
2x 2.00mm Header Pin for VTX Connection
2x 2.54mm Header Pin for Receiver Connection
1x JST 5 Pin to Air Unit Connector
