Experience unmatched durability and performance with the DarwinFPV Hulk 45A 3-6S AIO. Its IP67-rated waterproof and dustproof aluminum alloy shell ensures maximum strength, while the advanced heat dissipation technology and conductivity silica gel keep your device running smoothly. Take on any environment with confidence.
Features:
- Great performance: This AIO uses high thermal conductivity silica gel inside, and the aluminum alloy shell to achieve stronger heat dissipation effect; because of this, it has excellent waterproof and dustproof performance, the waterproof level is up to IP67. It can be immersed in fresh water for more than 30 minutes and can be used normally. You can use it in various climatic conditions and harsh environments.
- High reliability and durability: Built-in F411 FC, 6S-45A ESC, ELRS 2.4GHz receiver, each interface on AIO has short-circuit protection function, even if one interface is protected due to some factors, other interfaces can be used normally.
- Rich interfaces: This AIO reserves the plug-and-play interfaces of Analog CAM, Analog VTX, CADDX VISTA KIT air terminal, SBUS Port, and UART1 to meet the needs of different users.
Specifications:
- FC MCU: STM32F411CEU6(100MHz)
- IMU: MPU6500
- OSD: Betaflight OSD AT7456E
- RF Chip: SX1281(2.4GHz)
- Firmware Target: Betaflight_DARWINF4SX1280
- BEC Output: 5V/0.5A x 3 and BAT/0.75A x 2
- Ports: 2x Uarts(1,2), 1x SOFTSERIAL, 1x SBUS(RX1 Inverter)
- ESC MCU: EFM8BB21F16G
- Input Voltage: 3-6S LiPo
- Continuous Current: 45A
- Max Current (5 Seconds): 55A
- ESC Target: J_H_40
- Dimensions: 46.2mmx39.5mmx10mm
- Mounting Hole: 25.5mmx25.5mm(M2)

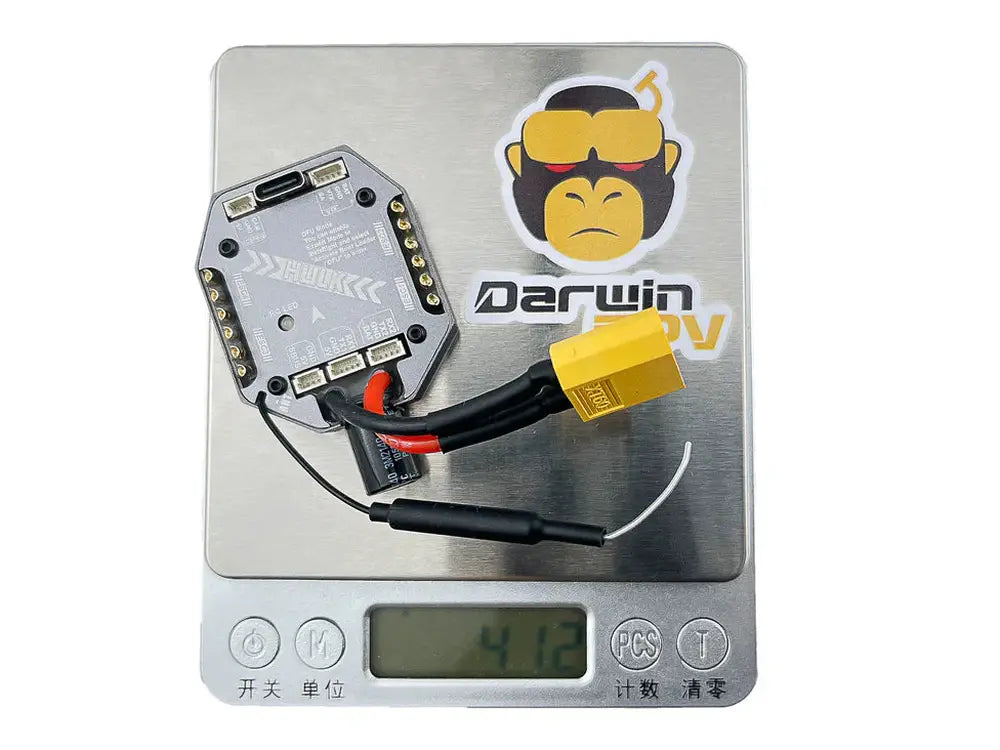

- Weight: 41.5g
NOTE:
- Seawater is highly corrosive, it is not recommended for use in seawater. Please wash it with fresh water immediately and then dry it once drone touched seawater.
- Support 3-6S battery, remember not to plug the battery positive and negative interface in reverse, otherwise it will burn out.
- After receiving the AIO, first connect to computer on Betaflight software to check whether the gyroscope and accelerometer are detected, and whether the gyroscope attitude is normal.
- Increase the throttle in Betaflight software to ensure the normal rotation and correct rotation direction of the 4 motors, and then install the propellers for a test flight; be sure to remove the propellers when pulling the throttle in Betaflight software to avoid accidents.
- After confirming the above precautions without any problems, you can install the propellers and start flying!
Includes:
1x DarwinFPV Hulk 45A 3-6S AIO
5x Spare Cables
7x Screws
3x Type-C Rubber Stopper
7x SH1.0 Socket Plug
1x Sticker
