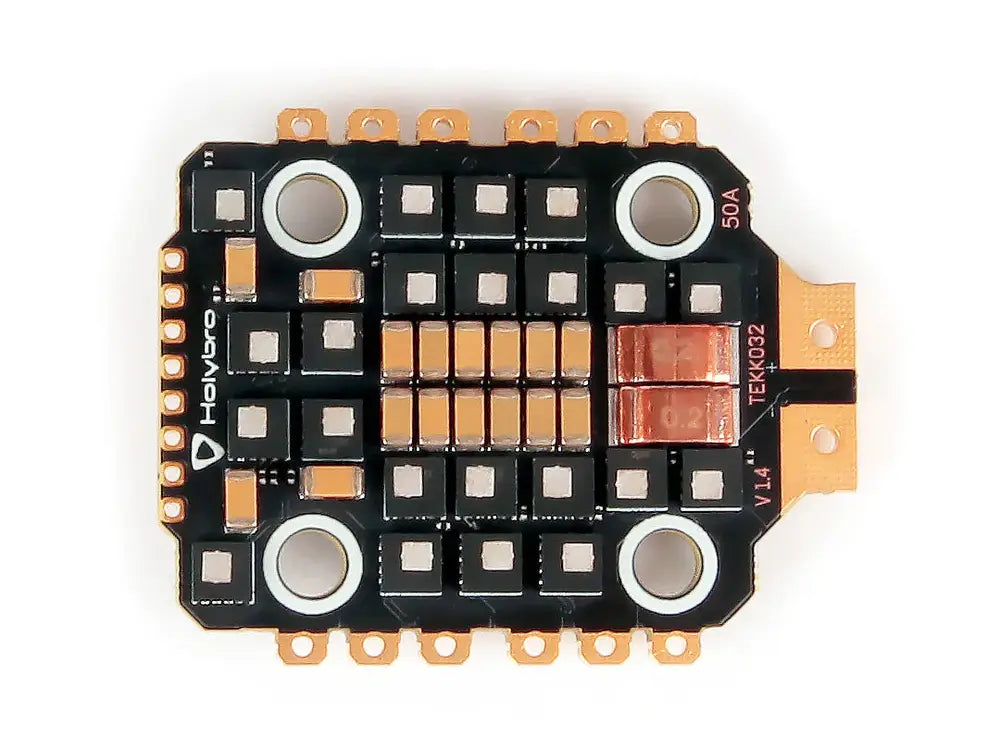

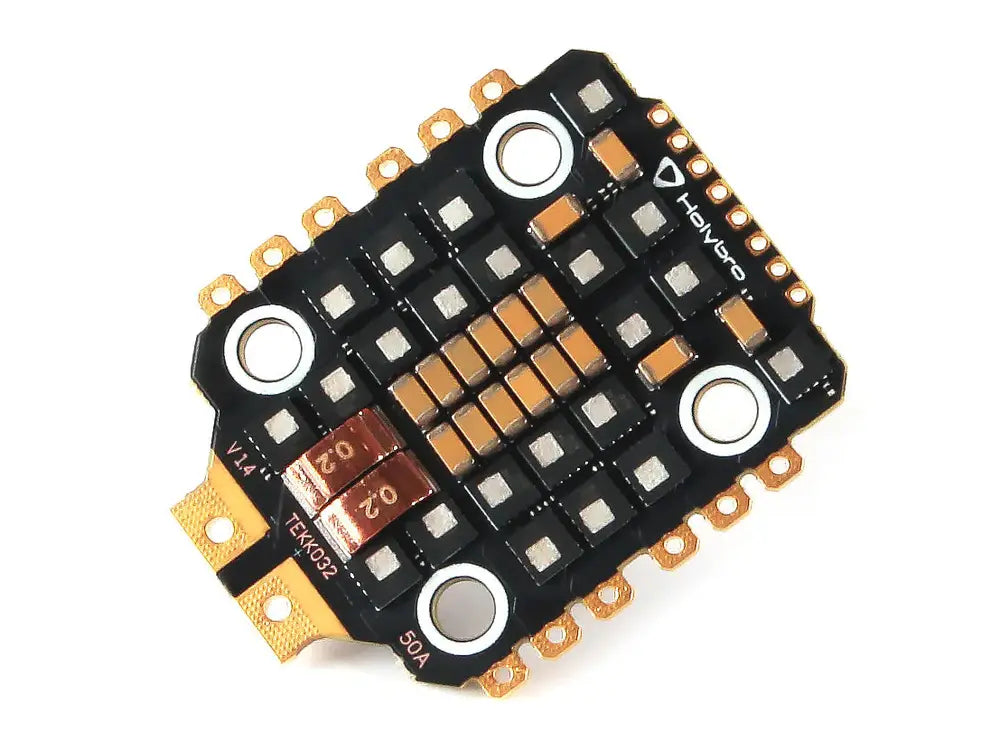

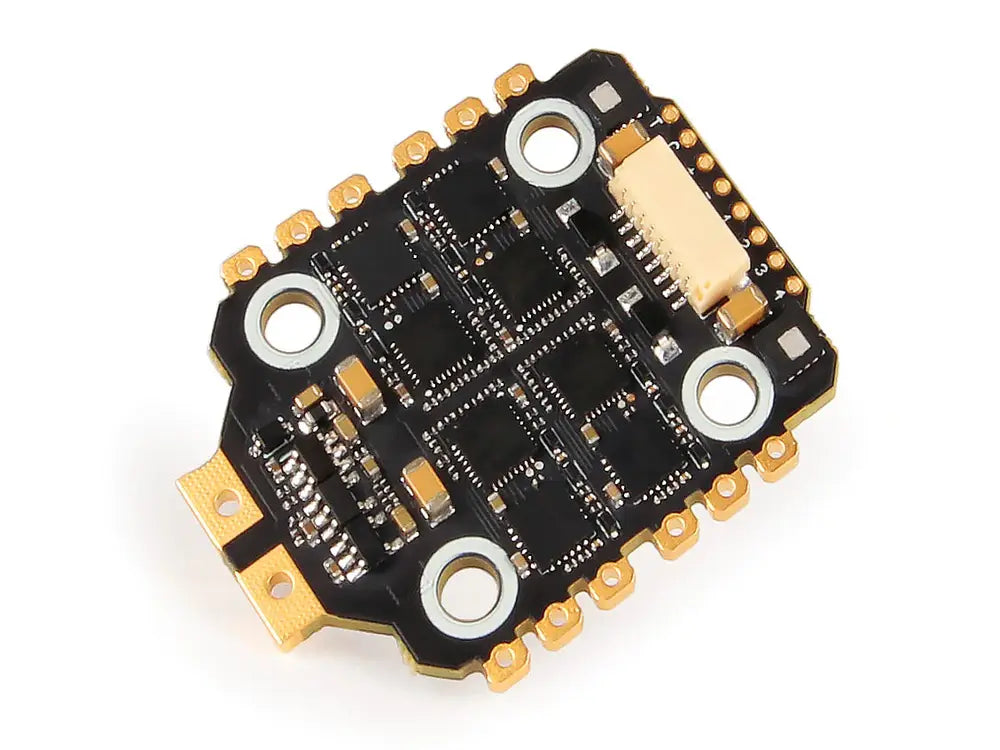

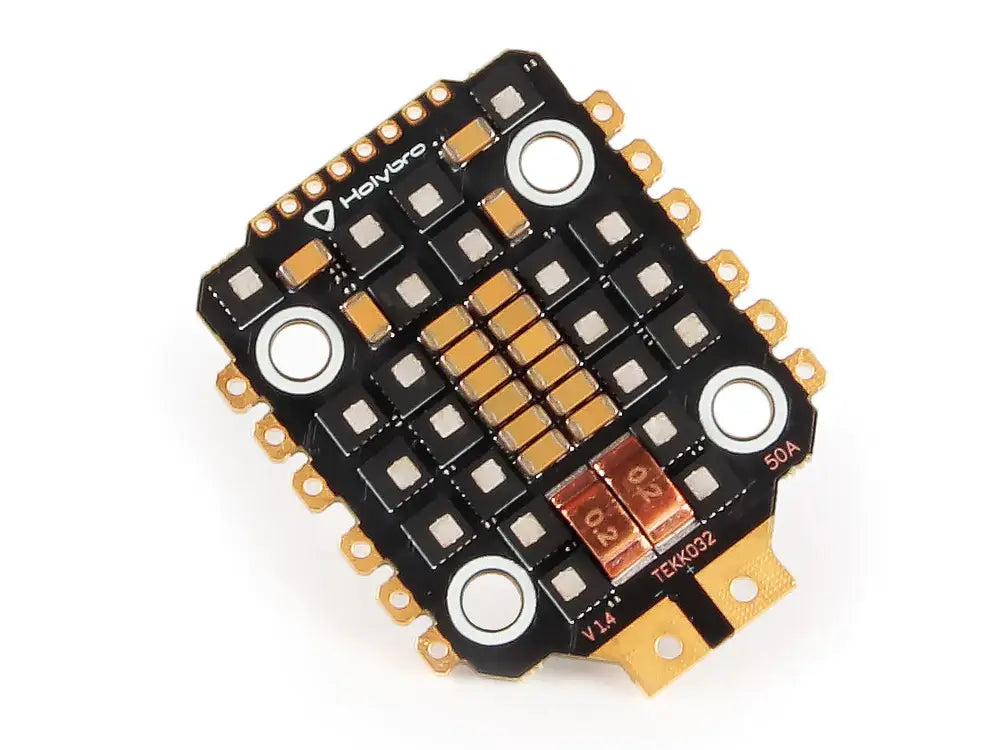

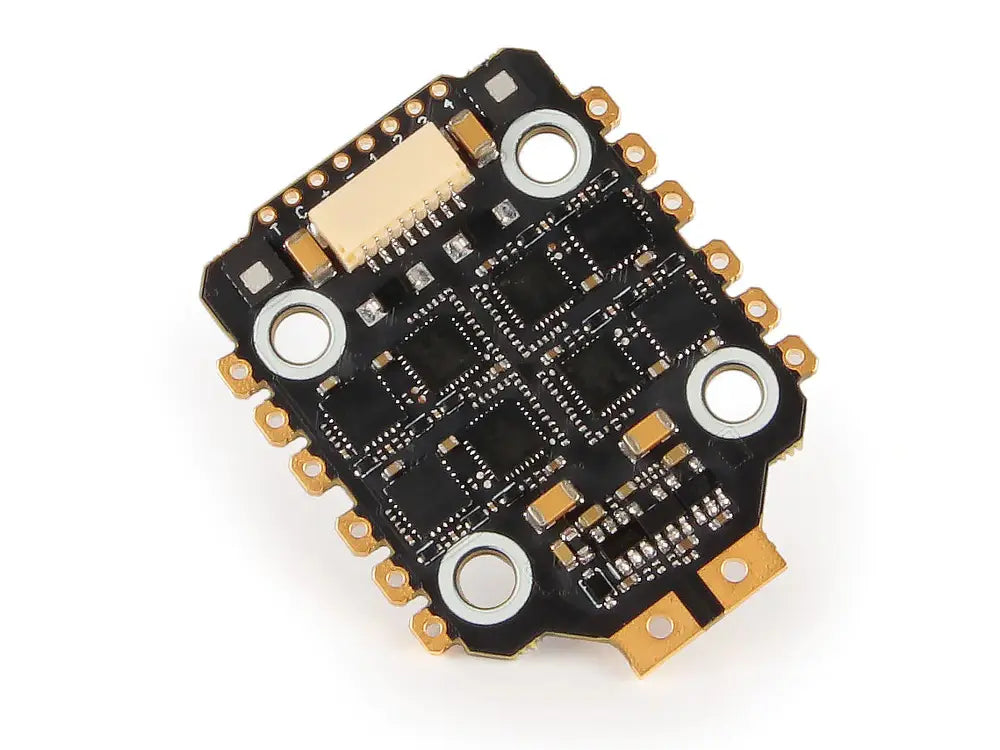

Holybro Tekko32 F4 50A Mini BLHeli_32 4-In-1 ESC



The Holybro Tekko32 F4 50A Mini BLHeli_32 4-in-1 ESC features high-quality MOSFETs for reduced internal resistance and improved heat dissipation. Its F4 MCU allows for smooth performance and faster operation.  With a separate drive & control circuit, expect reduced electrical interference and cleaner power throughout your whole system.

Specifications:

  • Continuous Current: 50A x4
  • Burst Current: 60A x4
  • Battery Supports: 4-6S
  • PWM Frequency: 16k to 96k
  • Supports DShot 150/300/600/1200/2400
  • Supports MultiShot/OneShot/Proshot/PWM etc.
  • ESC telemetry Supported
  • Onboard analog current sensor
  • BLHeli_32 firmware
  • 1000uf 35v capacitor included (highly recommended for 6s setup)
  • Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
  • Dimension: 32 x 40 mm

Pinout:

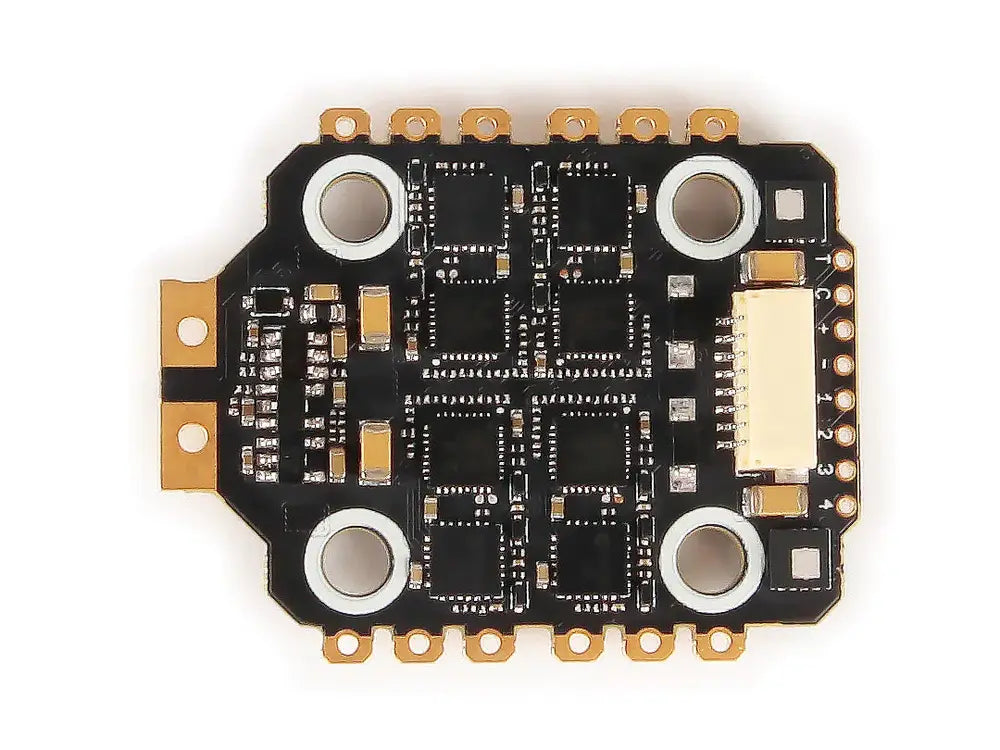

Holybro Tekko32 F4 Mini 4-In-1 ESC Pinout

Holybro Tekko32 F4 Mini 50A 4-In-1 ESCIncludes:
1x Holybro Tekko32 F4 50A Mini 4-In-1 ESC
4x M2 Anti-vibration silicone Grommet Inserts
4x M3 Anti-vibration Silicone Grommet Inserts
1x Electrolytic Capacitor 1000uF 35V
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
