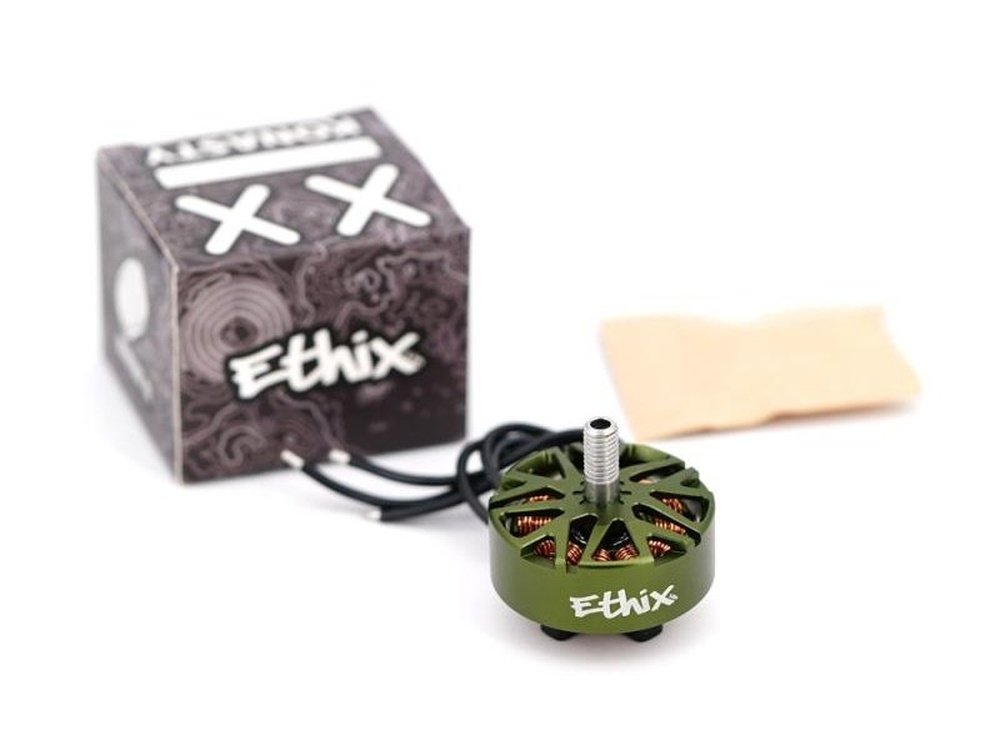

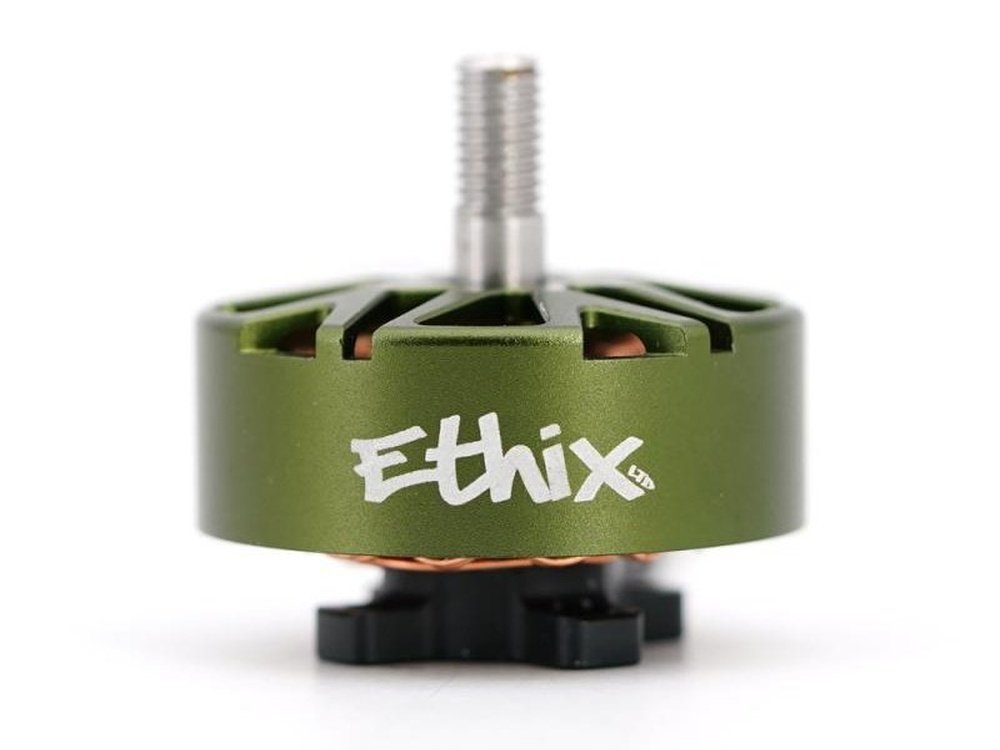

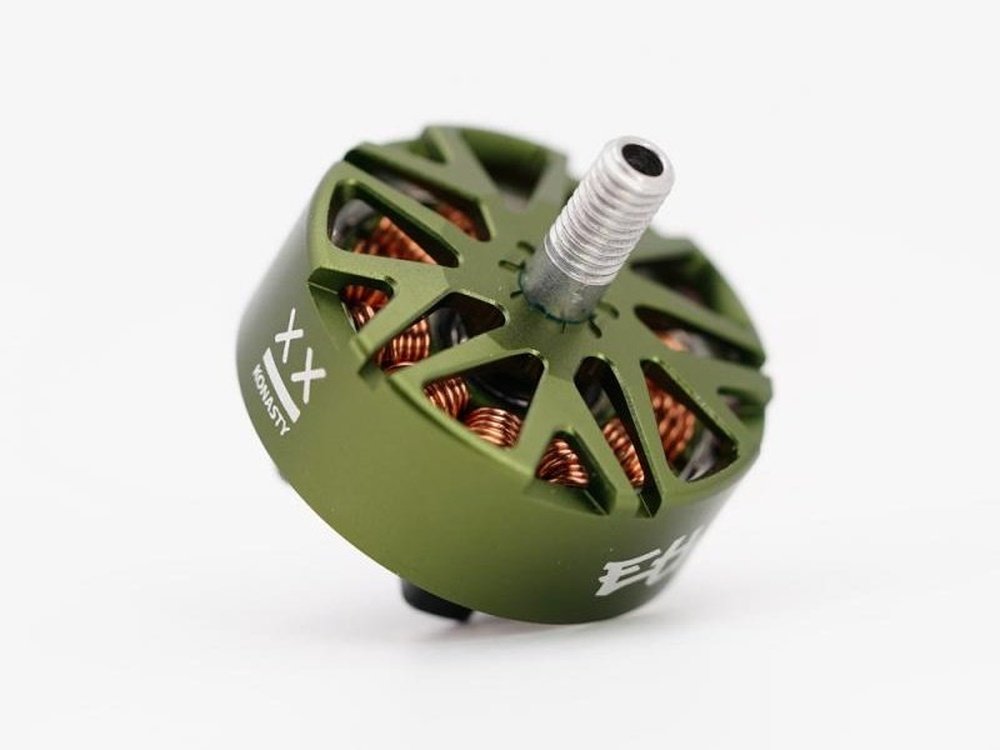

Ethix Konasty Moon Boot V2 2507 2200KV Motors

$26.95
Unit price per

The Moon Boot V2 motor delivers the same smoothness, quality, and efficiency as the original but with added power when you need it on the high end and control when you need it most on the low end. All this is gained with a larger stator size and two KV options to choose from. Whether freestyle, long-range, or cinematic, this motor can do it all.

Specifications:

Stator Size (Diameter): 25mm*7mm
Kv: 2200kv
Magnets: N52SH Curved
Windings: 8turn DLRK
Shaft Length (mm): 11.5mm
Shaft Diameter (mm): 4mm
Shaft material: Steel
Bearing: NSK684
Weight (With Wires) (g): 41g
Cells (Lipo): 6S
Max Current (A): 45A
Max Burst Current (A): 60A
Internal Resistance (Rm): 64mΩ
Wire Spec (AWG): 20#
Base Mounting Pattern: 16x16mm
Base Mounting Thread: M3 Thread
Motor Overall Dimensions: φ31.8mm*19.3mm

Includes:
1x Ethix Konasty Moon Boot V2 2507 2200KV Motors
