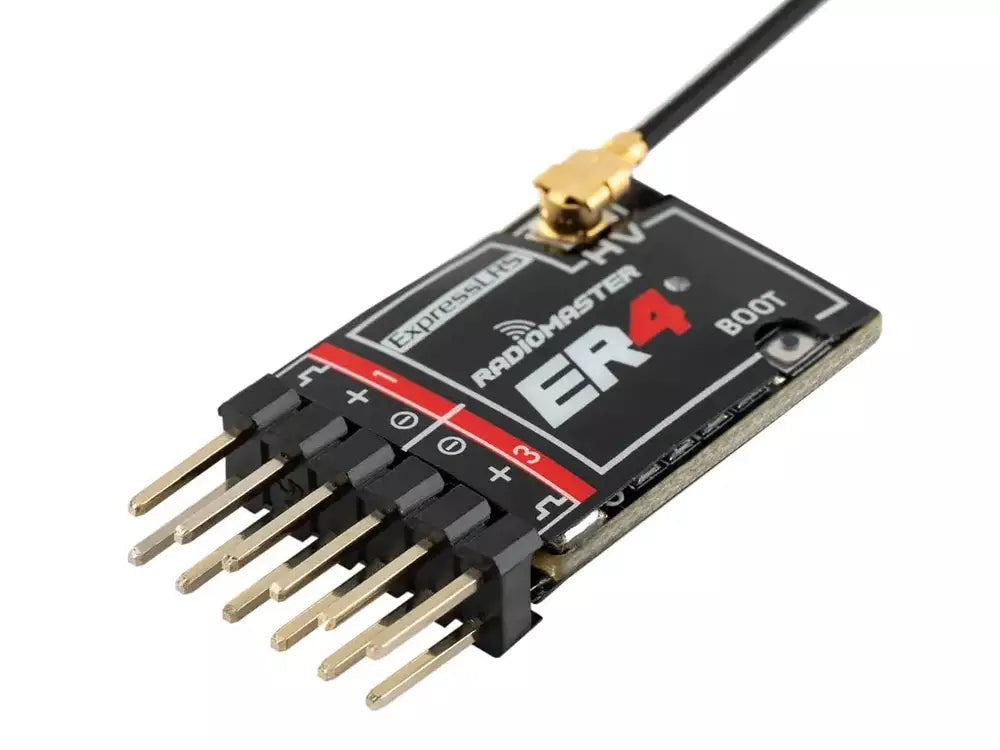

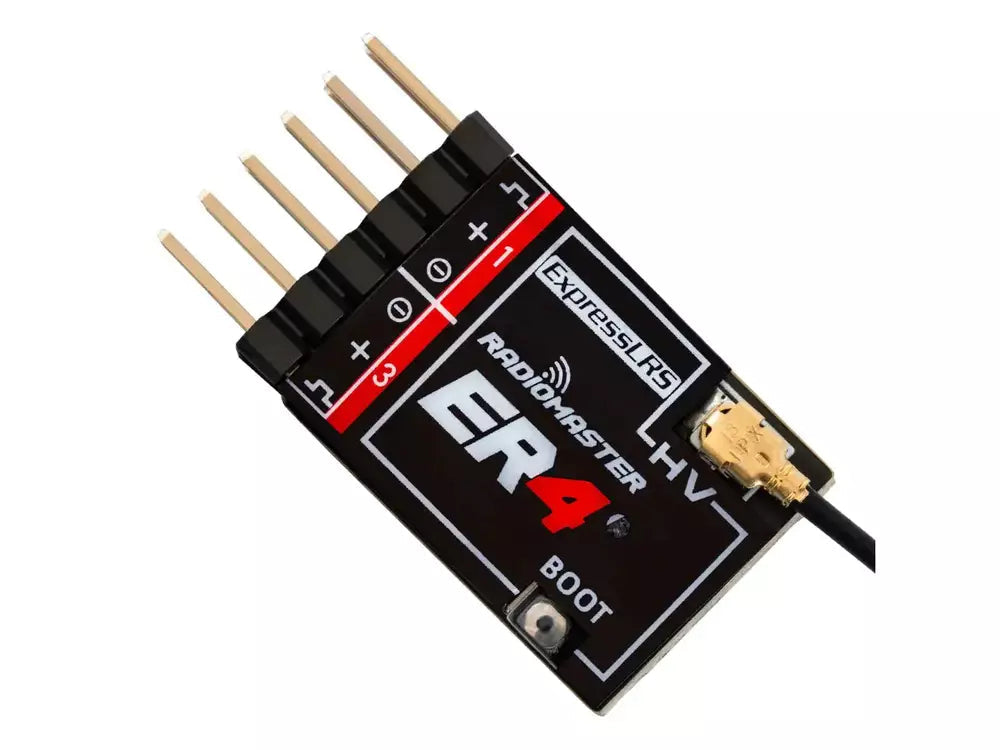

Radiomaster ER4 2.4GHz ELRS PWM Receiver
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed, and ultra-long range bringing you a brand new experience with your hobby.
The ER4 PWM receiver can drive 4 servos simultaneously. Designed with a very small volume, it is suitable for small aircraft models, ship models, car models, and other models that require a small or lightweight receiver while still providing full range.
Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed, and ultra-long range
- Support 4 PWM Channel
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector
- Standard 15 cm High Sensitivity Antenna
- For small aircraft, boats and cars and more
Specifications:
- Item: ER4 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5 - 8.4V

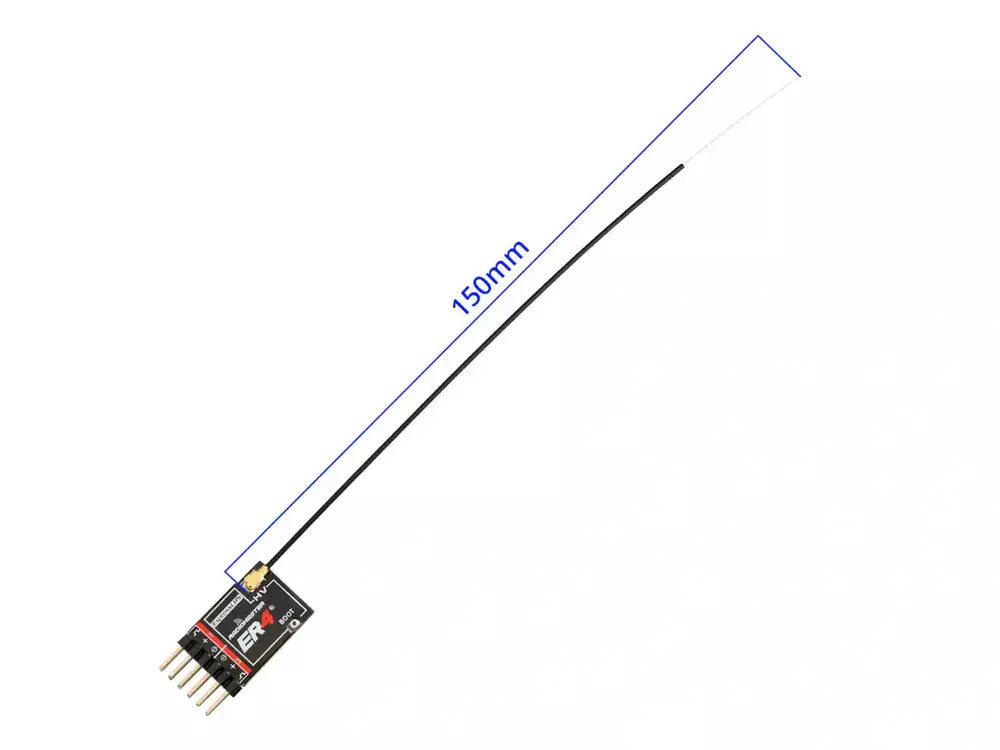

- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 4CH PWM
- Telemetry power: 10mw
- Battery voltage detection range: DC 4.0- 35V
- Weight: 3.0 grams
- Dimensions: 30*15*5mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER4 2400 PWM RX
Dimensions
Radiomaster ER Series Receivers
- ER4 ELRS PWM Receiver
- ER6 ELRS PWM Receiver
- ER8 ELRS PWM Receiver
- ER6G/ER6GV ELRS PWM Receiver
- ER8G/ER8GV ELRS PWM Receiver
Includes:
1x Radiomaster ER4 2.4GHz ELRS PWM Receiver
2x Heat-shrink Tube
1x Voltage Telemetry Wire (Type-A)
1x User Card
