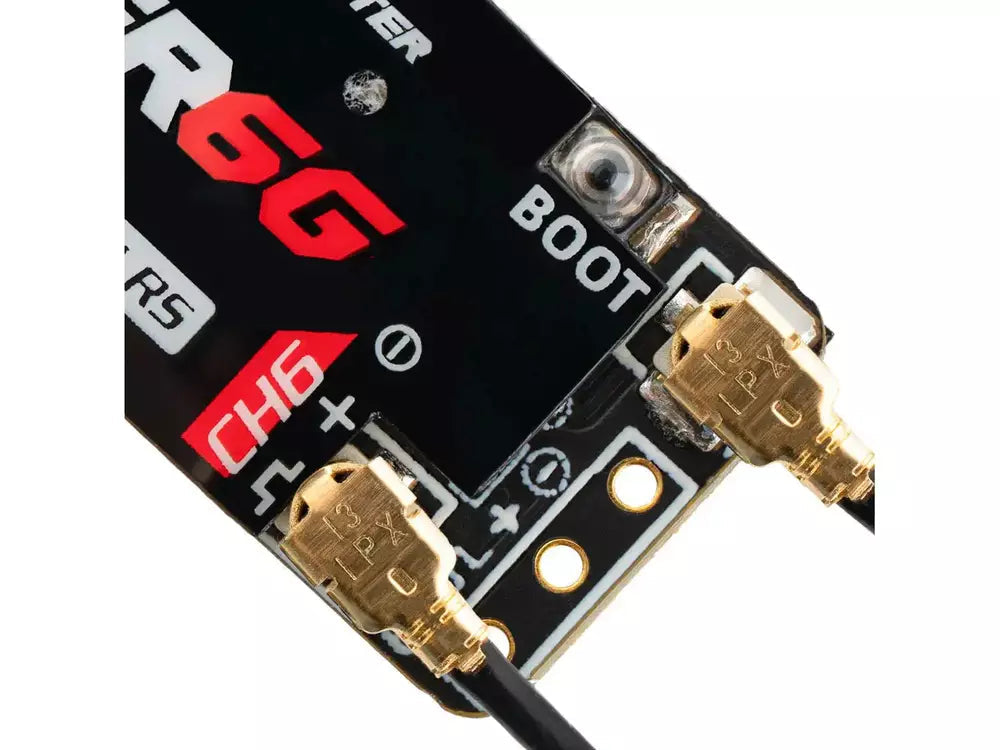

Radiomaster ER6G and ER6GV ELRS 2.4GHz PWM Receiver
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed, and ultra-long range bringing you brand new experience with your hobby.
The ER6G & ER6GV receivers have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The ER6G Receiver has the same functionality as the ER6GV only without a built-in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a Vario in their receiver.
Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector

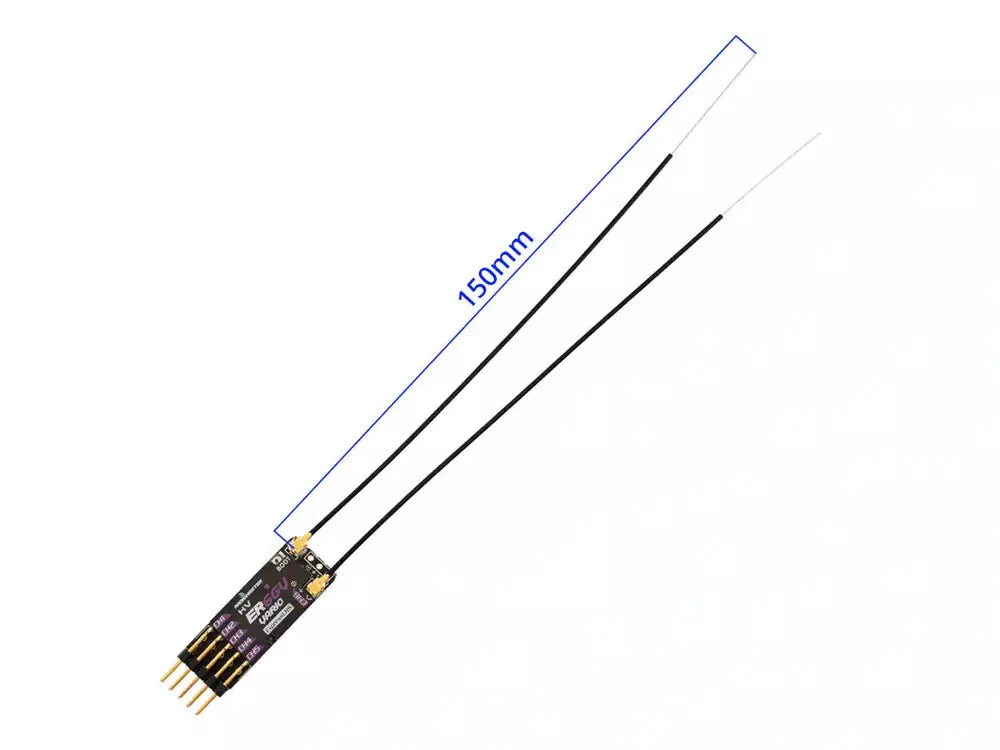

- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
Specifications:

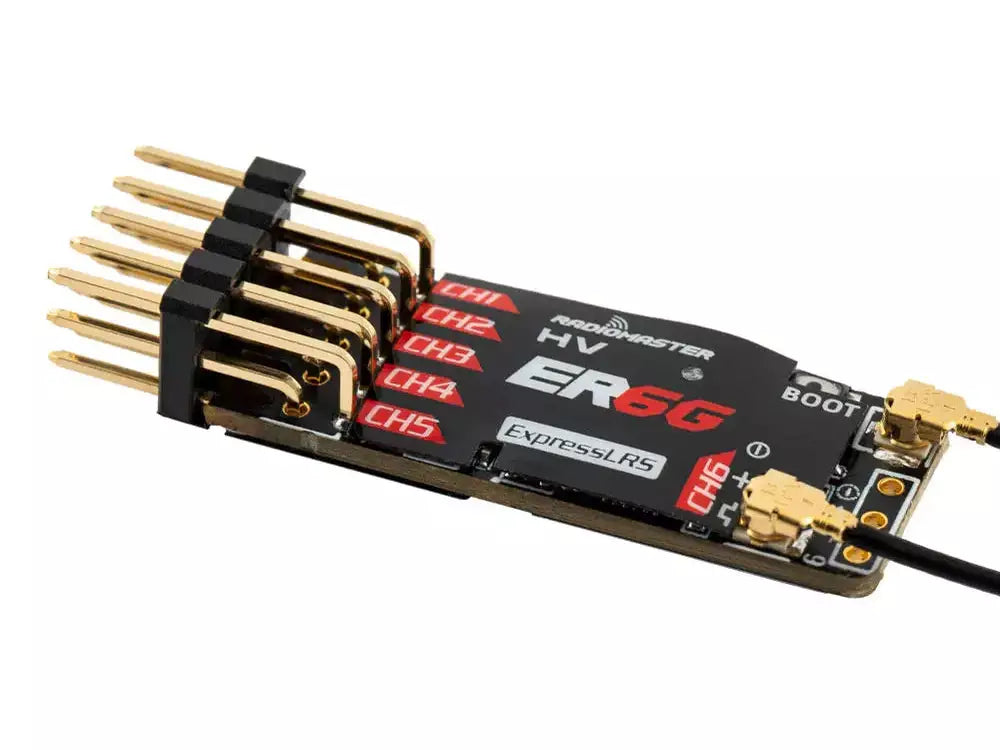

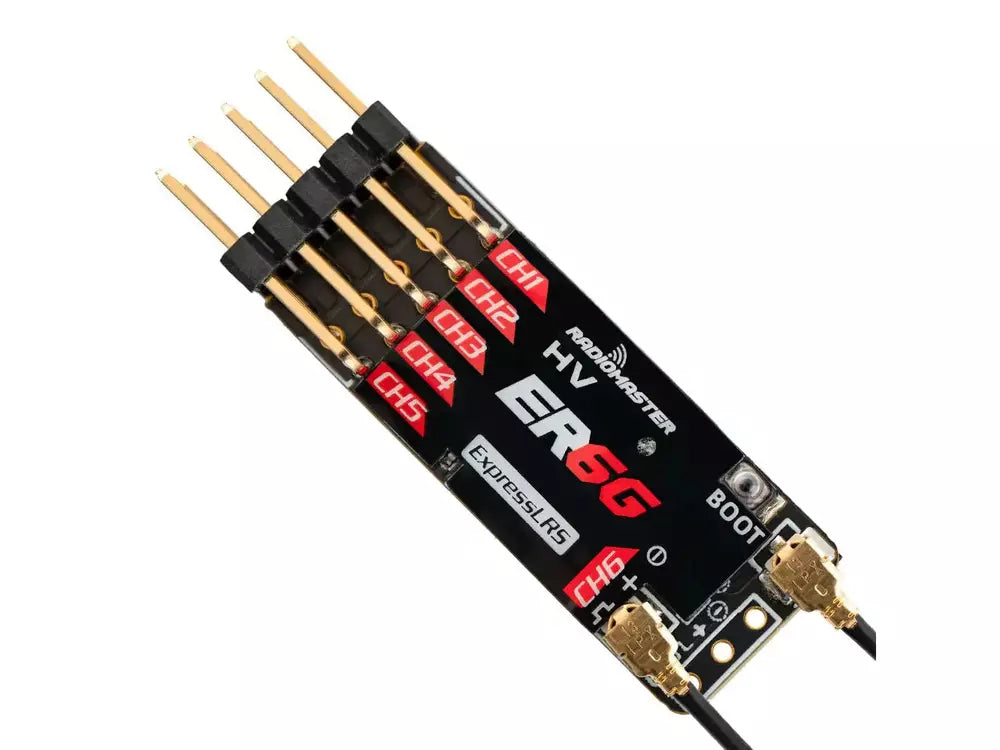

ER6G
- Item: ER6G 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 - 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 6CH PWM
- Telemetry power: maximum 50mw (LUA Adjustable)
- Battery voltage detection range: DC 3.0 - 26V
- Weight: 5.0 grams
- Dimensions: 42*13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6G

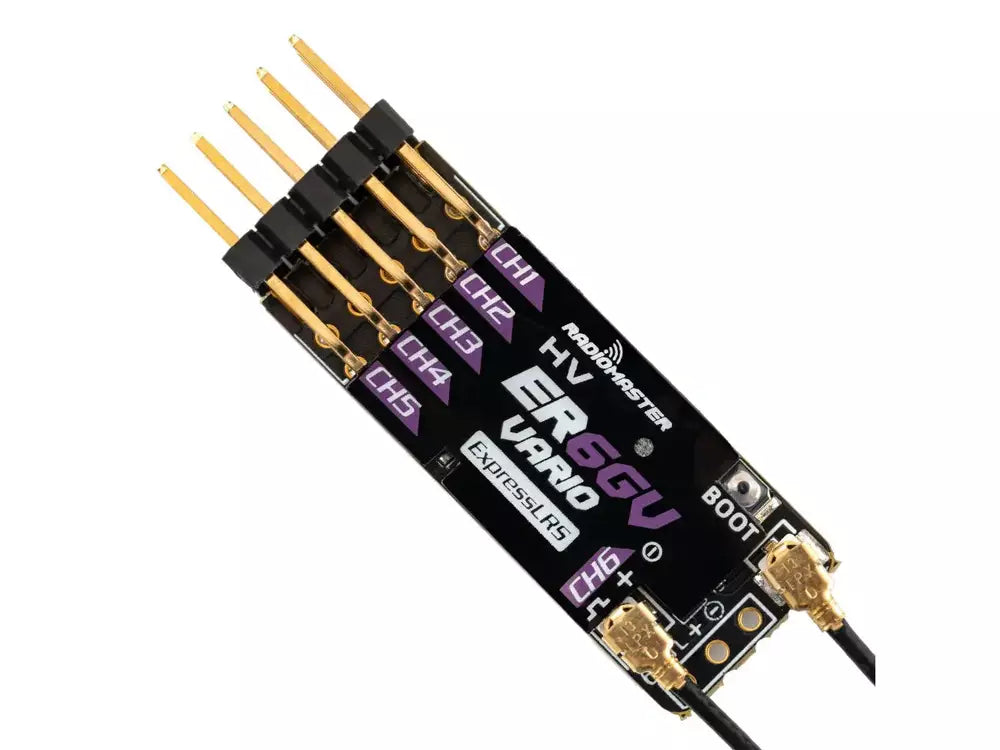

ER6GV
- Item: ER6GV 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 - 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.2 pre-installed
- Output channel: 6CH PWM
- Return power: maximum 50mw (LUA Adjustable)
- Built-in high-precision air pressure sensor (Vario)
- Battery voltage detection range: DC 3.0 - 26V
- Weight: 5.0 grams
- Dimensions: 42*13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV
Dimensions:
Radiomaster ER Series Receivers
- ER4 ELRS PWM Receiver
- ER6 ELRS PWM Receiver
- ER8 ELRS PWM Receiver
- ER6G/ER6GV ELRS PWM Receiver
- ER8G/ER8GV ELRS PWM Receiver
Includes:
1x Radiomaster ER6G or ER6GV ELRS 2.4GHz PWM Receiver
1x Voltage Telemetry Wire (Type-A)
2x Heat-Shrink Tube
1x User Card
