BetaFPV Nano receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ELRS aims to achieve the best possible link performance in both speed, latency, and range. This makes ELRS one of the fastest RC links available while still offering long-range performance.

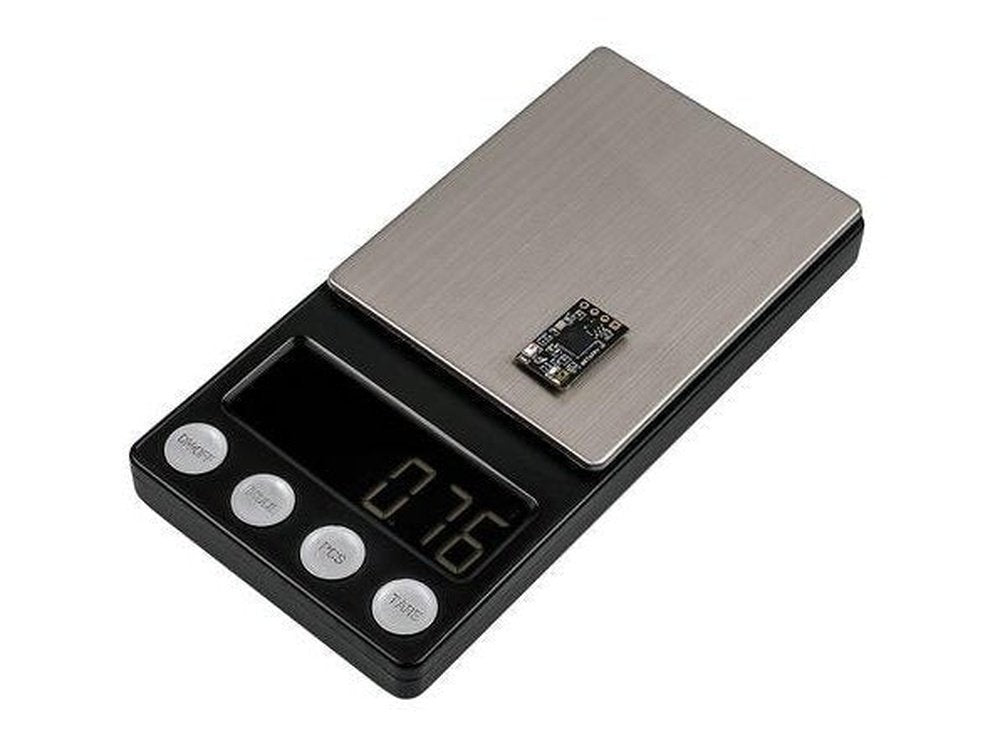

- Weight: 0.7g (receiver only)
- Size: 12mm*19mm
- Telemetry power: 20dbm
- Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
- Input voltage: 5V
- Antenna connector: IPEX MHF
ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance in both speeds, latency, and range. At 900 MHz a maximum of 200 Hz packet rate is supported. At 2.4 GHz a blistering 500Hz is currently supported with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.
1x BetaFPV ExpressLRS 2.4GHz Nano Receiver

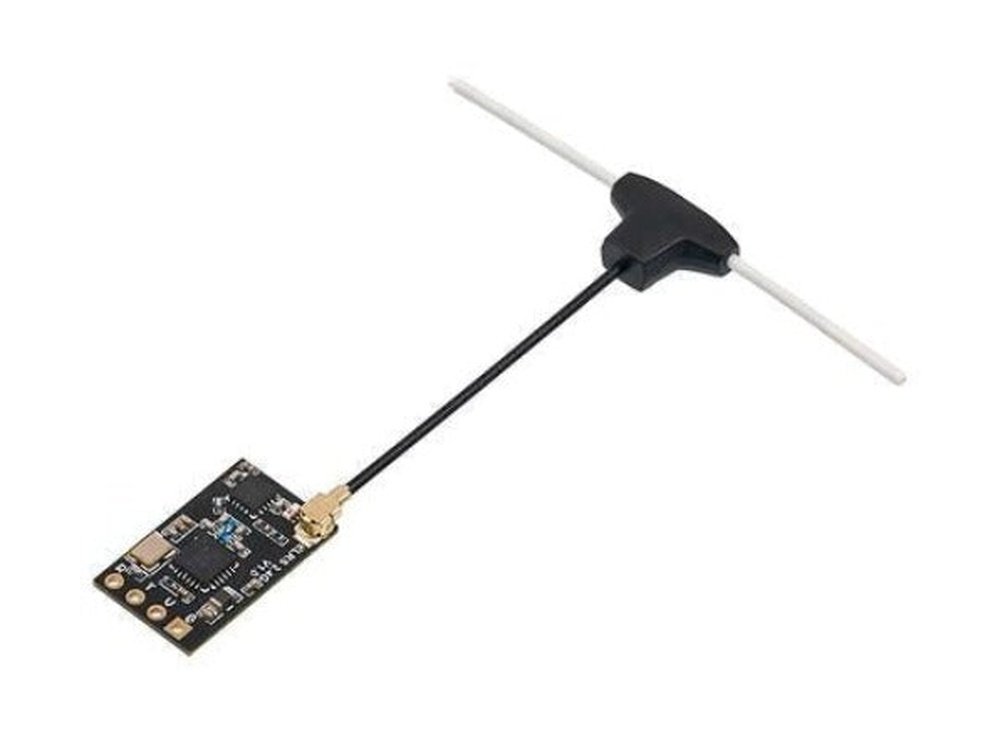

1x BetaFPV T Antenna
2x Spare Shrink Tube
4x 30awg silicon connection wires
1x Pin Header
1x Nano Receiver User Manual
