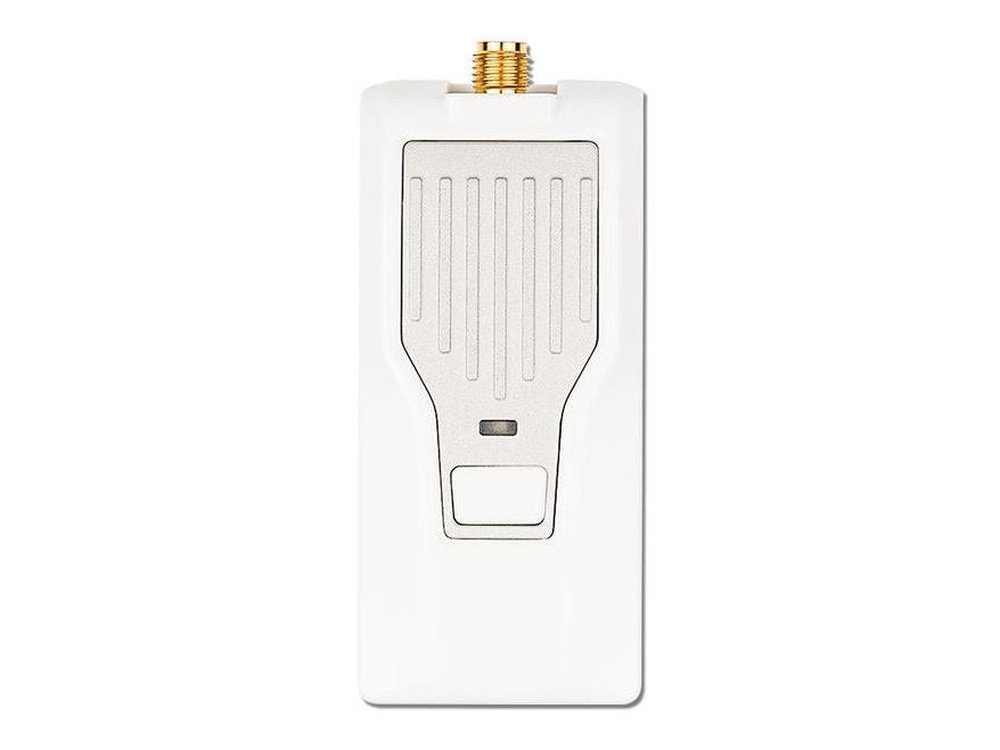

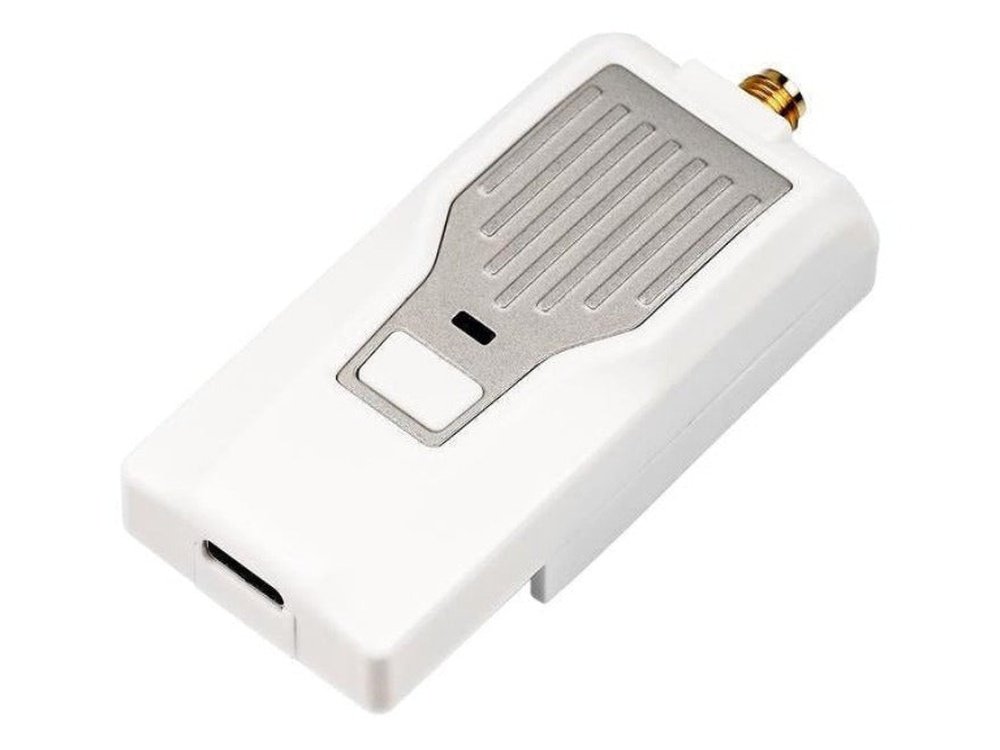

BetaFPV ExpressLRS 2.4GHz Nano TX Module
BetaFPV Nano RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. ELRS aims to achieve the best possible link performance in both speed, latency, and range. This makes ELRS one of the fastest RC links available while still offering long-range performance.
- Packet refresh rate: 25Hz/50Hz/150Hz/250Hz/500Hz (2.4GHz)
- RF output power: 100mW/250mW/500mW
- Frequency bands (Nano RF Module 2.4G version): 2.4GHz ISM
- Input voltage: 5V~12V
- USB port: Type-C

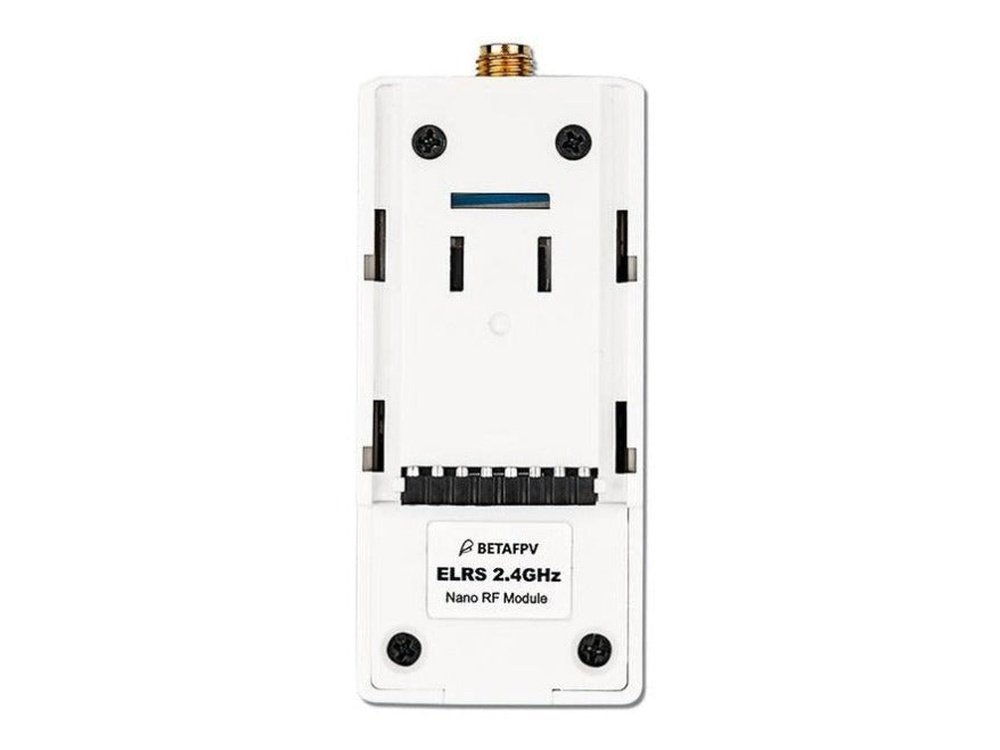

BETAFPV Nano RF TX module is compatible with radio transmitter which has the nano module bay (AKA lite module bay, e.g. Frsky Taranis X-Lite, Frsky Taranis X9D Lite, TBS Tango 2).
Note： Please install the antenna before powering on. Otherwise, the PA chip in the Nano TX module will be damaged permanently.
ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance in both speeds, latency, and range. At 900 MHz a maximum of 200 Hz packet rate is supported. At 2.4 GHz a blistering 500Hz is currently supported with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

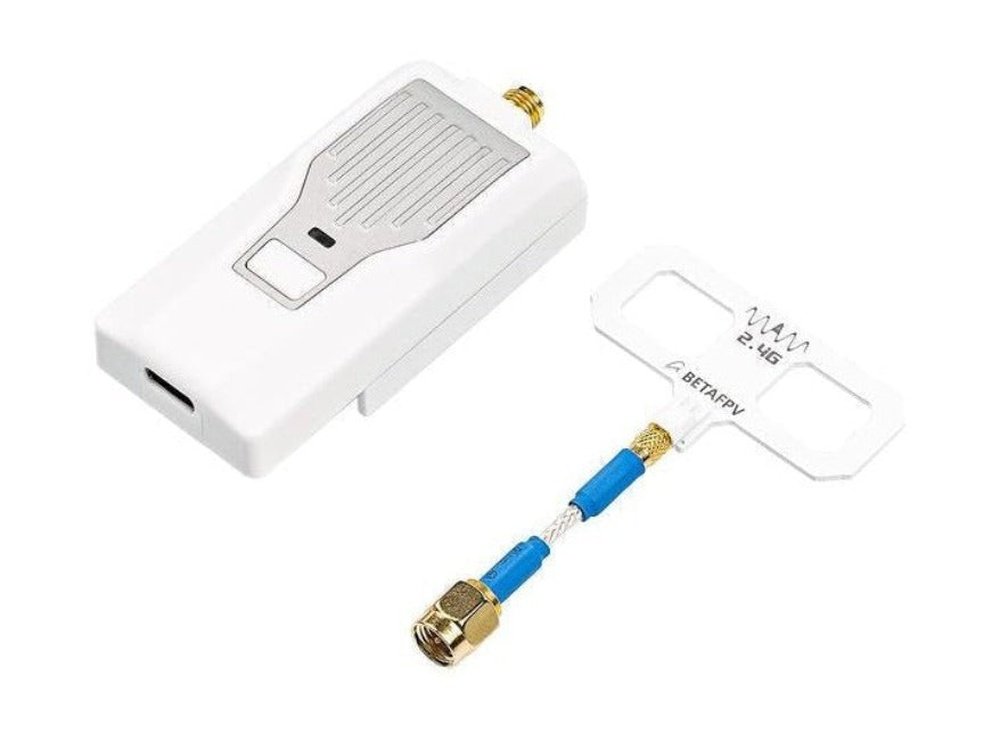

1x BetaFPV ExpressLRS 2.4GHz Nano TX Module
1x BetaFPV Moxon Antenna
1x Nano TX Module User Manual
