Diatone Mamba MK4 F722 Mini Reactor 66A BLHeli_32 Stack (MPU6000)

  • $148.99
    Unit price per


Diatone's Mamba MK4 (fourth generation) stack is a redesign of its already fantastic line of flight controllers and ESCs. Improvements include making the products easier to use by increasing soldering pad sizes by 30%, pad spacing by 100%, adding USB-C, additional UARTS, I2C, better filtered BEC, ESC support for 128K PWM, and more.

Now available with the Reactor 66A BLHeli_32 4-In-1 ESC.  A robust and powerful ESC that won't let you down.

Diatone Mamba Mk4 F722 Mini Stack

What's New?

A completely different pad style has been redesigned to increase pad area by 30% and pad spacing by 100%, reducing solder errors and associated failures.

  • The pad area increased by 30%
  • Pad spacing increased by 100%
  • MP9943 synchronous rectifier BEC

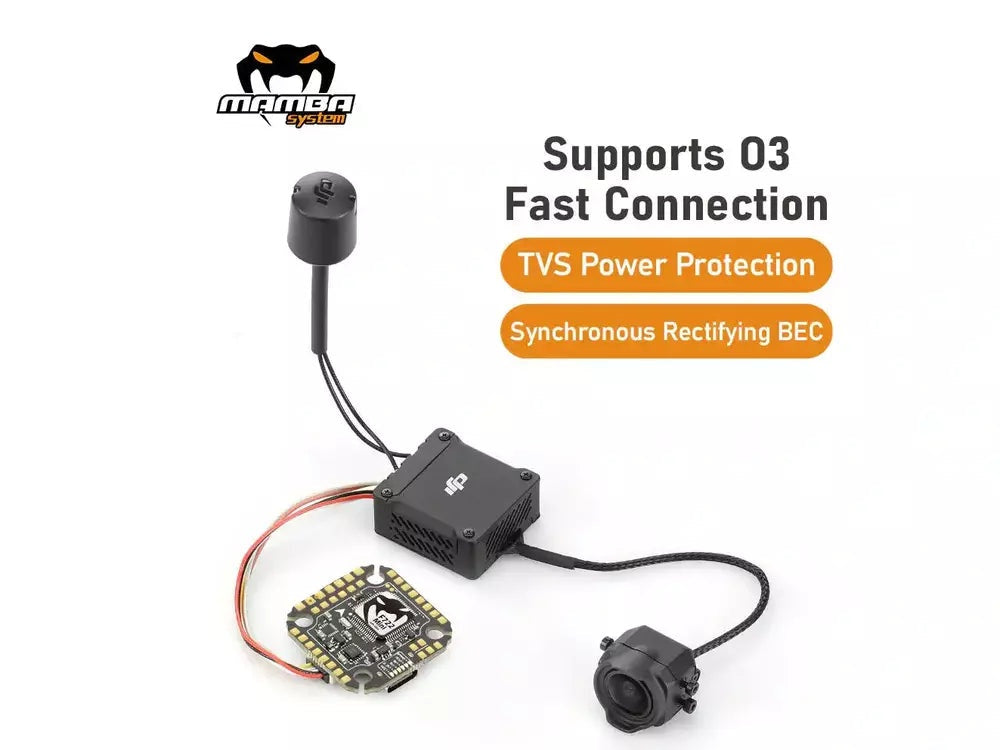

  • MINI series upgrade DJI interface and 5v 15W/9V 18W 2 set BEC
  • USB Type C
  • 6 Set UART and I2C
  • 4 Set Power Protection
  • 32Bit ESC all support 128K
  • Mini series FC uses 2mm and 3mm mounting holes, special dampening ring
  • Upgrade the twisted pair anti-jamming cable and reinforcement process



  • MCU:  STM32F722
  • Frequency:  216MHz
  • Gyro:  MPU6000
  • Barometer:  SPL06
  • OSD:  AT 7456E
  • Blackbox:  16M Memory
  • Barometer:  Yes
  • UARTS:  6 Sets
  • I2C:  Yes
  • F.Port:  Yes
  • Buzzer:  Yes
  • Current:  Yes
  • ESC Signal:  8 Sets
  • BEC 3.3V:  0.5A
  • BEC 5V:  2.5A
  • BEC 9V:  2A
  • MB LED:  Yes
  • BF LED:  Yes
  • Air Unit Port:  Yes
  • VTX Switch:  Yes
  • BEC Protection:  Yes
  • Receiver Protection:  Yes
  • TVS Protection:  Yes
  • Input:  6S LiPo
  • Firmware:  Betaflight
  • Mounting:  20.0x20.0mm,M3/M2
  • Size:  29.0x29.5x6.5mm
  • Weight:  6.0g


  • Input Voltage:  4~6S LiPo (16.8V~25.2V)
  • Continuous Current:  66A
  • Burst Current:  105A (10S)
  • BEC:  No
  • Target:  BLHeli_32 MAMBA5_Reactor_66
  • Soft:  DShot300/600/1200
  • PWM:  24~128K
  • Mounting:  20x20mm/M2-M3

Diatone Mamba MK4 Mini
Diatone Mamba MK4 Mini
Diatone Mamba MK4 Mini

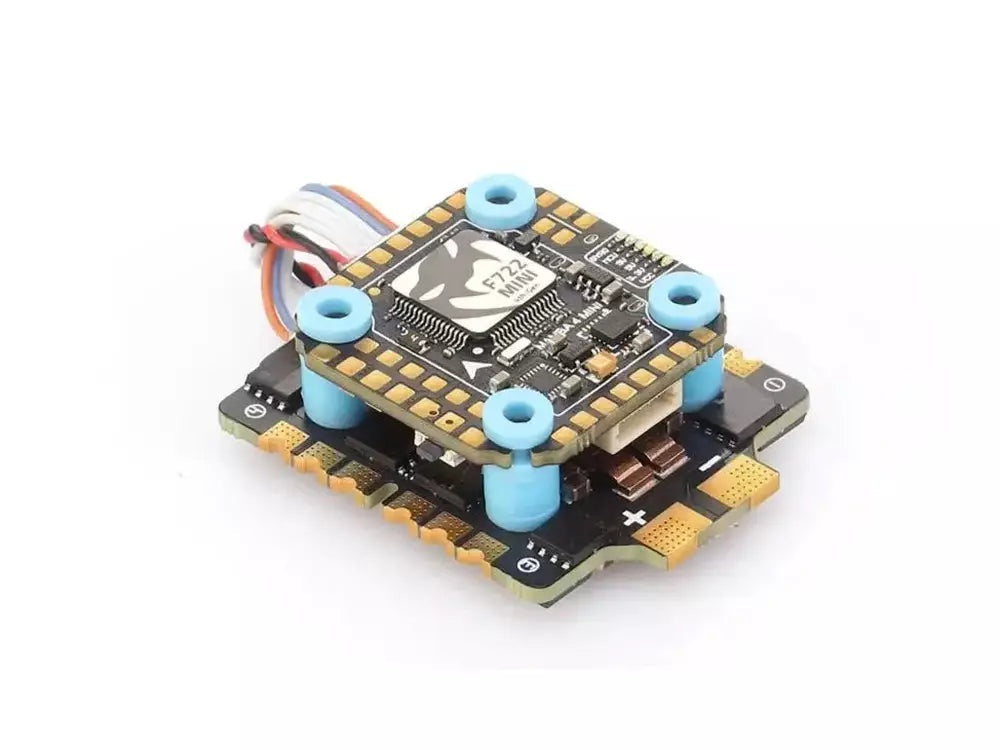

Diatone Mamba MK4 F722 Mini Reactor 66 BLHeli_32 Flight Controller Stack

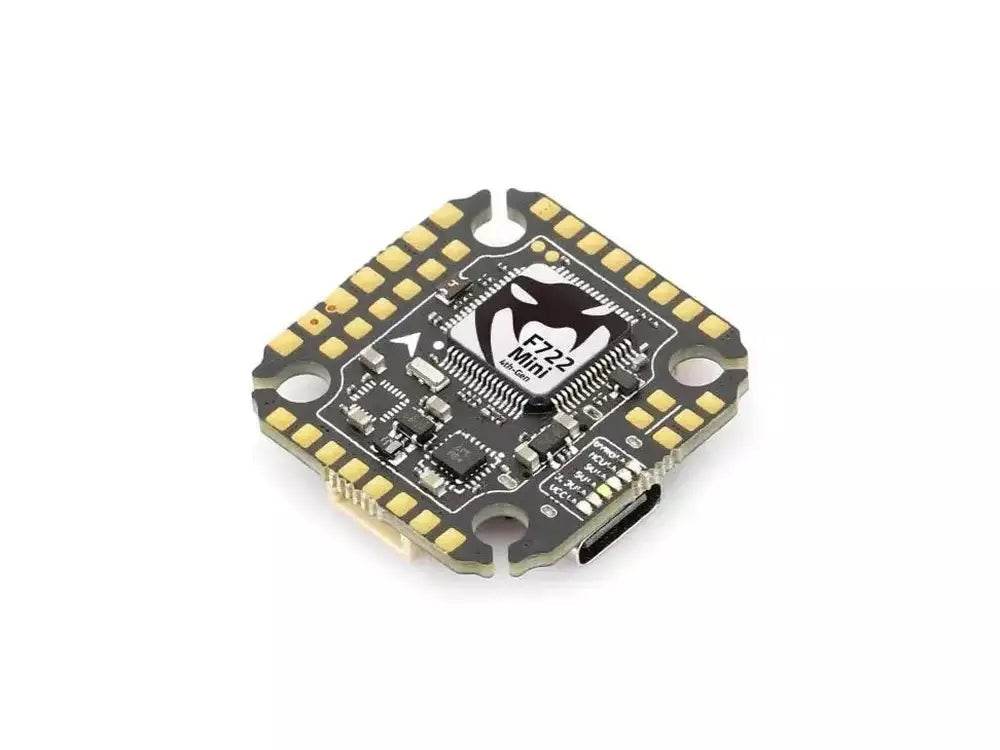

1x Diatone Mamba MK4 F722 Mini Flight Controller MPU6000

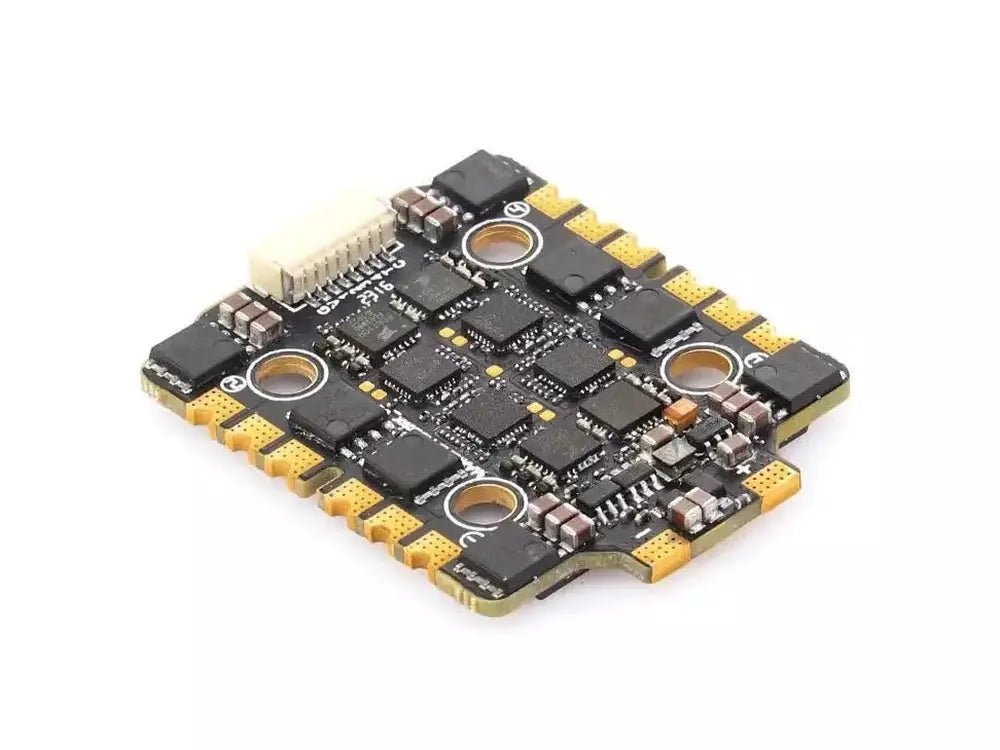

1x Diatone Mamba Reactor 66A BLHeli_32 4-In-1 ESC
5x M2 Silicone Grommets
5x M3 Silicone Grommets
5x M2 ESC Isolation Columns
5x M3 ESC Isolation Columns
1x 8 Pin single-ended cable for flight controller
2x 8 Pin Cable
1x 6 Pin Air Unit Cable
1x XT60
1x Capacitor

Download Wiring Diagram
