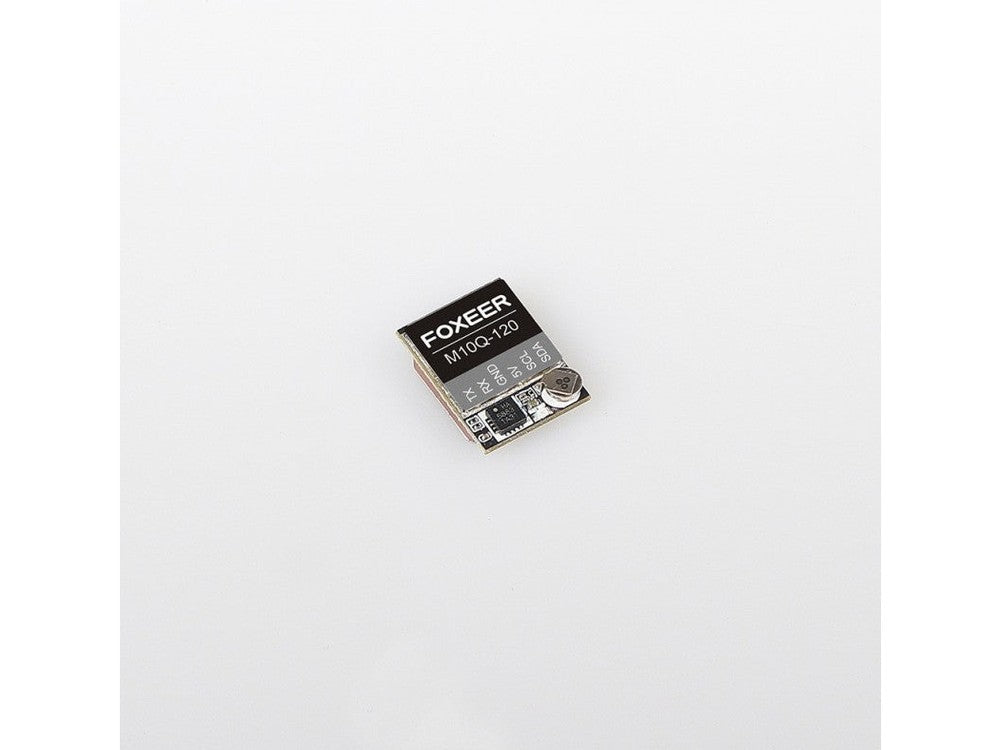

Foxeer M10Q 120 5883 Compass GPS

  • $19.90
    Unit price per



Discover precise navigation with the Foxeer M10Q 120 5883 Compass GPS. This powerful GPS features a QMC5883 compass for accurate navigation and consistent, stable flight. With GPS/GLONASS/BDS capabilities, this powerful, nano-sized GPS (17x12.5mm) will provide reliable navigation, even in congested areas. An ideal choice for UAVs, robots, and other applications requiring reliable positioning.

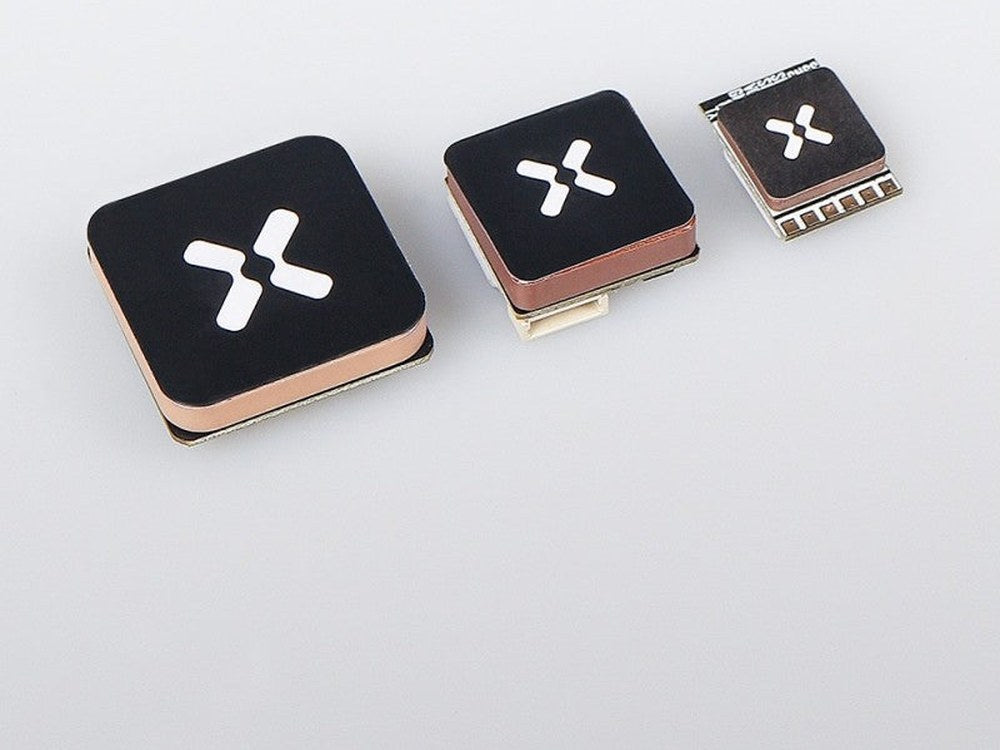

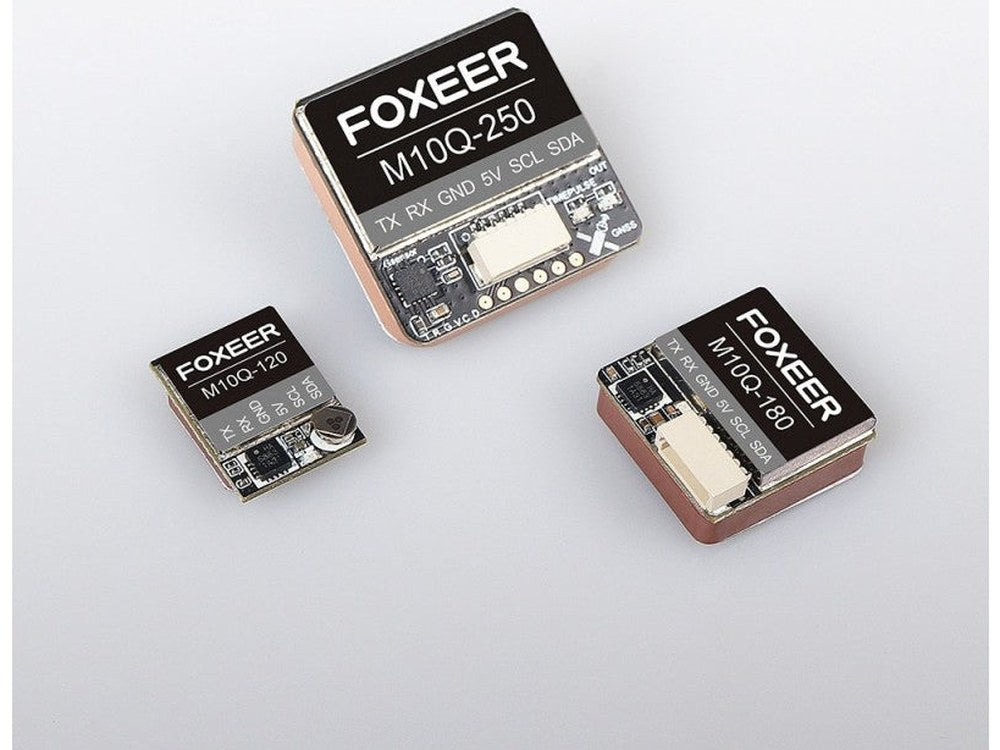

Available in 3 versions:

Foxeer M10Q GPS Compass

M10Q 120
M10Q 180
M10Q 250

Specifications:

  • Chip:  M10 (10th generation chip)
  • Frequency:  GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
  • Input Voltage:  5V
  • Antenna:  Ceramic Antenna
  • Channels:  72
  • Battery:  Built-in
  • Compass:  QMC5883
  • Baud Rate:  115200bps
  • Protocol:  Dual NMEA/UBLOX
  • Output Frequency:  1Hz-10Hz, 10Hz default
  • Speed Accuracy:  0.05m/s
  • Horizontal Positioning Accuracy:  2D ACC1.5m(outdoor)
  • Receiver Sensitivity:  Trace -166dBm; Capture -160dBm
  • Dynamic Characteristics:  Height 5000m; Speed 500m/s; Acceleration 4G
  • Operating Temperature:  -40C-+85C
  • Storage Temperature:  -40C-+105C
  • Weight:  2.7g
  • Size:  12.5*17*5mm

Foxeer M10Q 120 5883 Compass GPS

Includes:
1x Foxeer M10Q 120 5883 Compass GPS
1x Wire
