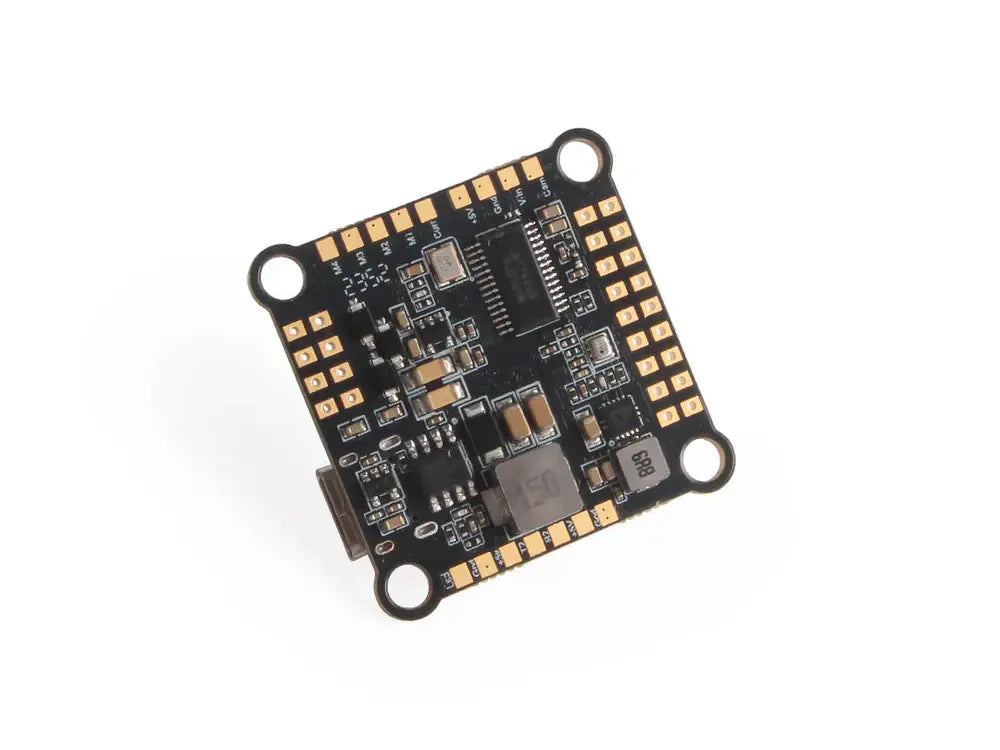

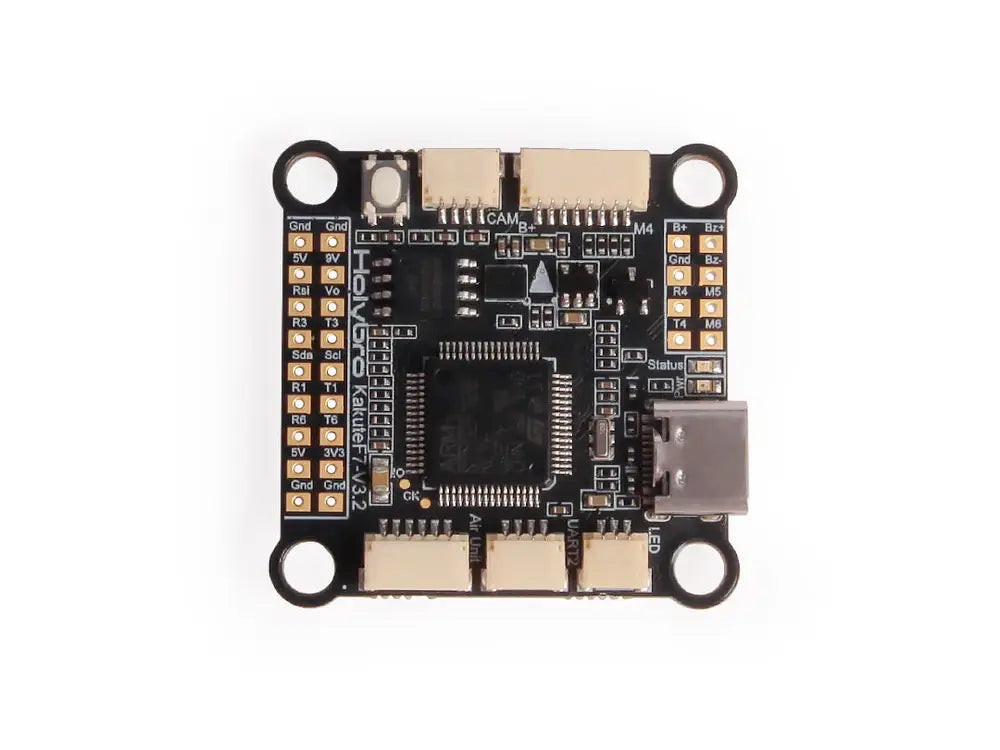

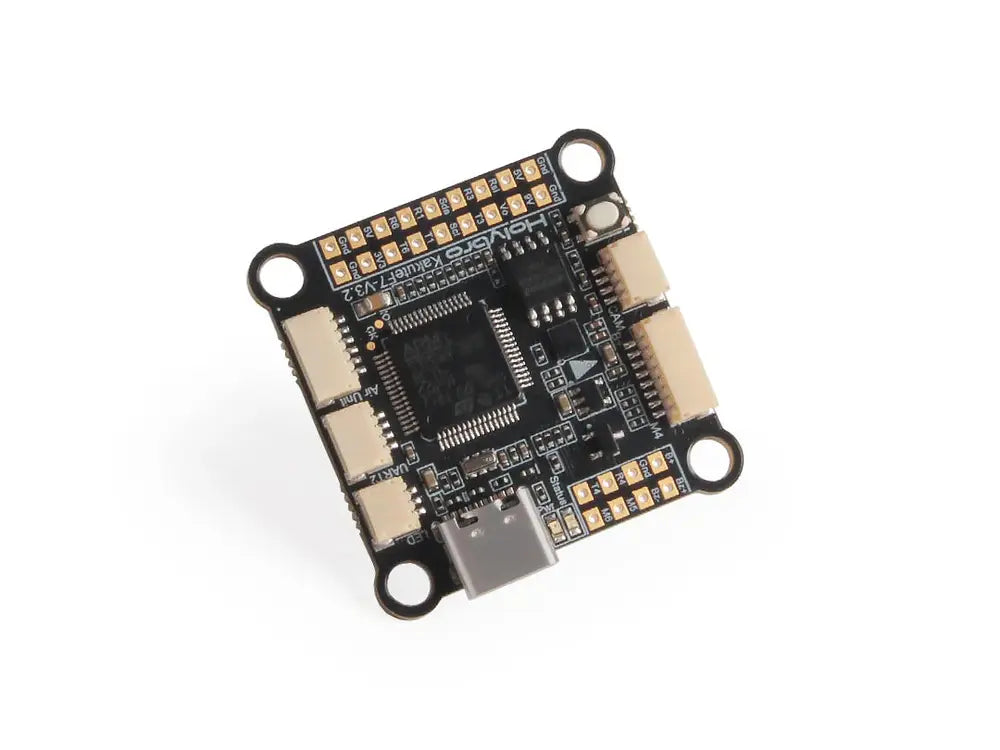

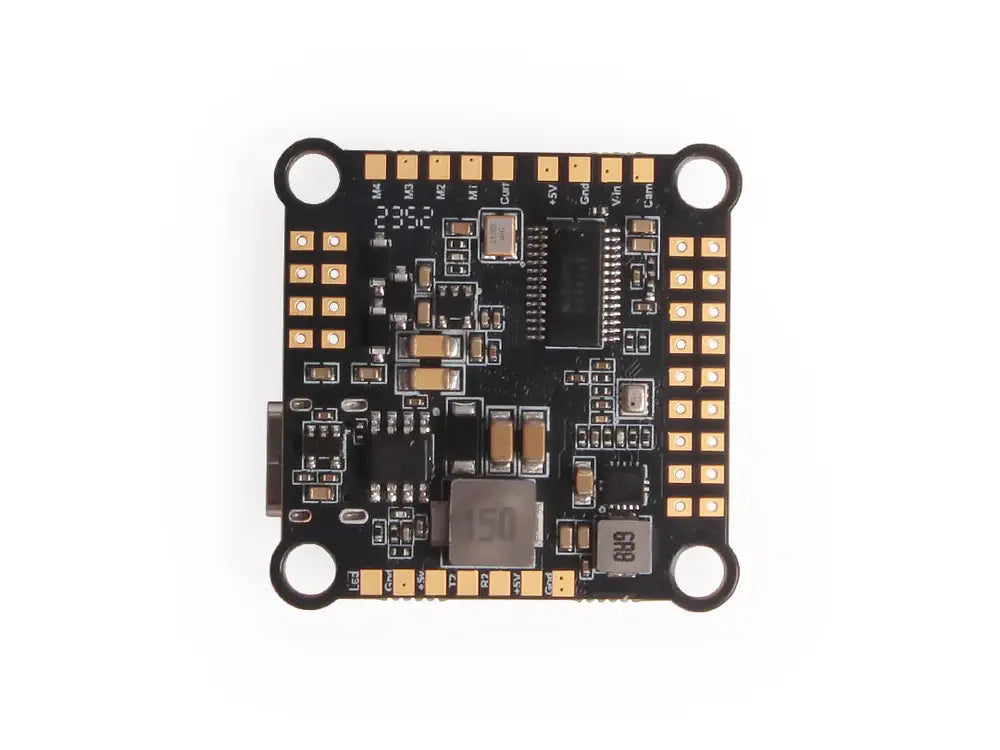

Holybro Kakute F722 Flight Controller

  • $38.99
    Unit price per



With Holybro Kakute F722 Flight Controller, experience top-notch performance and unparalleled quality. Featuring the ICM42688P gyro and low-noise power supply, this flight controller is a dream for anyone seeking precision and efficiency. Suitable for any demanding mission, this flight controller is destined for your next build.

Features:

  • High-performance STM32 F722 MCU with speeds up to 216MHz.
  • ICM42688P gyroscope, independent low-noise power supply.
  • Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port.
  • Built-in analog video OSD, 16 Mbytes black box,
  • High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output.

Specifications:

  • MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
  • IMU: ICM42688-P (SPI)
  • Barometer: BMP280
  • OSD: AT7456E
  • 5x hardware UARTS (UART1,2,3,4,6)
  • 7x PWM Outputs (6 Motor Output, 1 LED)
  • Onboard 16 Mbytes for Blackbox logging
  • Battery input voltage: 3S - 8S
  • BEC: 9V/3A, 5V/2A, 3.3V/0.2A
  • Connector
    • 2x JST-SH 8pin port for ESC
    • 1x JST-SH 6pin port for HD VTX
    • 2x JST-SH 4pin port for Receiver & Analog Camera
    • 1x JST-SH 3pin port for LED
  • USB Type -C
  • Dimensions: 35x35mm
  • Mounting Holes: Standard 30.5 x 30.5

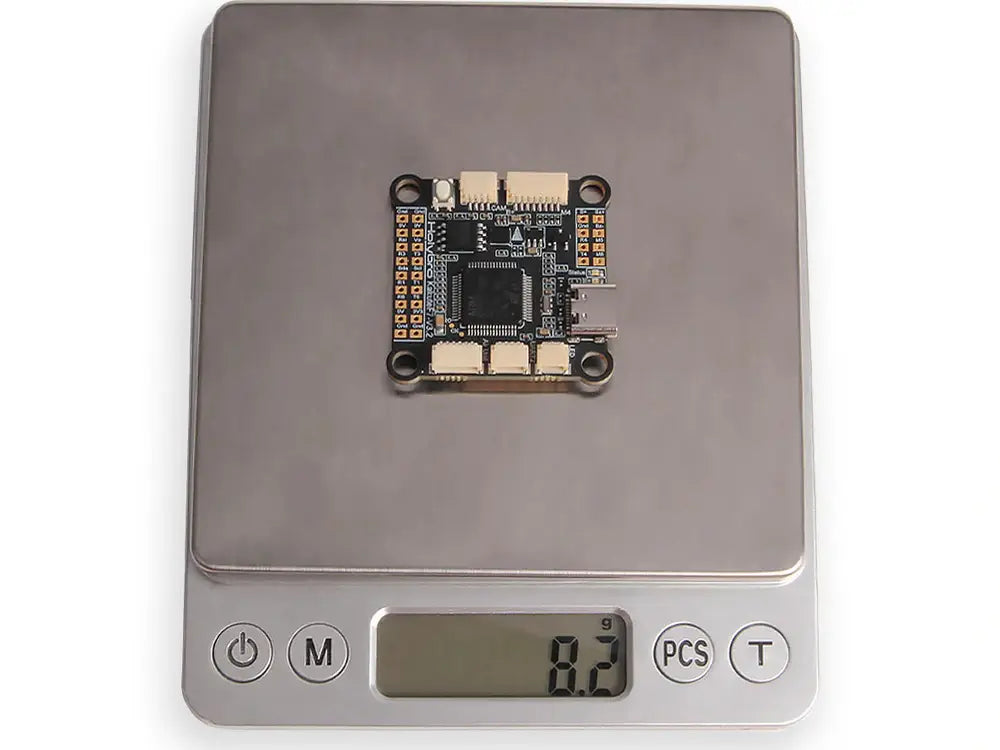

  • Weight: 8g
  • Firmware Targets:
    • Betaflight Target: KAKUTEF7MINIV3
    • INAV Target: KAKUTEF7MINIV3
Holybro Kakute F722 Flight Controller
Holybro Kakute F722 Flight Controller
Holybro Kakute F722 Flight Controller

Includes:
1x Holybro Kakute F722 Flight Controller

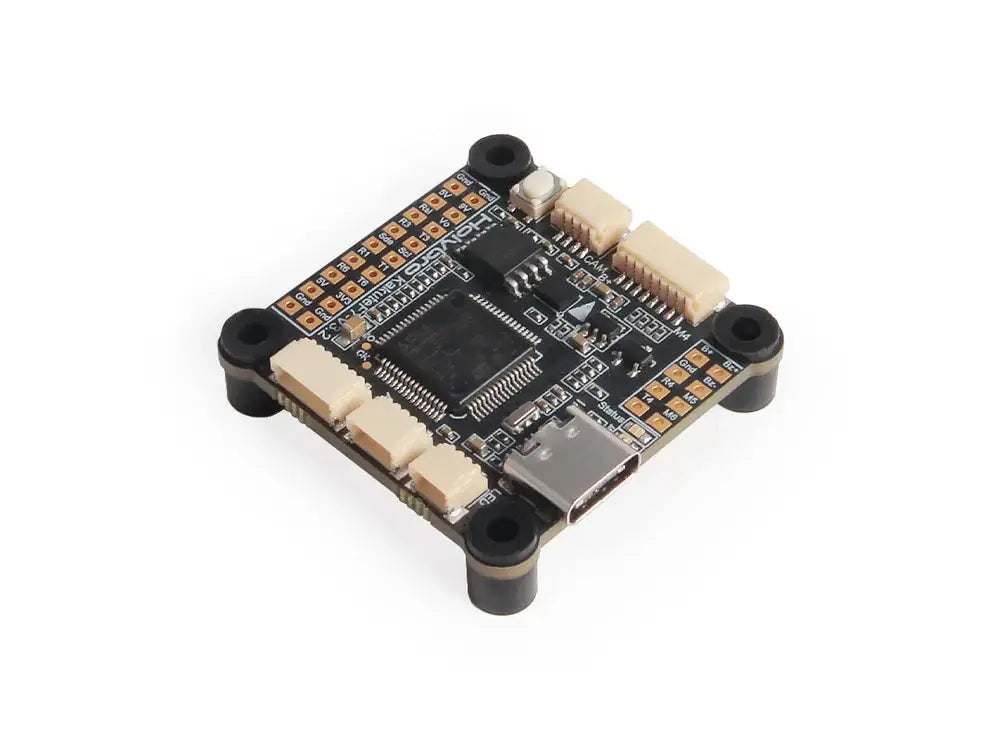

4x M3 Silicon Grommets
1x JST-SH-1.0_8pin 150mm Calbe (For ESCs)
2x JST-SH1.0_6pin 80mm & 150mm Cable (For DJI Air Unit)
1x JST-SH1.0_6pin Colored Silicon 150mm Cable (For Caddx HD system and others)
1x JST-SH1.0_4pin to Dupont 150mm Cable
1x JST-SH1.0_3pin to Dupont 150mm Cable
1x JST-SH1.0_4pin to Molex 1.25 150mm Calbe

Download Manual
