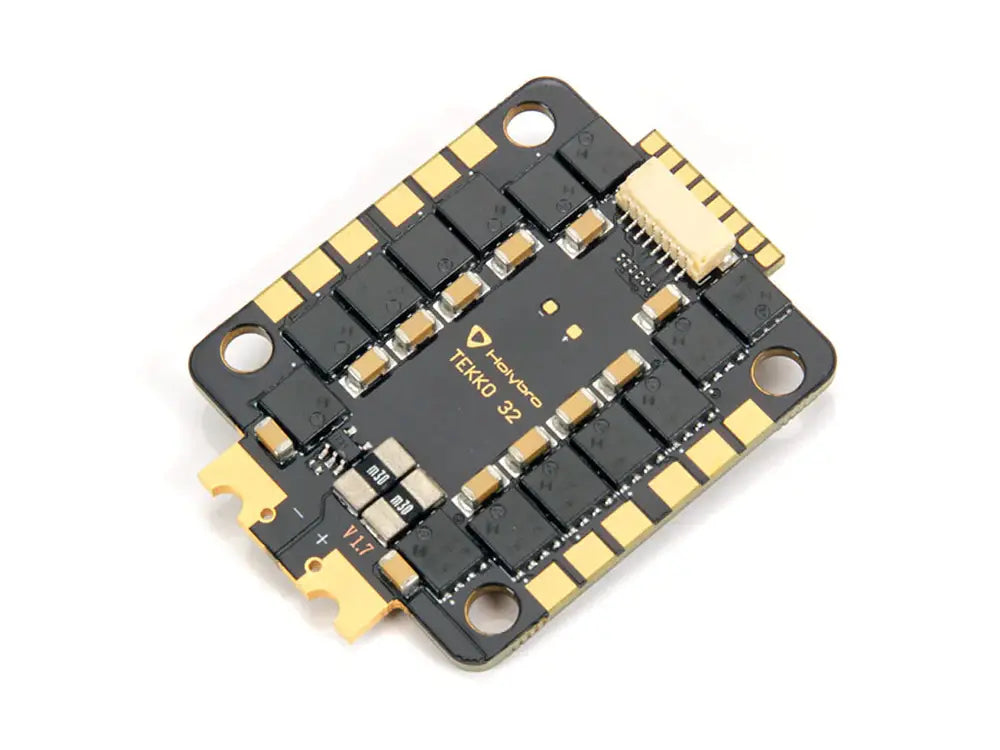

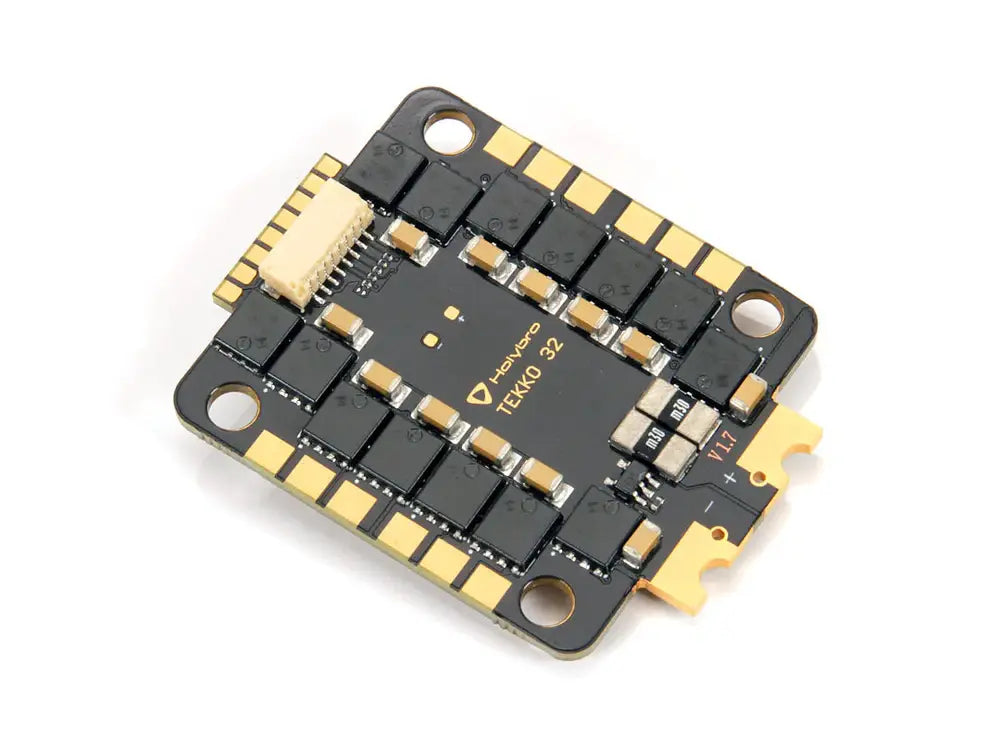

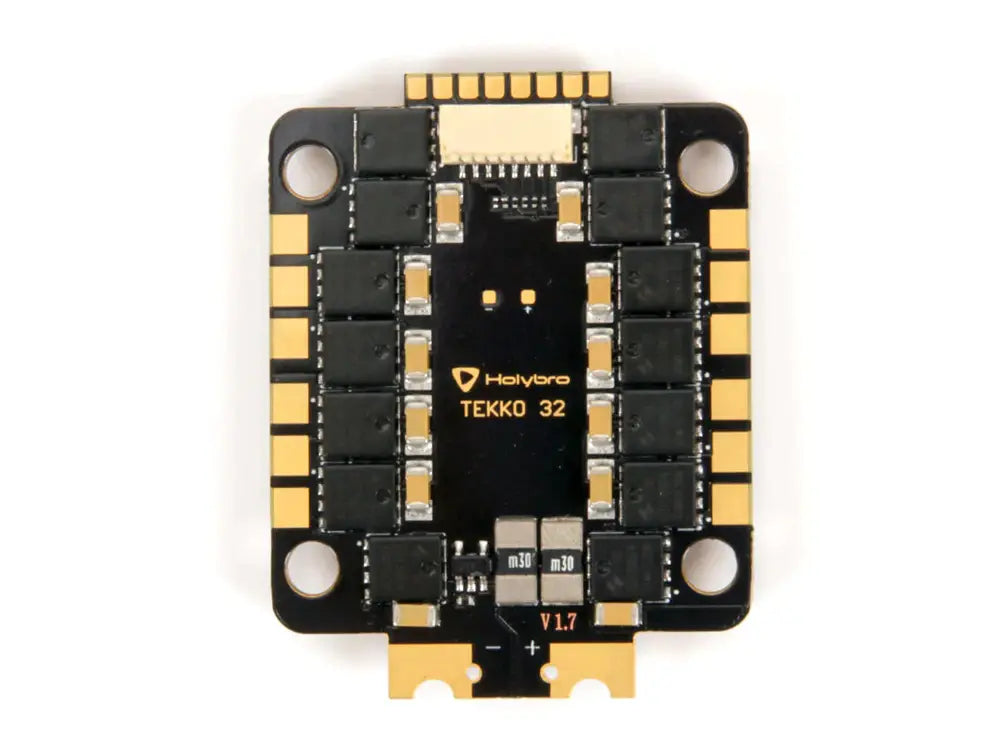

Holybro Tekko32 F4 50A BLHeli_32 4-In-1 ESC

  • $71.00
    Unit price per



Holybro Tekko32 F4 is one of the first 4-In-1 ESC to adapt fast F4 MCU @ 150MHz for smooth control operation and quick response.

F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30x30

Features:

  • New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
  • PWM output up to 96K (default 48K)

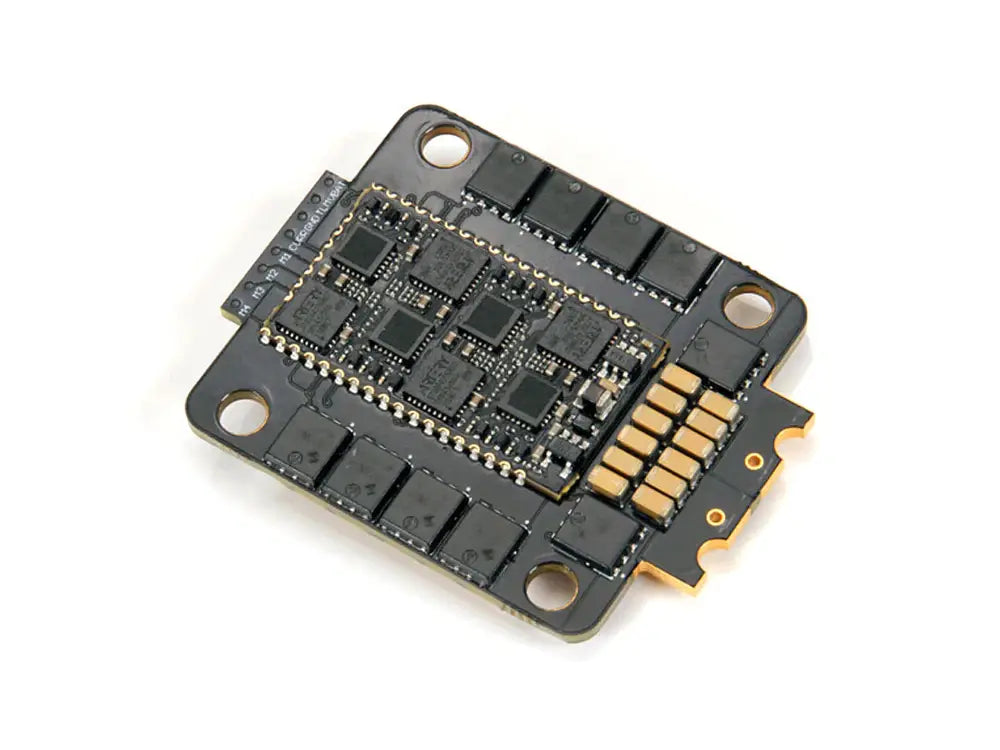

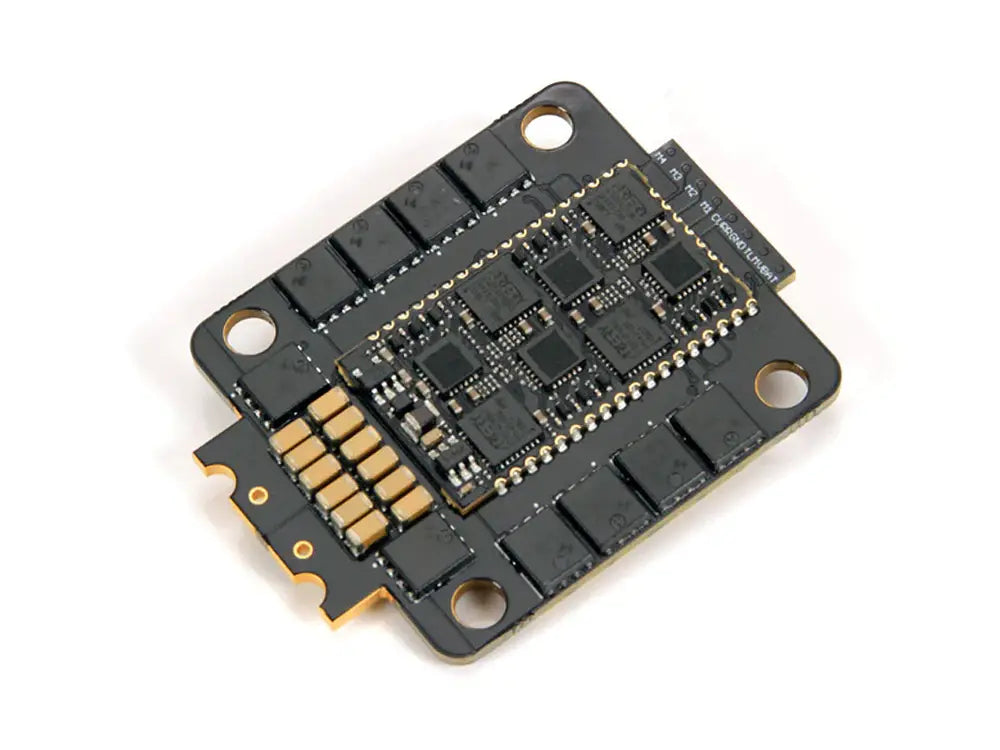

  • Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Specifications:

  • Continuous Current: 50A x4
  • Burst Current: 60A x4
  • Supports 4-6S battery
  • Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
  • ESC telemetry Supported
  • Onboard analog current sensor
  • No output BEC
  • BLHeli_32 firmware
  • 1000uf 35v capacitor included (highly recommended for 6s setup)
  • Amperage meter scale ratio: 168

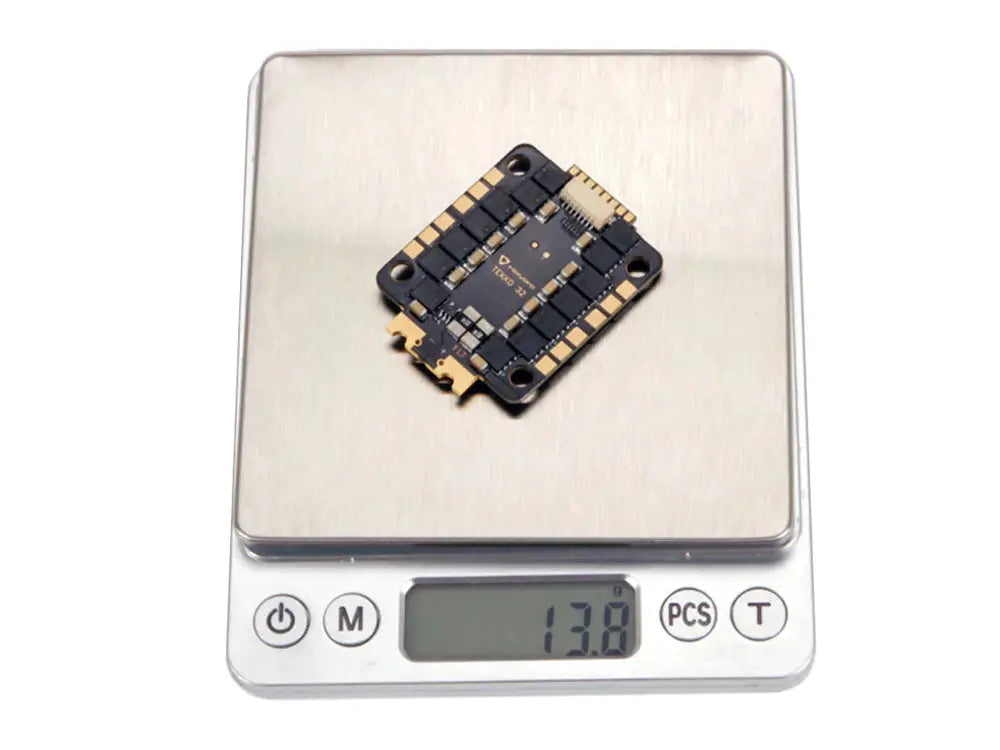

  • Dimensions: 45x37x6mm / Weight: 13.8g
  • Mounting holes: M4 30.5x30.5mm (M3 grommets included)

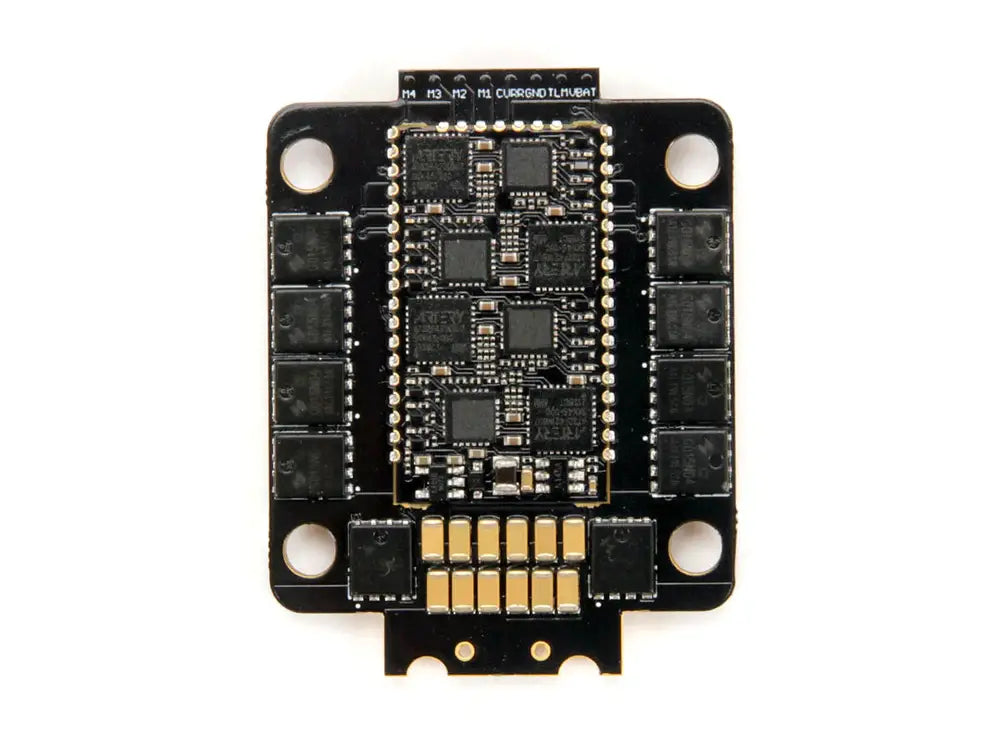

Pin MAP:

Holybro Tekko32 50A ESC

Includes:
1x Holybro Tekko32 F4 50A BLHeli_32 4-In-1 ESC

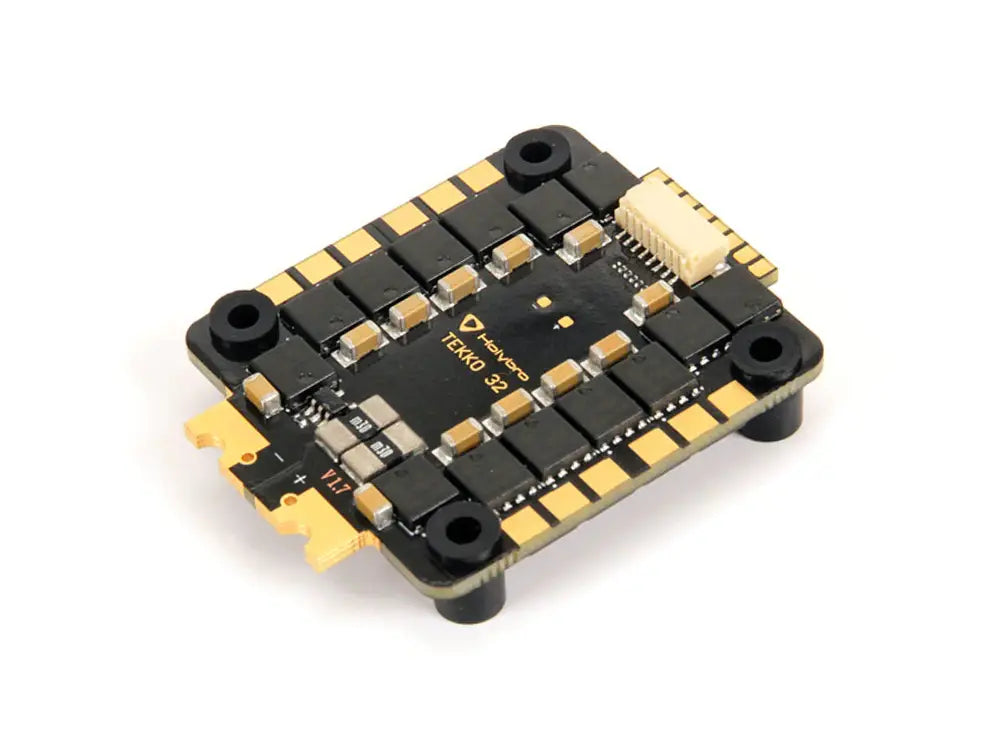

4x M3 Anti-Vibration Silicone Grommet Insert
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable

Download Spec Sheet
