Hobbywing XRotor F7 Convertible Flight Controller 40A 4-In-1 ESC Stack

  • $84.99
    Unit price per
  • Save $35.00

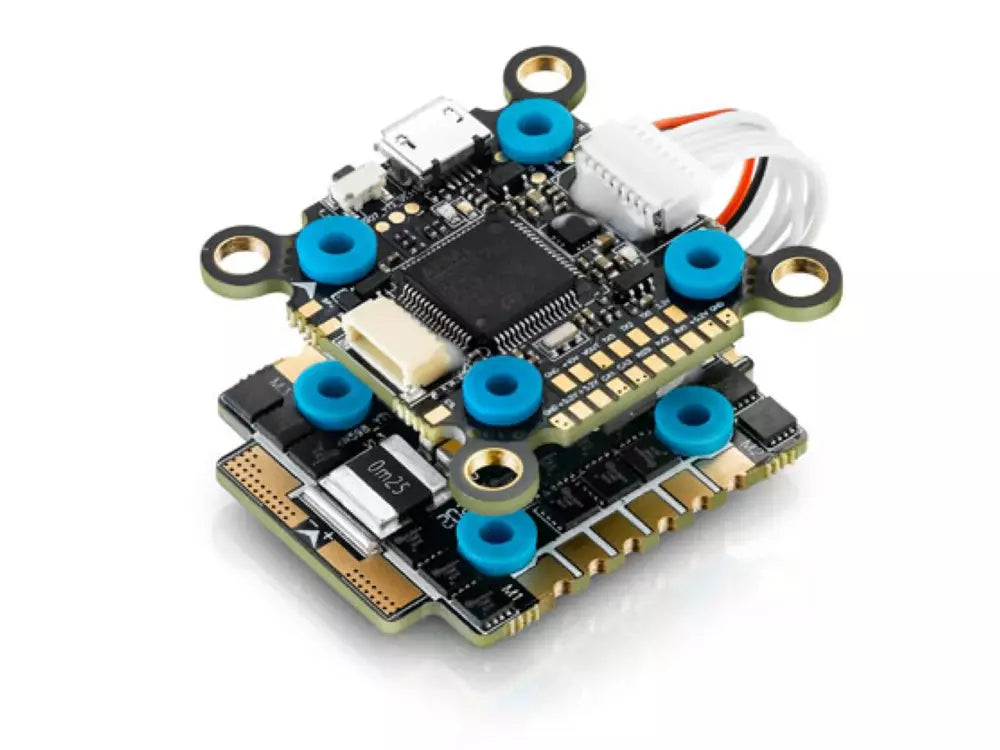

The Hobbywing XRotor 40A Stack includes the F7 Convertible Flight Controller and the popular XRotor 40A 4-In-1 BLHeli_32 ESC. Both products feature the latest in hardware and software support for the absolute best performance in any build.

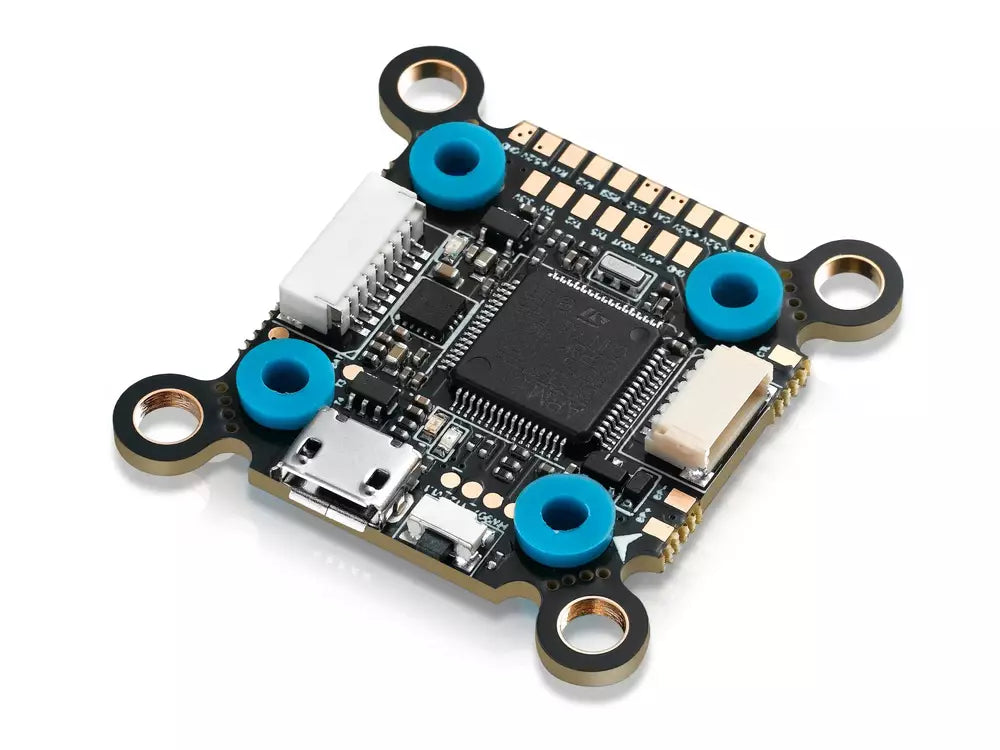

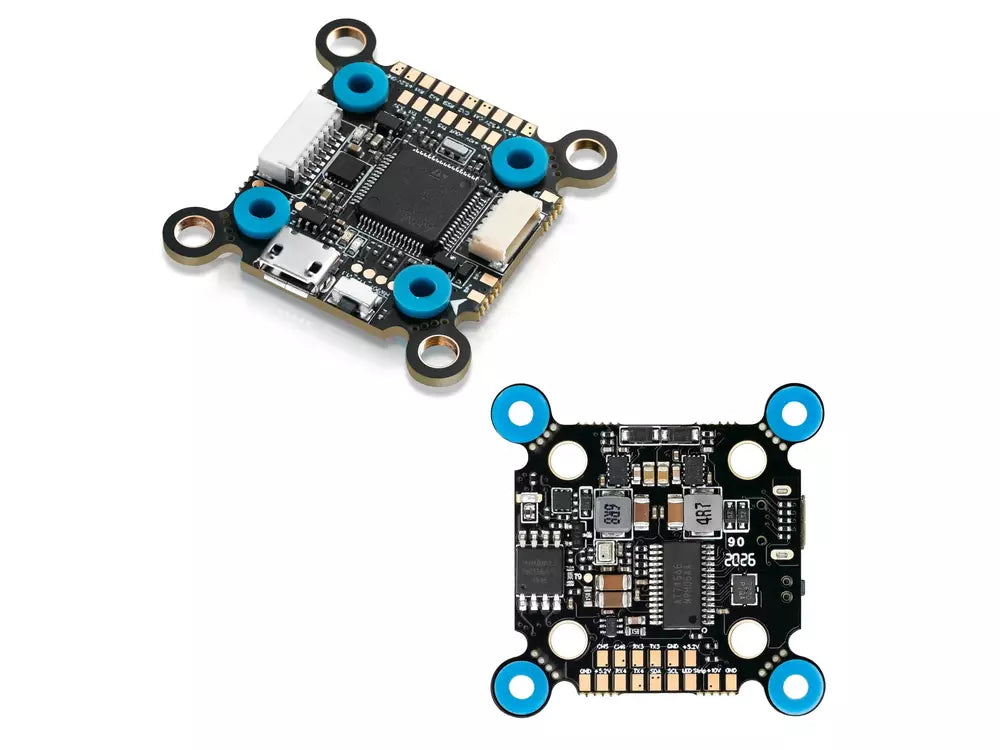

Hobbywing's XRotor F7 Flight Controller features a unique ability to convert from a 30x30 mm mounting to 20x20mm. You can snip off the holes on the corners. This flight controller features the powerful STM32F722 MCU, dual 5V & 12V BEC, built-in OSD chip, plug and play with DJI Digital FPV, and on-board flash memory for blackbox logging. This board was designed with the user in mind, it is easy to work on and stabilized with anti-vibration grommets and convenient plugs for connecting to Hobbywing XRotor 40A 4-In-1 ESC.

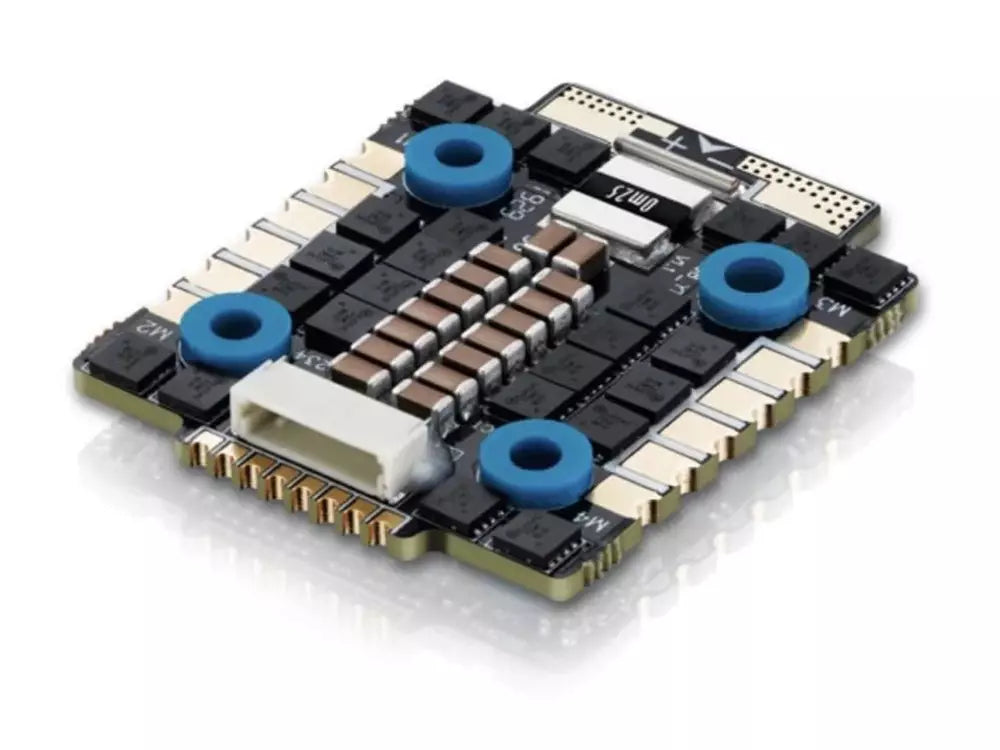

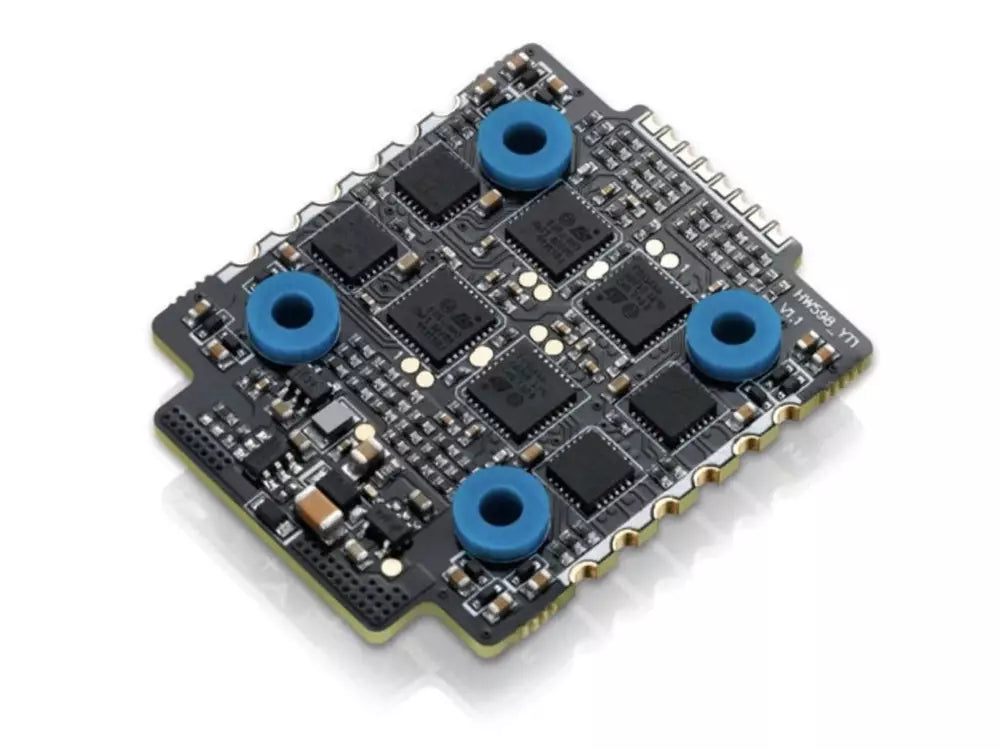

The 40A Micro 4-in-1 ESC comes loaded with the latest 32bit tech, as well as BLHeli32 firmware, DShot1200, Larger FETs, 20x20 soft mount, and a choice of either a plug n' play ESC connector or solder pads for the flight controller.

Flight Controller Specifications:

  • Size: 32x32mm
  • Weight: 3.3g
  • USB Port: MicroUSB
  • BEC: 5V @1.5A; 10V @1.5A
  • LED Control: Supported
  • External Buzzer: Supported
  • Current Monitoring: Supported
  • Voltage Monitoring: Supported
  • OSD: Betaflight OSD
  • Built-in Firmware: HOBBYWING_XROTORF7CONV

4-IN-1 ESC Specifications:

  • LiPo Power Input:  3S-6S
  • Cont. Current:  40Ax4
  • Burst Current:  60Ax4
  • Bec output:  NO
  • Input Wires:  14AWG 100mm
  • Weight:  12g
  • Dimensions:  40x33x5mm
  • Mounting:  20mm x 20mm

1x Hobbywing XRotor F7 Convertible Flight Controller
1x Hobbywing XRotor 40A BLHeli_32 ESC
1x Hardware Set
1x XT60 Connector
1x Cable
