Bandit BR1 ExpressLRS 915MHz Receiver

  • $19.99
    Unit price per


The RadioMaster Bandit BR1 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior vibration resistance.

Bandit BR1 Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity, and exceptional long-range performance. The included T Antenna and Y Antenna designed with high sensitivity are both lightweight and easy to install depending on your application.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.

Radiomaster BR1 ExpressLRS 915MHz Receiver


  • Built-in TCXO oscillator
  • Utilizing 0402 components, superior resistance to vibration
  • Lightweight and compact design

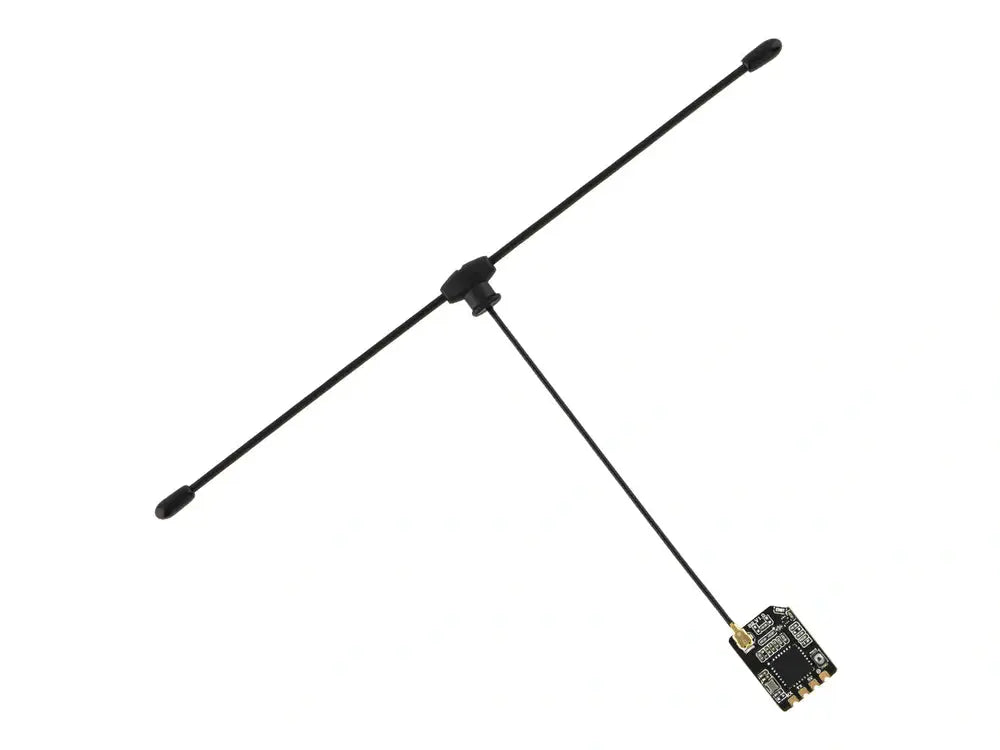

  • High-sensitivity 915/868MHz T Antenna and Y Antenna included


  • Item: Bandit BR1 Expresslrs Receiver
  • Regulatory Domain: FCC915
  • MCU: ESP8285
  • RF Chip: SEMTECH SX1276
  • Telemetry RF Power: 50mw/17dbm
  • Antenna: 915/868MHz T Antenna & Y Antenna
  • Antenna Interface: IPEX1
  • Bus Interface: CRSF
  • Working Voltage: DC 5.0V
  • Dimension: 18*13.8mm

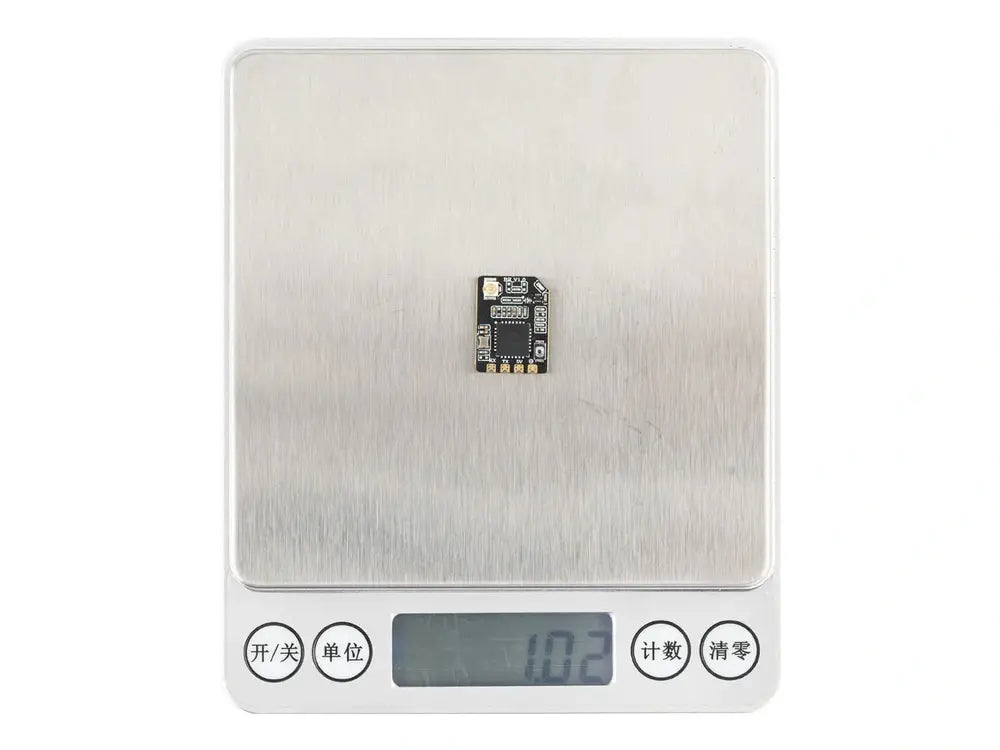

  • Weight: 1.7g (with Y antenna)/2.9g (with T antenna)

Radiomaster BR1 ExpressLRS 915MHz Receiver


Radiomaster BR1 ExpressLRS 915MHz Receiver

Bandit Series

Bandit ExpressLRS RF Module
Bandit Micro ExpressLRS RF Module
Bandit Nano ExpressLRS RF Module
Bandit BR1 Receiver
Bandit BR3 Receiver

Radiomaster Bandit BR1 ExpressLRS 915MHz Receiver

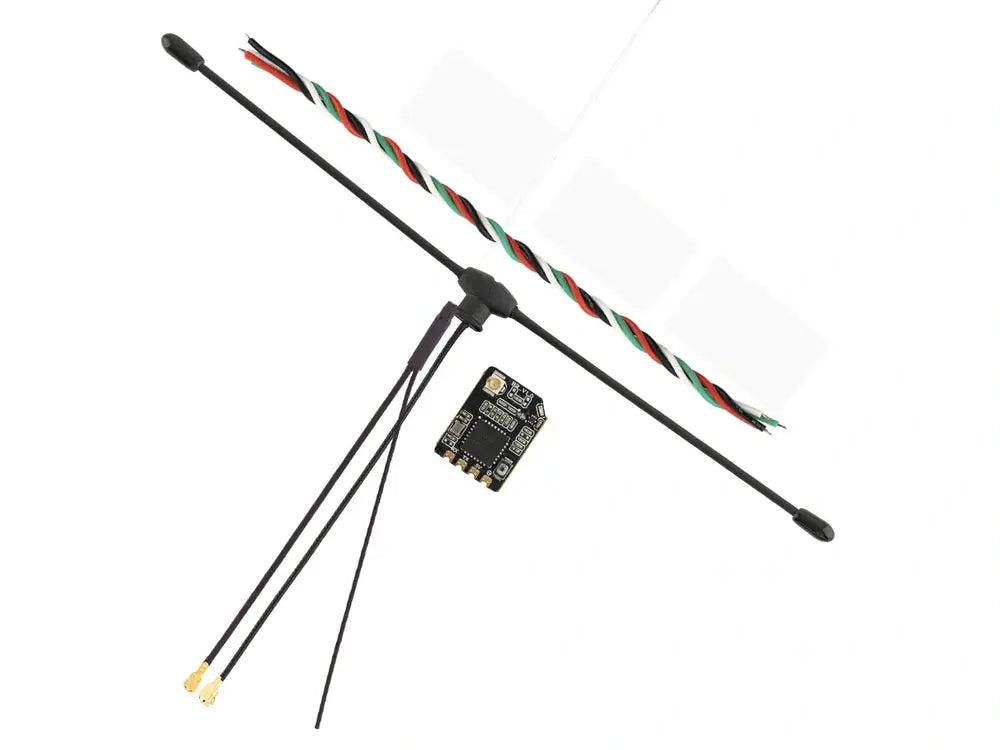

1x Bandit BR1 ExpressLRS 915MHz Receiver
3x Receiver Shrink Tube
1x Y Antenna (Installed on Receiver)
1x T-Antenna
1x CRSF Wire
1x Manual
