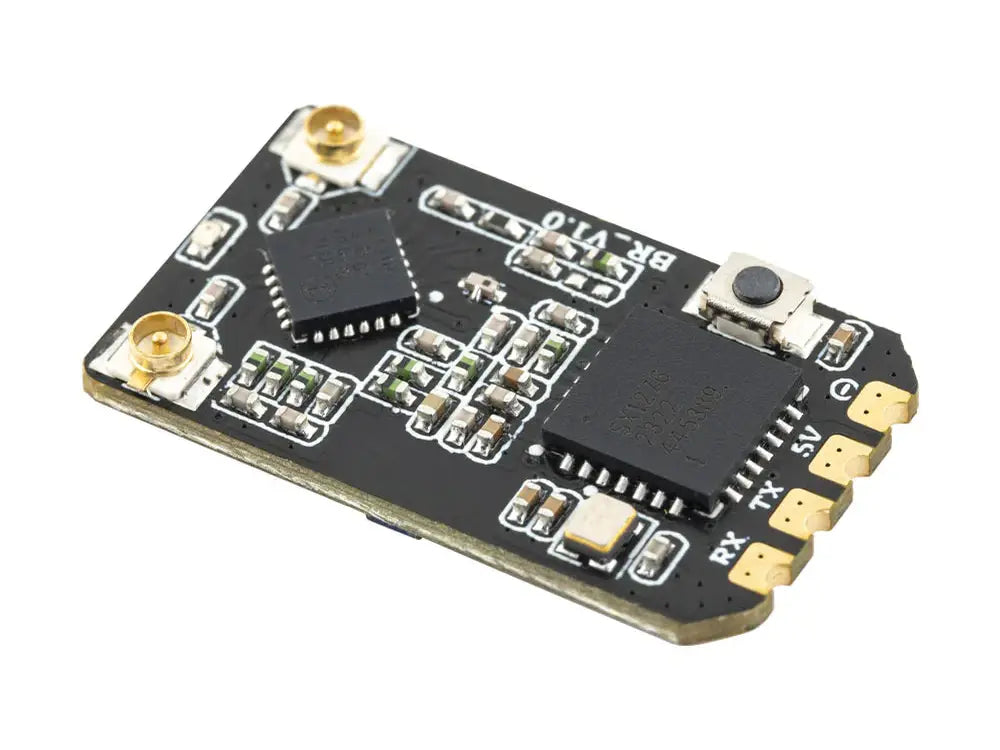

Bandit BR3 ExpressLRS 915MHz Receiver

  • $24.99
    Unit price per



The RadioMaster Bandit BR3 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR3 ExpressLRS receiver also features superior vibration resistance.

Bandit BR3 Expresslrs Receiver features a huge 500mw of telemetry output making it ideal for long-range applications. The ESP8285 MCU and SX1276 RF chip are renowned for low latency, high sensitivity, and exceptional long-range performance. The included T Antenna is optimized for long-range performance.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR3 Expresslrs Receiver is ideal for FPV freestyle or Long Range.

Radiomaster Bandit BR3 ExpressLRS 915MHz Receiver

Features:

  • Maximum 500mW telemetry RF power
  • Built-in TCXO oscillator
  • Utilizing 0402 components, superior resistance to vibration
  • Dual >915/868MHz T Antenna for improved signal stability and range

Specifications:

  • Item: Bandit BR3 ExpressLRS Receiver
  • Regulatory Domain: FCC915
  • MCU: ESP8285
  • RF Chip: SEMTECH SX1276
  • Telemetry RF power: 100mW - 500mW LUA Adjustable

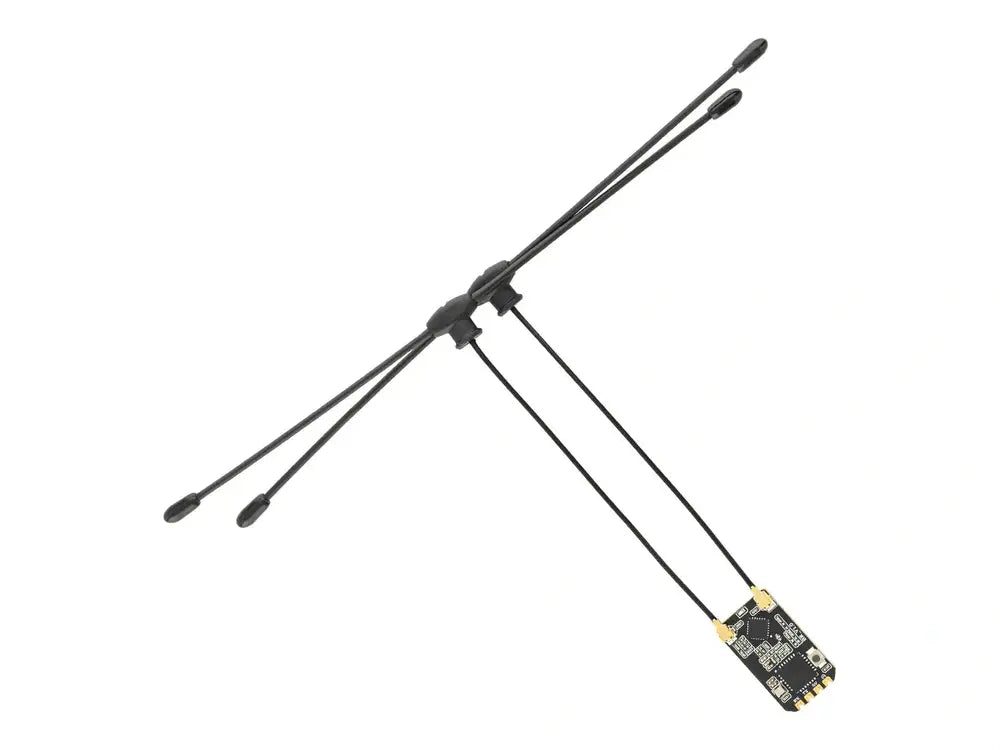

  • Antenna: 915/868MHz T Antenna
  • Antenna Interface: IPEX1
  • Bus Interface: CRSF
  • Working Voltage: DC 5.0V
  • Dimension: 24*14.2mm

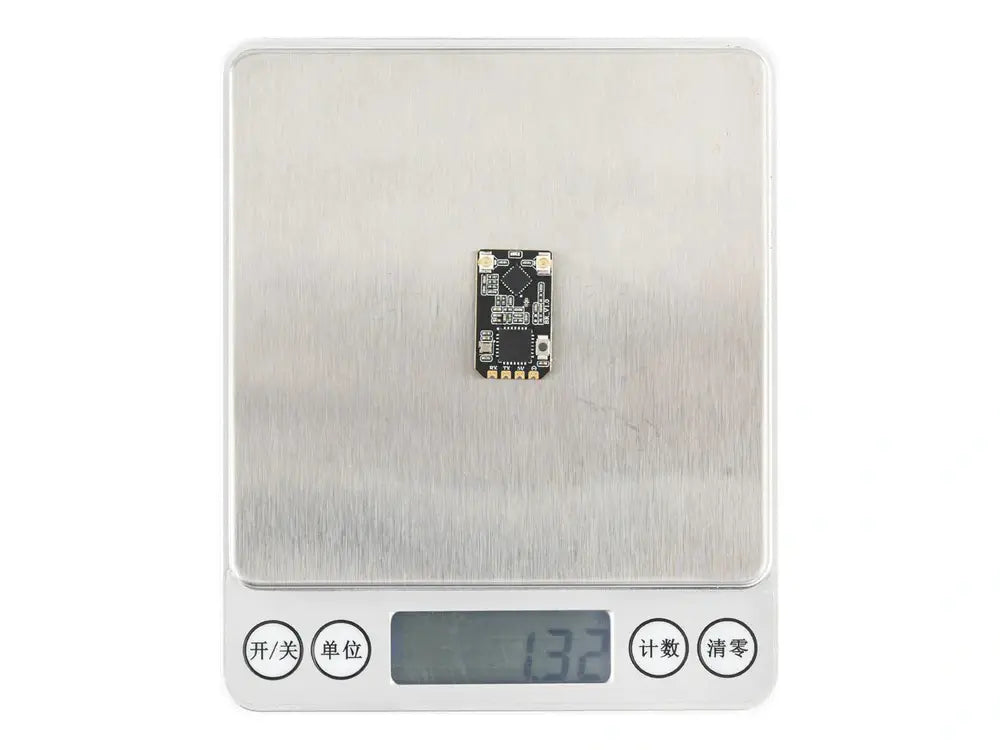

  • Weight: 5.5g (with antennas)

Radiomaster Bandit BR3 ExpressLRS 915MHz Receiver

Dimensions:

Radiomaster Bandit BR3 ExpressLRS 915 MHz Receiver

Bandit Series

Bandit BR3 ExpressLRS 915MHz Receiver

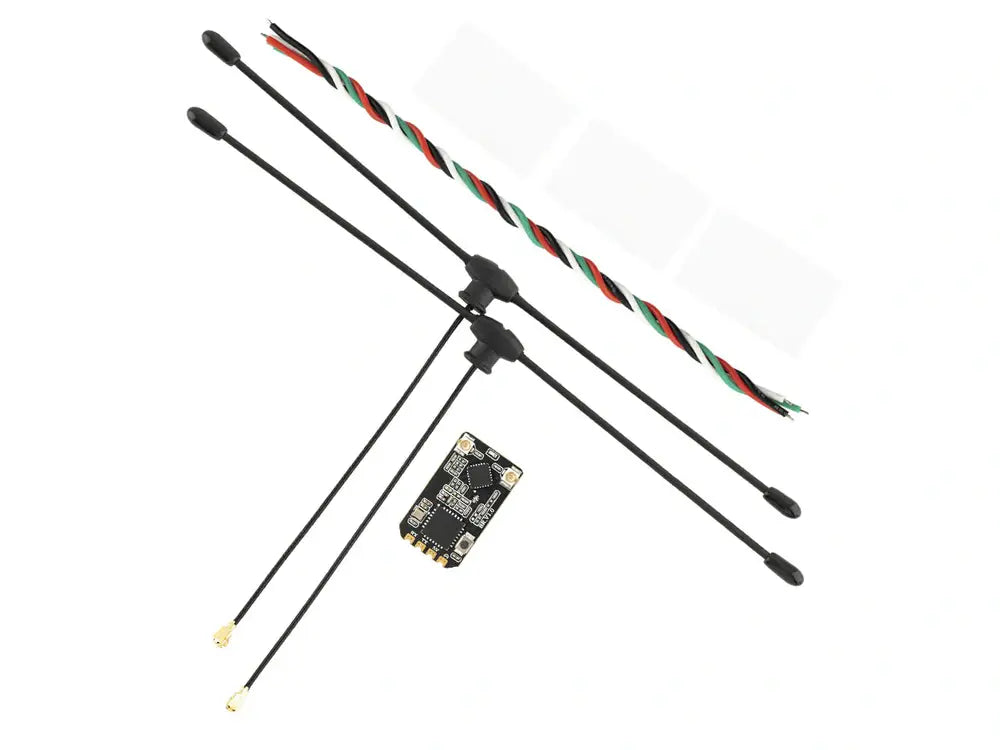

Includes:
1x Bandit BR3 ExpressLRS 915MHz Receiver
2x T Antenna (Installed on Receiver)
3x Receiver Shrink Tube
1x CRSF Wire
1x Manual
