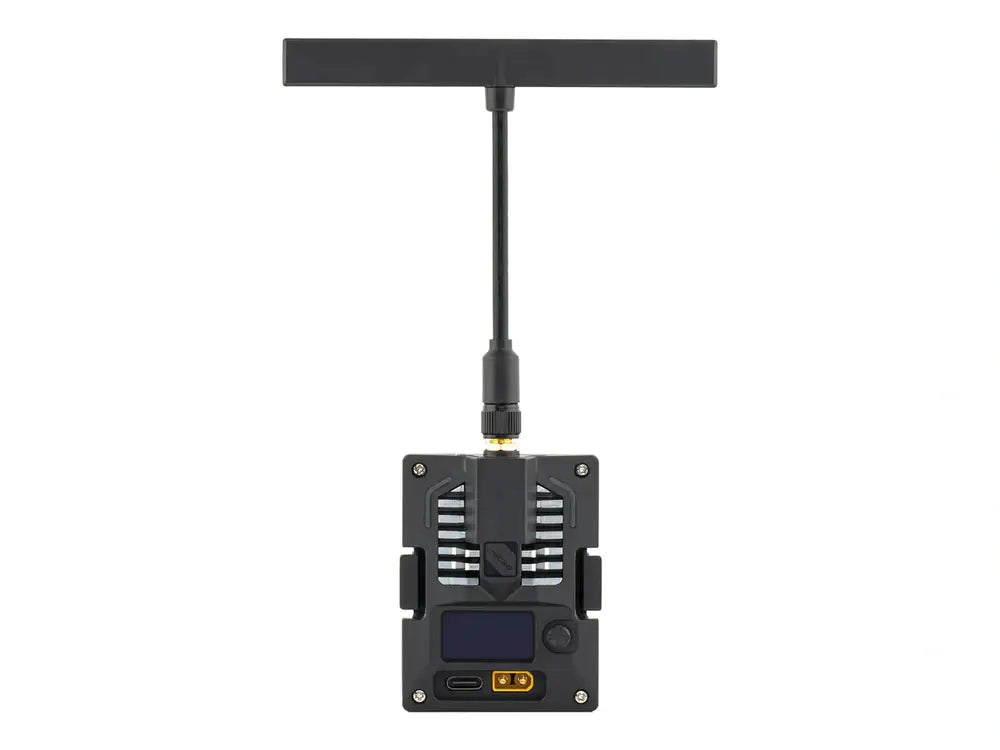

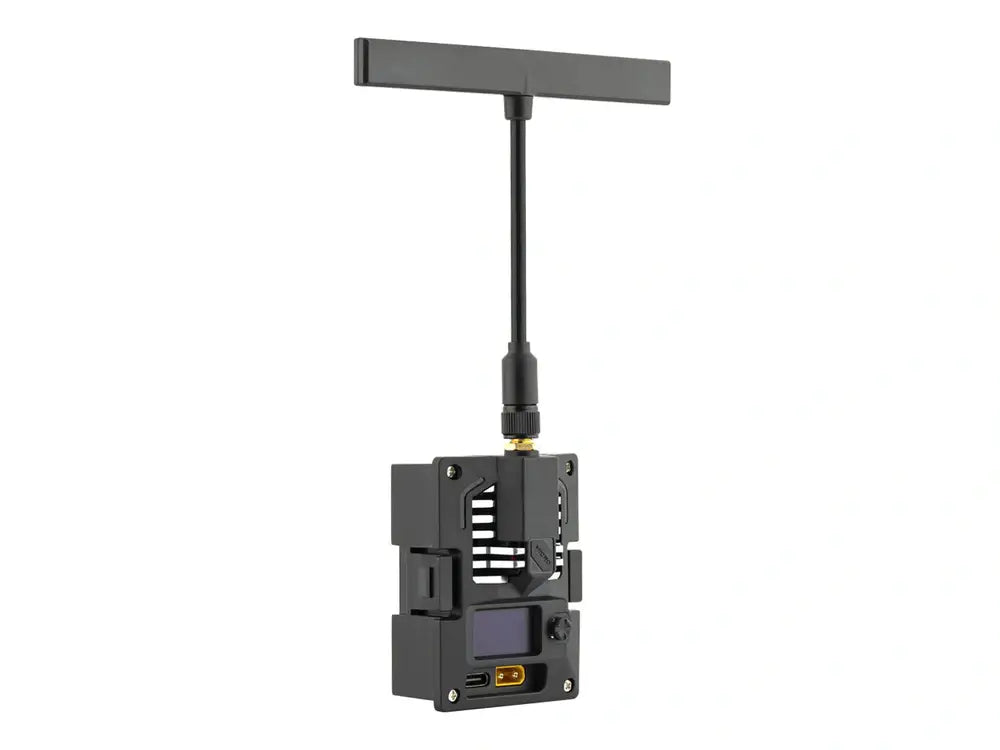

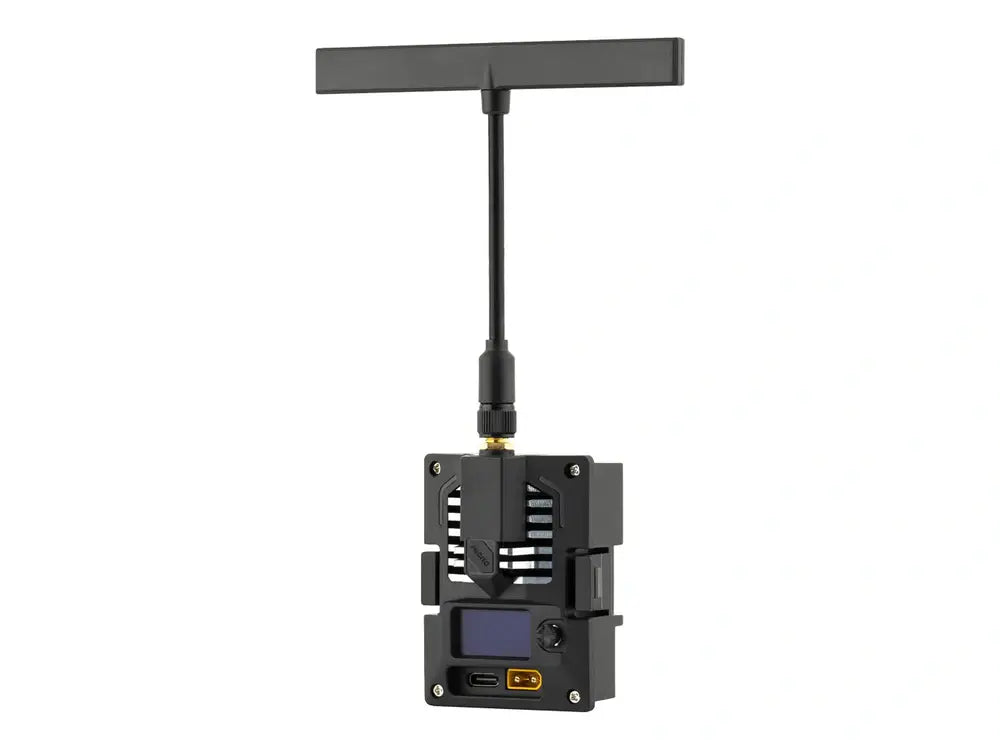

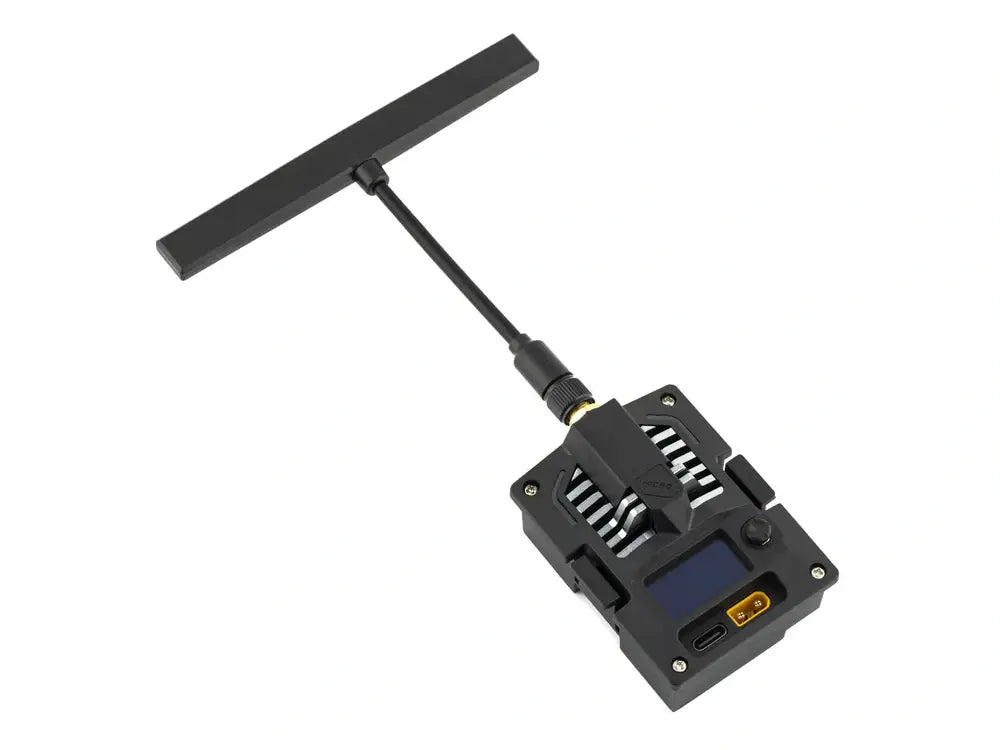

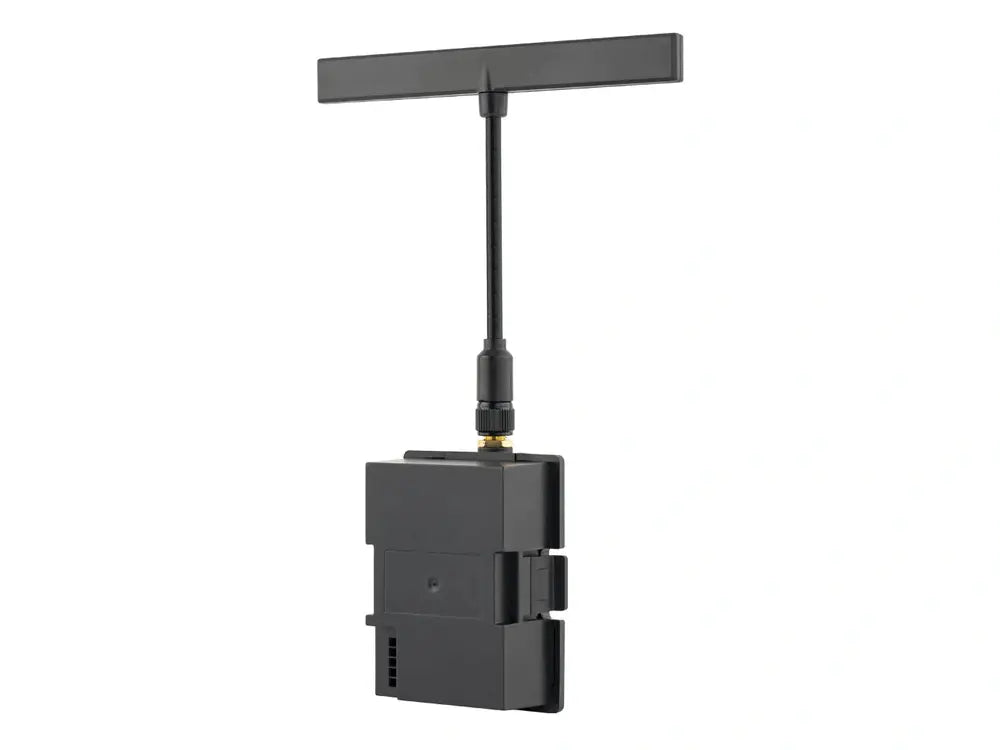

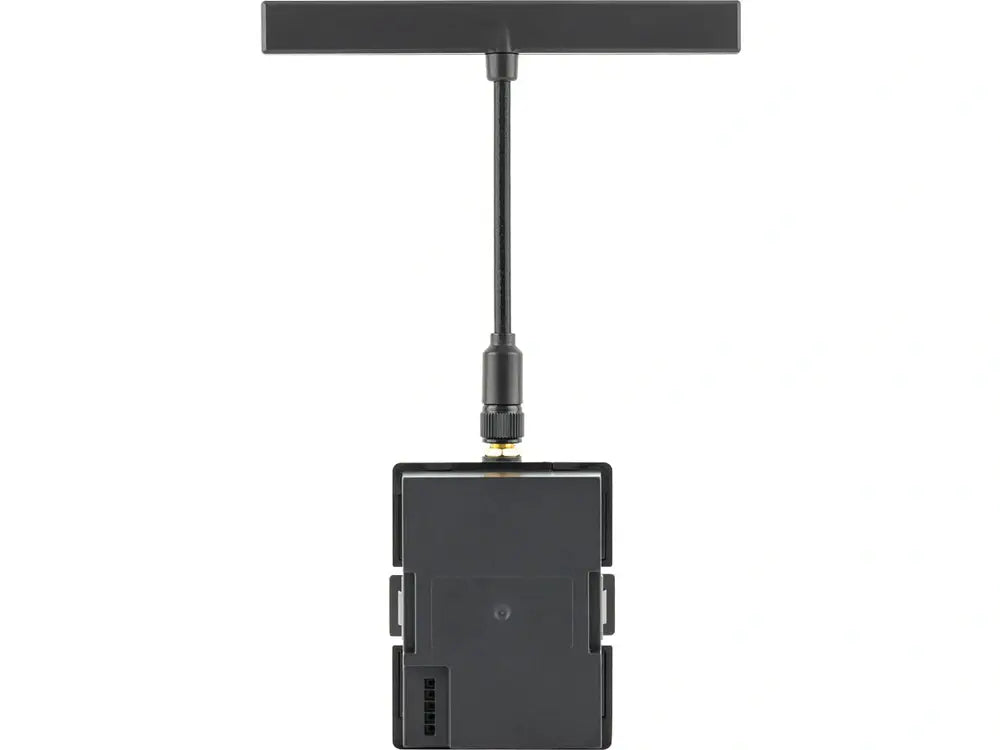

Bandit Micro ExpressLRS 915MHz RF Module
After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit Micro ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range drone and UAV applications.
Features:
- Up to 1 Watt power output
- Packet rates up to 200Hz
- Optimized circuitry for ultra-low power consumption
- Built-in TCXO oscillator
- Low noise, high comfort
- High contrast OLED display
- Innovative convection cooling design
- Wifi and Bluetooth support
- Built-in ExpressLRS backpack
- 5 Directional nav key
- 915/868MHz T Antenna included
- With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio
Specifications:
- Item: Bandit Micro ExpressLRS RF Module
- Regulatory Domain: FCC915
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF Chip: SEMTECH SX1276
- Refresh Rate Min/Max: 25Hz/200Hz
- RF Output Power: 1000mW/30dBm
- Micro standard 5pin connector
- Built-in OLED screen
- XT30 Power Supply Voltage: DC 6V ~ 16.8V

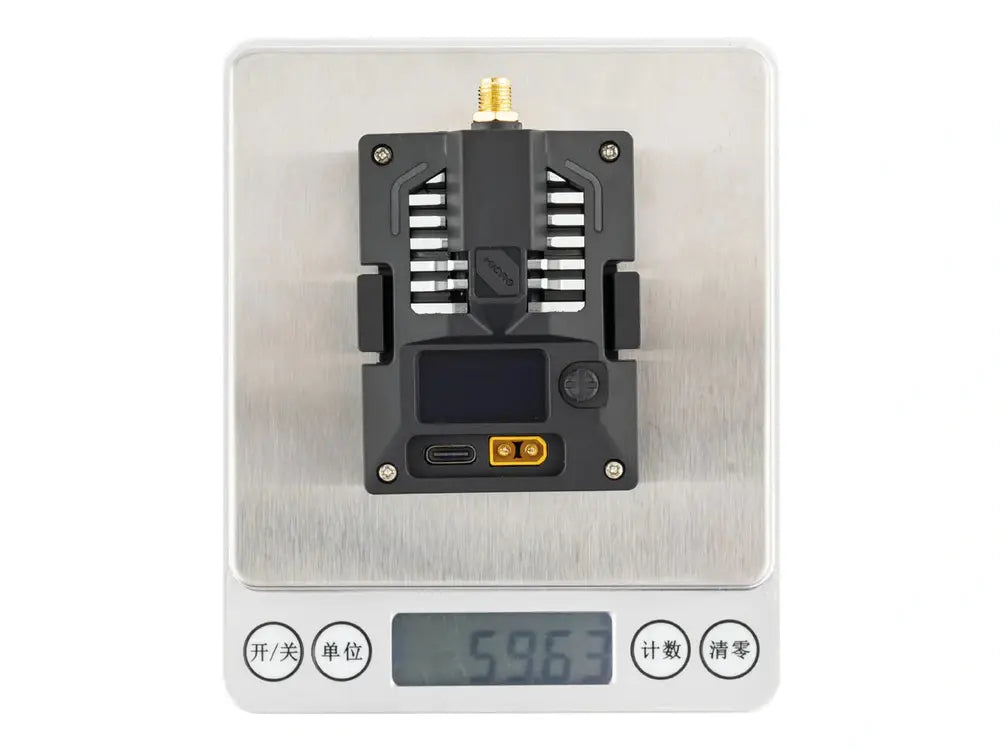

- Weight: 78.0grams (with T antenna)
- Dimension: 64.1*49.6*34.1mm

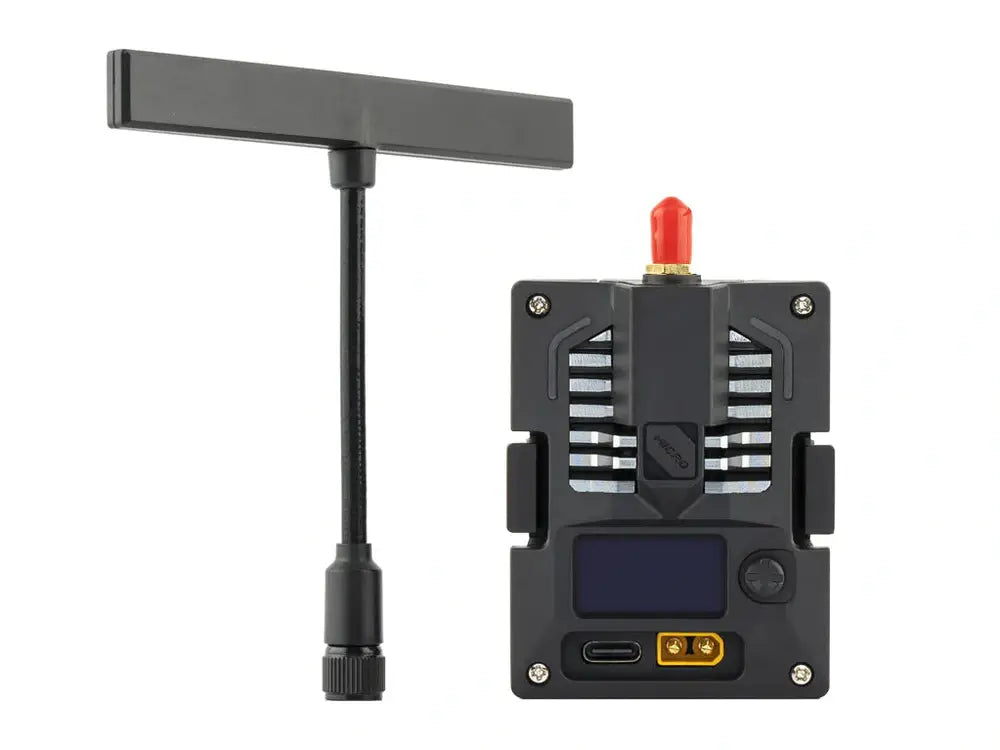

Intuitive Control at Your Fingertips
The Bandit Micro ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.
But Wait... There's More!
The Bandit Micro has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Micro as a 1000mW Telemetry receiver for ultra long range flights.
The Ideal Solution for Demanding Applications
Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit Micro ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.
Dimensions:
Bandit Series
- Bandit ExpressLRS RF Module
- Bandit Micro ExpressLRS RF Module
- Bandit Nano ExpressLRS RF Module
- Bandit BR1 Receiver
- Bandit BR3 Receiver

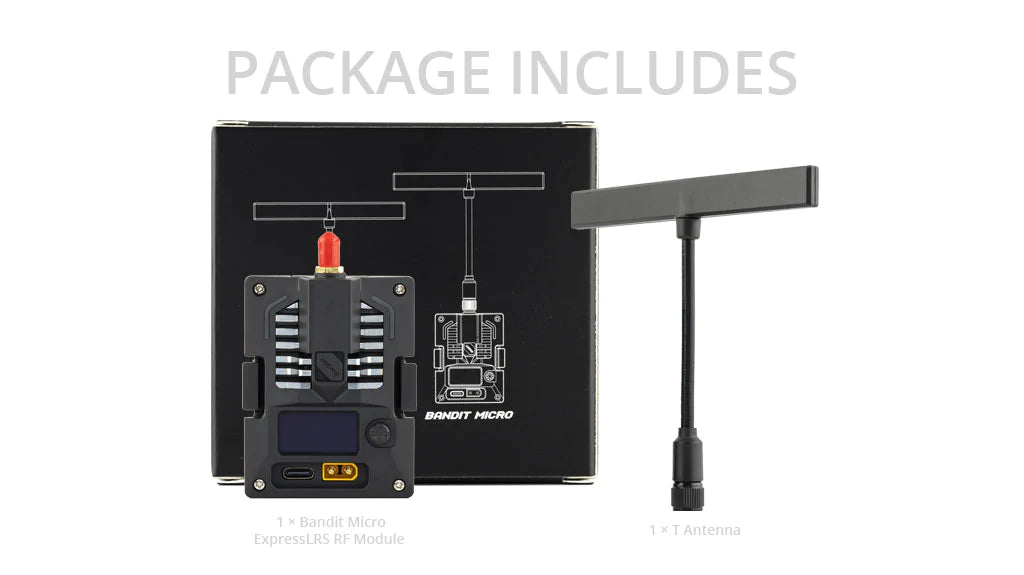

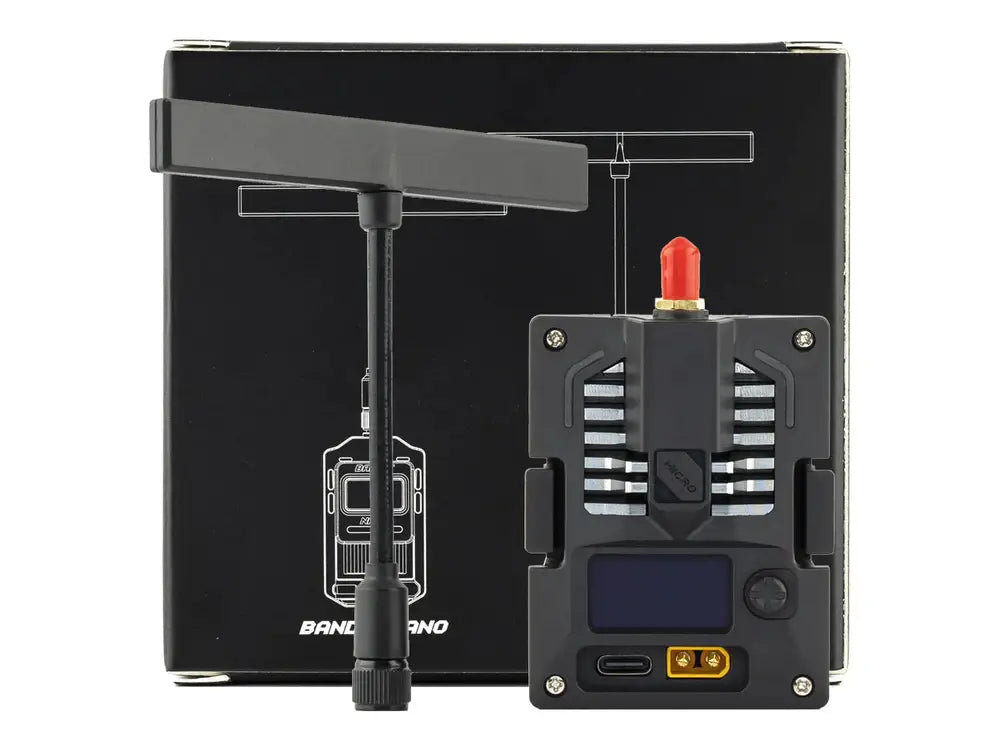

Includes:
1x Bandit Micro ExpressLRS 915MHz RF Module
1x 900MHz T Antenna
1x Manual
